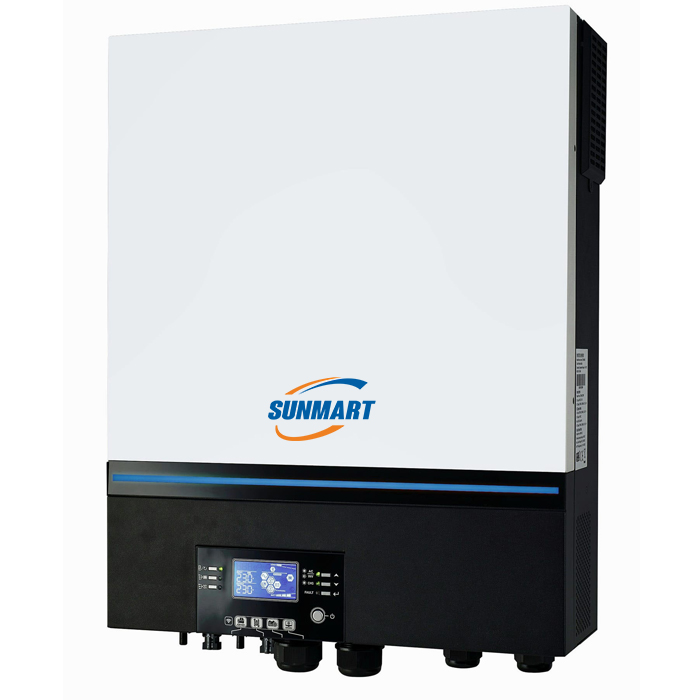

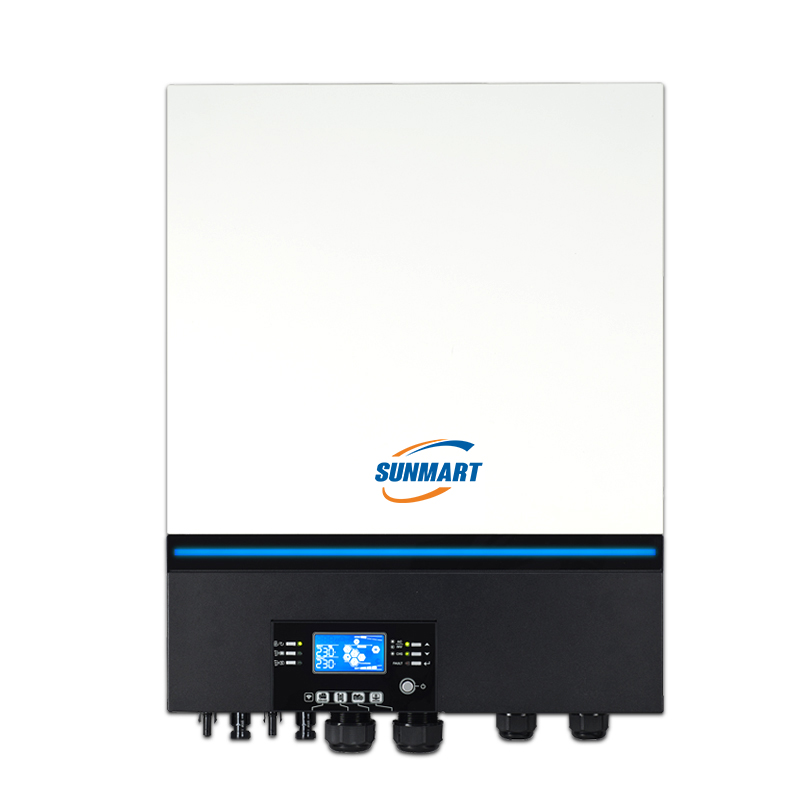

Off-Grid Solar Hybrid Inverter Professional Solution
| Model | MAX 11000-48 |
|---|---|
| RATED POWER | 11000VA / 11000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (PC); 90-280 VAC (Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation | 230 VAC ± 5% |
| Surge Power | 22000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500 VDC |
| Max. PV Array Power | 11000W (5500W * 2) |
| MPP Range @ Operating Voltage | 90~450 VDC |
| Max. Charge Current | 150A (Solar/AC) |
| PHYSICAL / ENVIRONMENT | |
| Dimension (D x W x H) mm | 147.4 x 432.5 x 553.6 |
| Net Weight (kgs) | 18.4 |
| Operating Temperature | -10°C to 50°C |

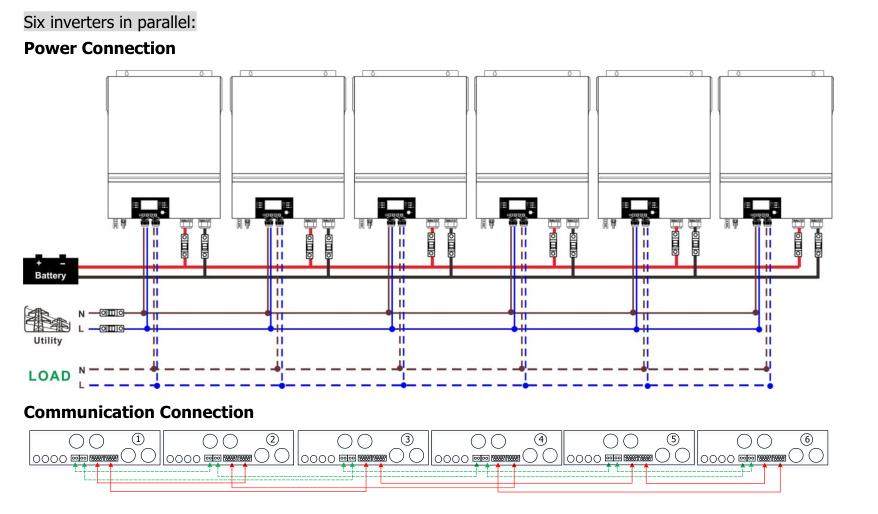

Parallel in Single Phase:

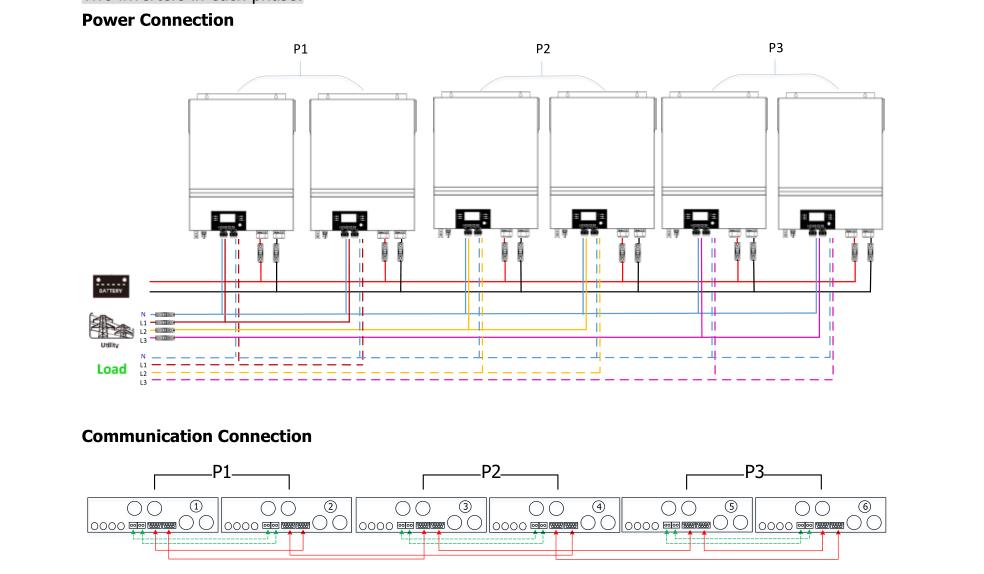

Parallel in Three Phase:
Over 10 years of expertise in production and installation of solar power systems, serving clients in more than 20 countries.
Advanced R&D team providing custom configurations and fast technical problem-solving for stable performance.
Two specialized factories utilizing advanced production lines and strict international quality control standards.
Direct manufacturer providing market-leading products designed to create a win-win situation for our partners.
High-efficiency supply chain management ensuring rapid production and prompt shipping schedules.
Professional engineering support with a 2-year warranty on inverters and fast replacement parts service.
Yes, this inverter features a battery-independent design, allowing it to operate directly from solar or grid power under specific conditions.

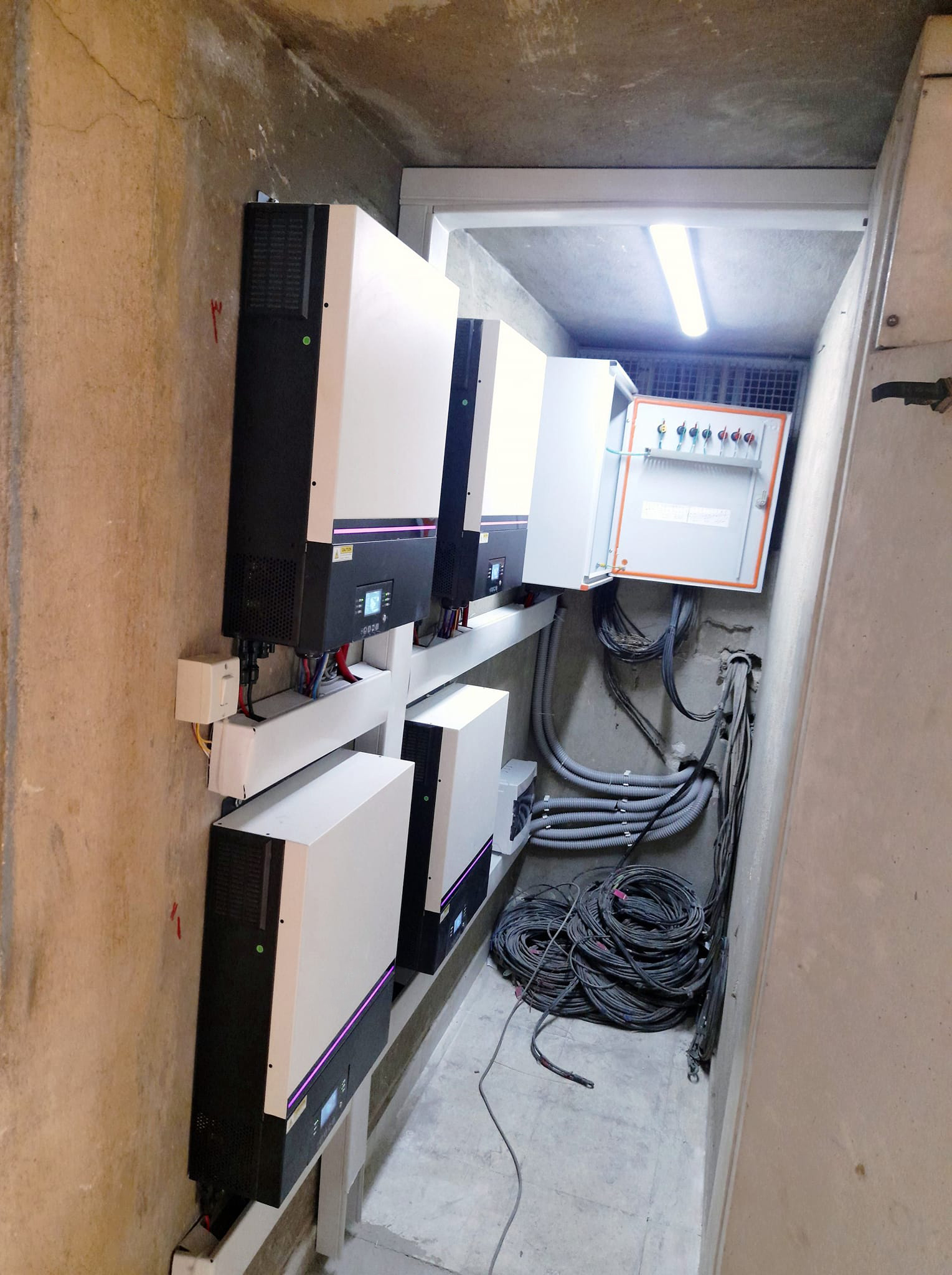

This model supports parallel operation for up to 6 units, allowing for significant power expansion in both single-phase and three-phase configurations.
Yes, it has built-in WiFi functionality. You can monitor your solar system status via dedicated Android or iOS applications.

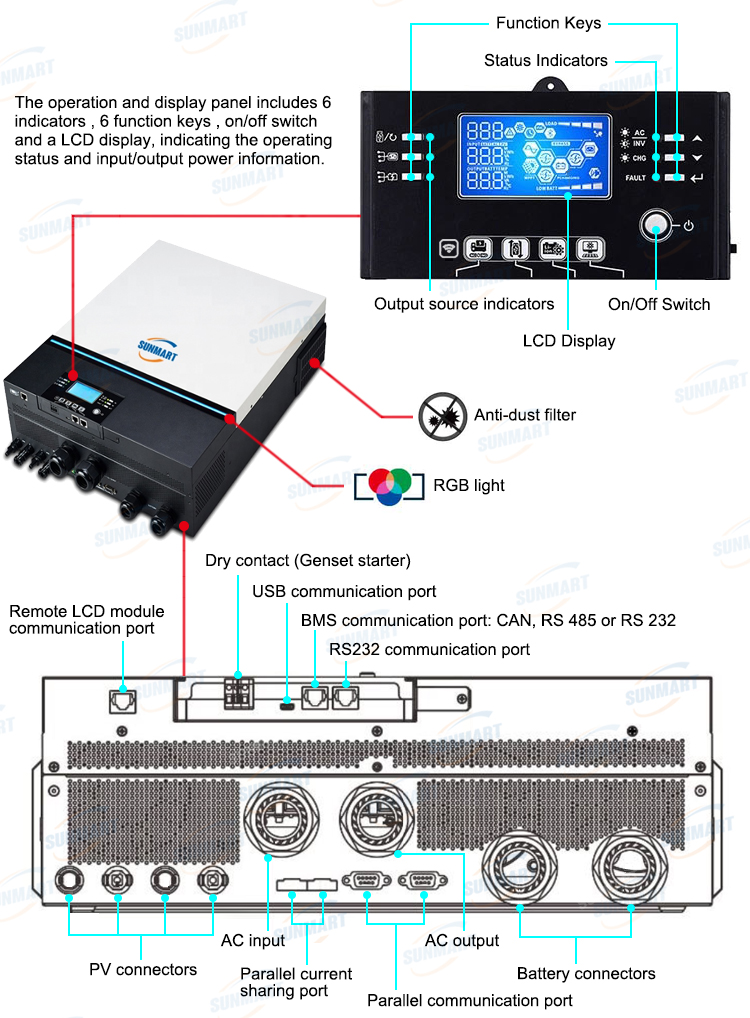

It is designed for 48VDC systems and includes a reserved communication port (RS485, CAN-BUS, or RS232) specifically for BMS integration with lithium batteries.
The inverter supports a maximum PV array power of 11000W (dual 5500W inputs) with a maximum open-circuit voltage of 500VDC.
The solar inverter comes with a 2-year warranty, including professional technical support and free PCB replacements via express delivery if required.
