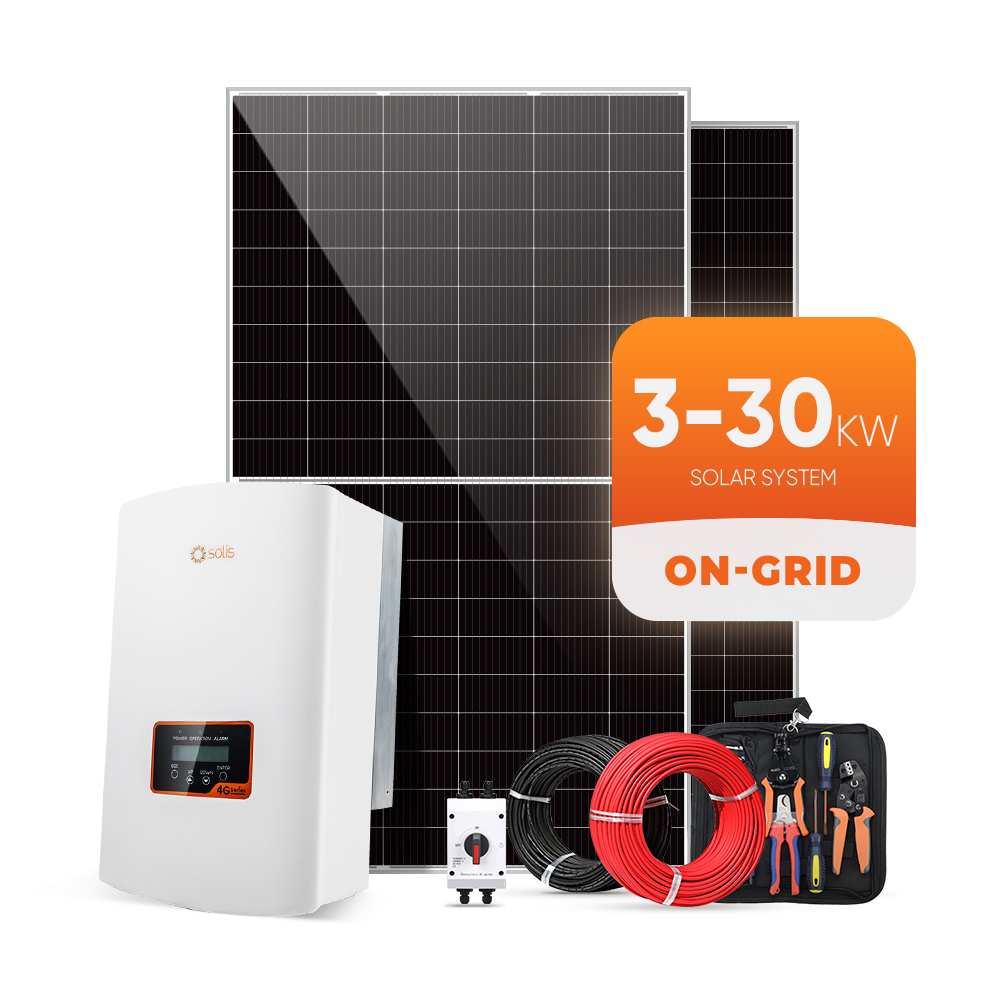

Complete Set 5-30KW Home on Grid Solar Panel System PV Module Inverter Mounting Kit for House Roof

1 / 5

Complete Set 5-30KW Home on Grid Solar Panel System PV Module Inverter Mounting Kit for House Roof

Send Inquiry

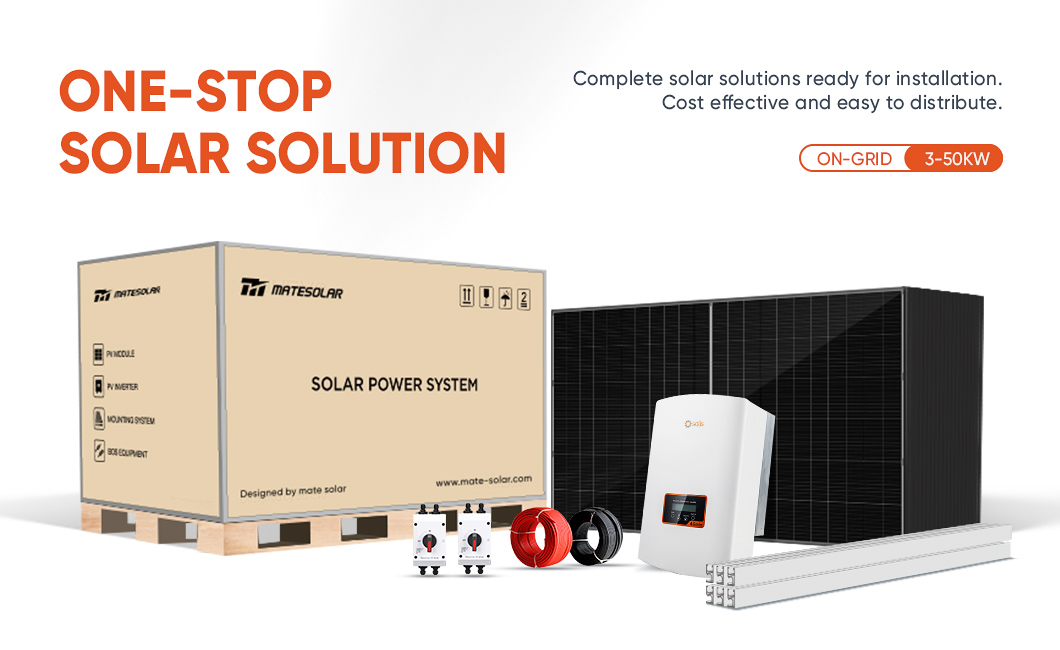

Product Description

📦 Product Description

🛡️ Warranty

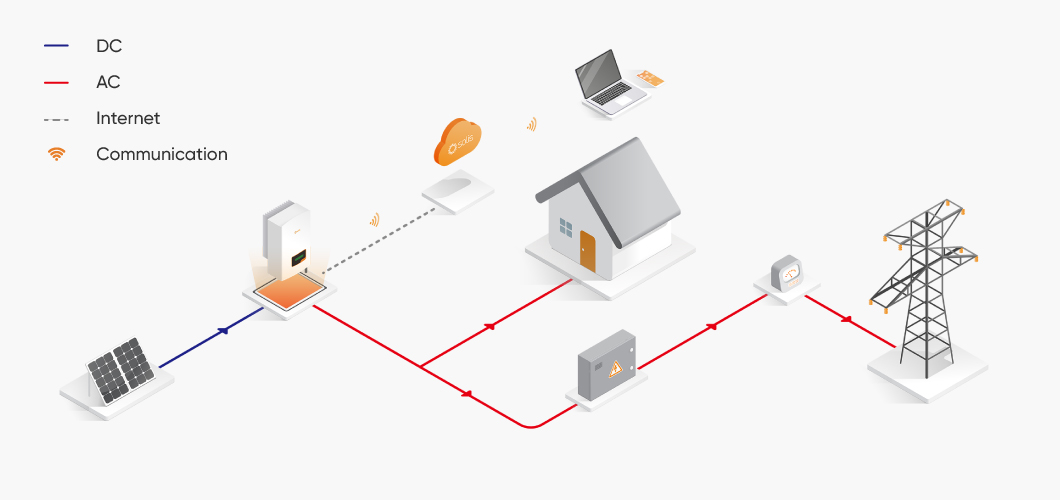

⚙️ How it works

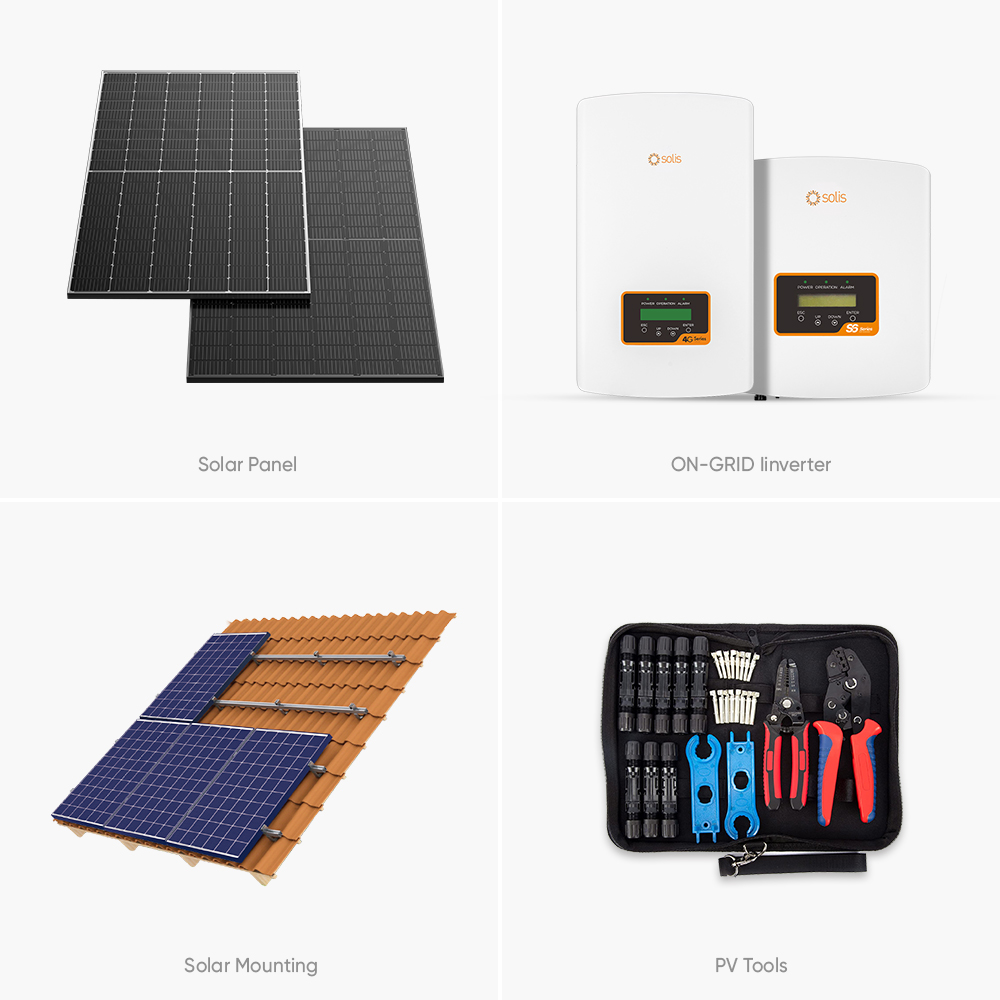

📋 What's Included: System Specifications

Model	MT-3KW-ON	MT-5KW-ON	MT-10KW-ON
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Pieces
On Grid Solar Inverter	S6-GR1P3K	S6-GR1P5K	Solis-1P10K-4G
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

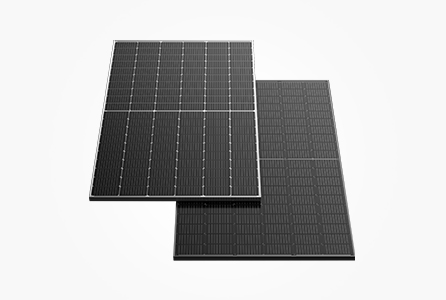

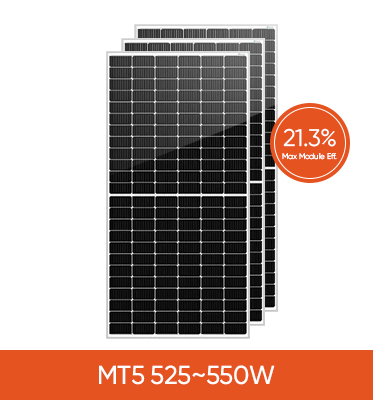

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm

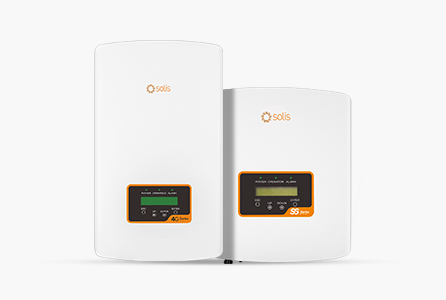

On Grid Solar Inverter

Max. efficiency 98.7%.
Wide voltage range and low startup voltage.
THDi < 1.5%, low harmonic distortion against grid.
Multiple protection levels.
2 MPPT design with precise MPPT algorithm.
Integrated Export Power Manager (EPM).

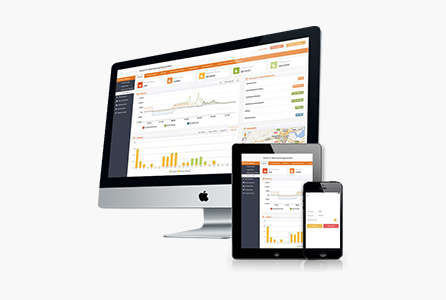

Monitoring System

Smart I-V curve scan, system health report, and string-level fault finding. Manage multiple types of systems across residential, commercial, and utility-scale plants. Enables seamless connection with inverters, power managers, and weather stations.

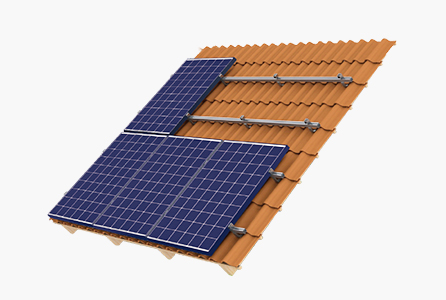

PV Mounting System

Rails: AI6005 & SUS304 Bolt.
Clamps: Mid & End Clamps (35, 40, 45, 50mm).
Options: L Foot Asphalt Shingle Mount, Hanger Bolts, Cable Clips, and Grounding Lugs.

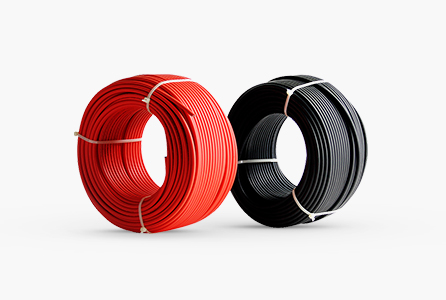

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 600VDC/1000VDC (TUV).
Rated Current: 55A, 70A.
Lifetime: ≤ 25 Years.

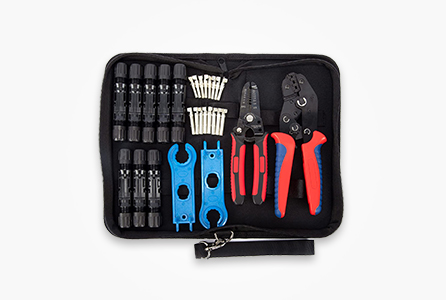

PV Tools

Complete set including Wire Cable Cutter & Stripper, MC3/MC4 Crimper, and MC4 Connectors Assembly/Disassembly Tooling.

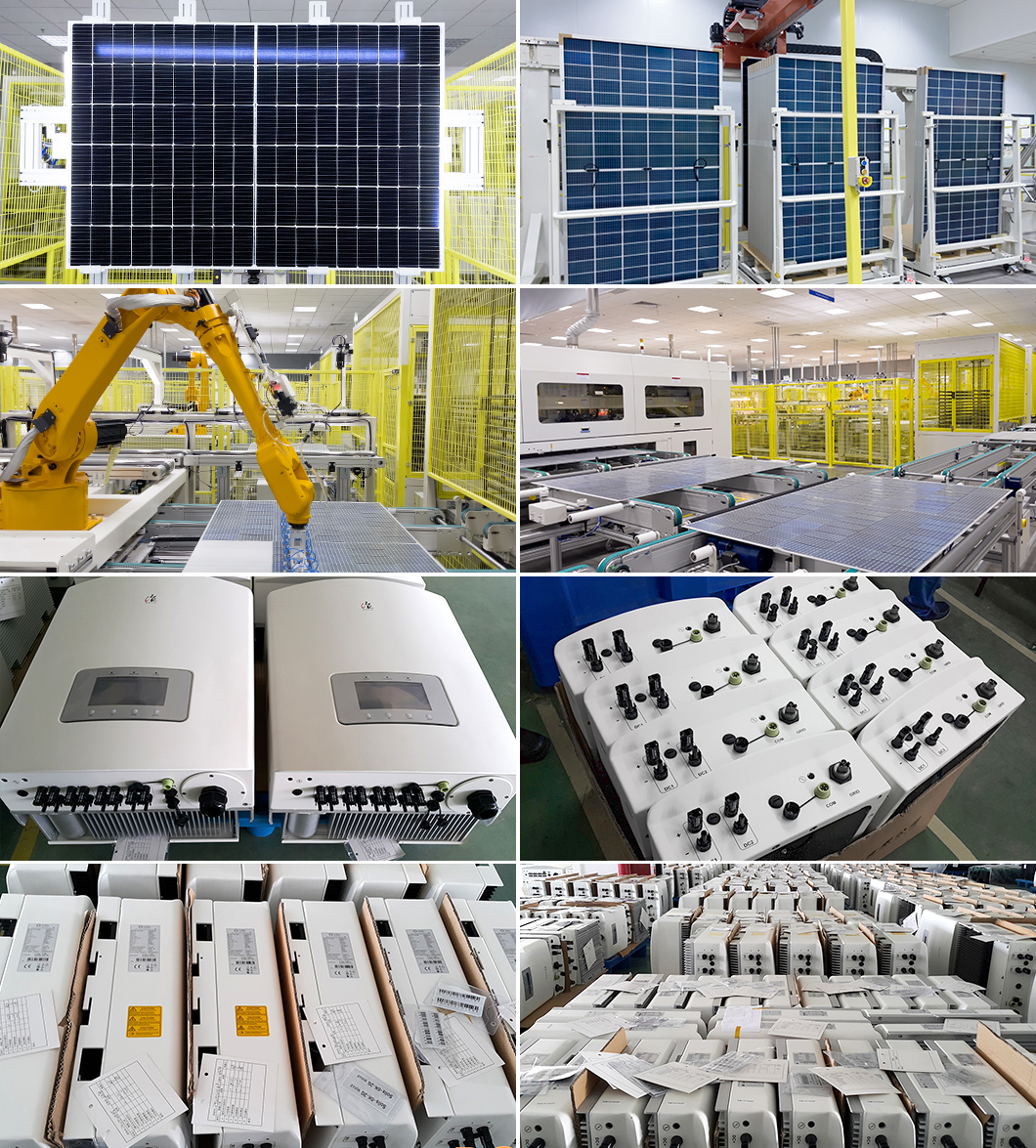

🏭 Factory & Production Line

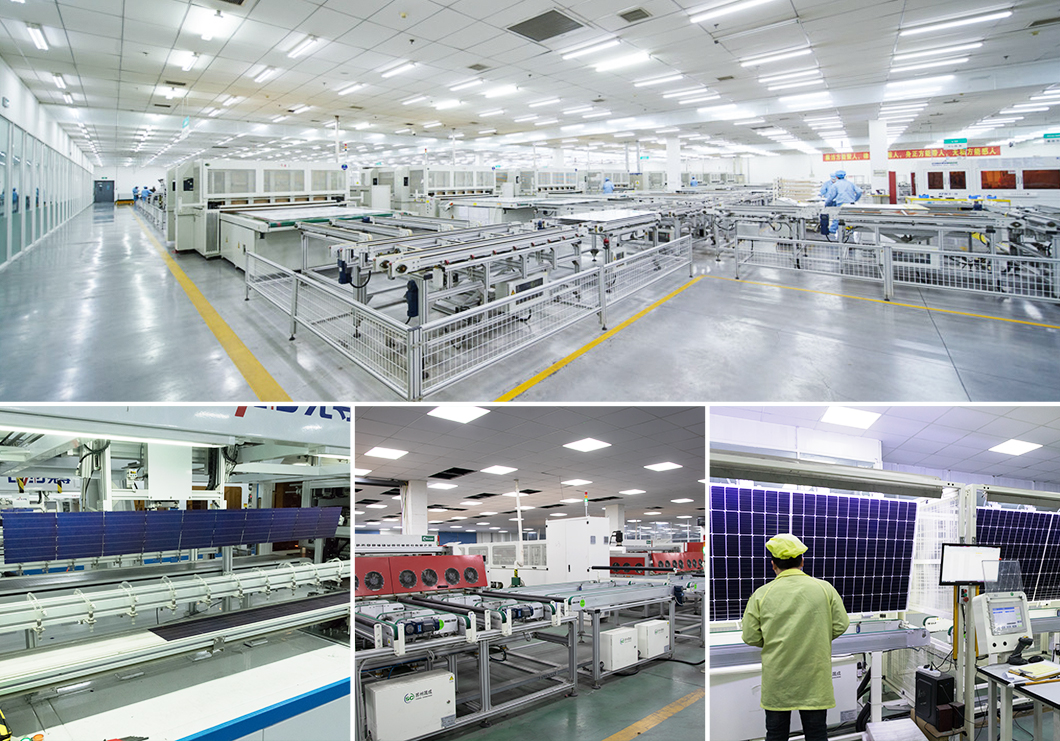

🛠️ Solar Panel Production Line

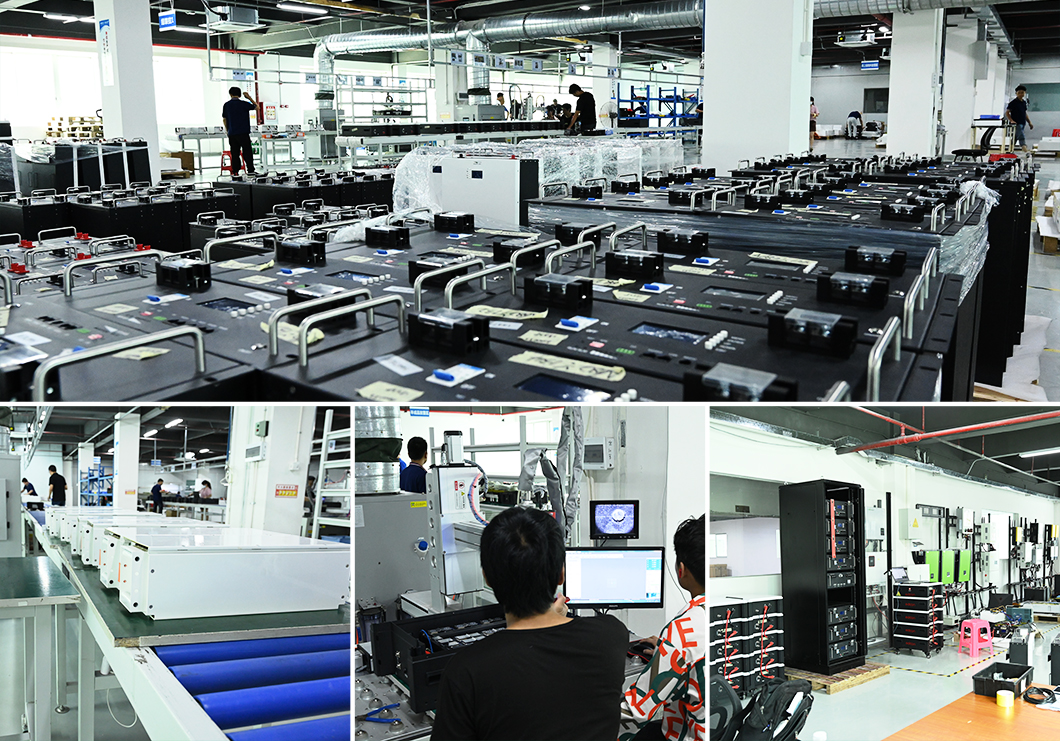

🔋 Lithium Battery Production Line

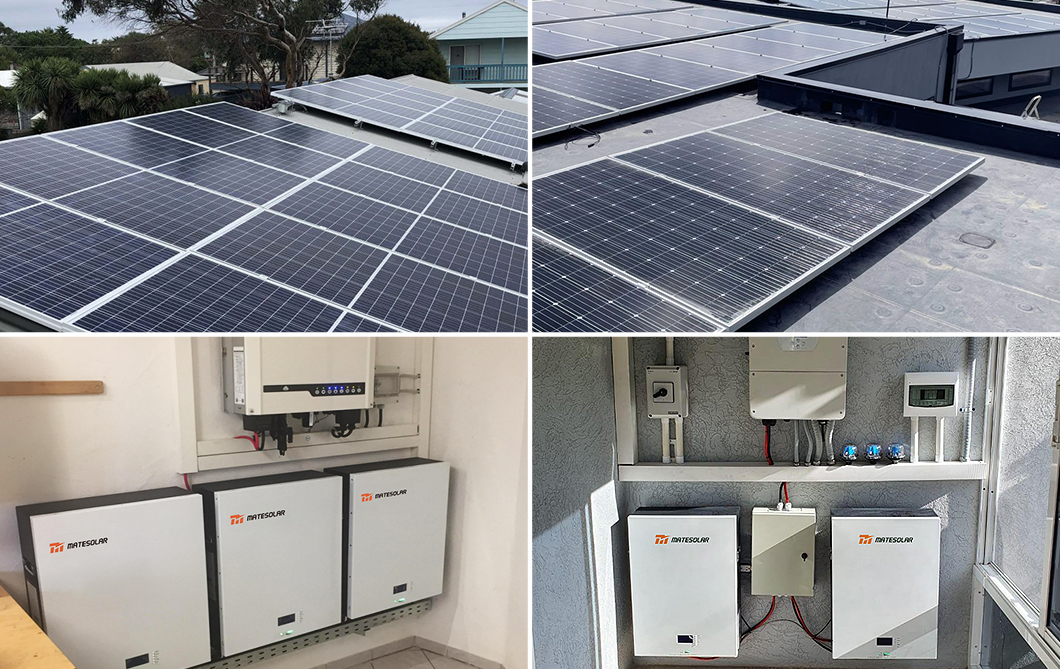

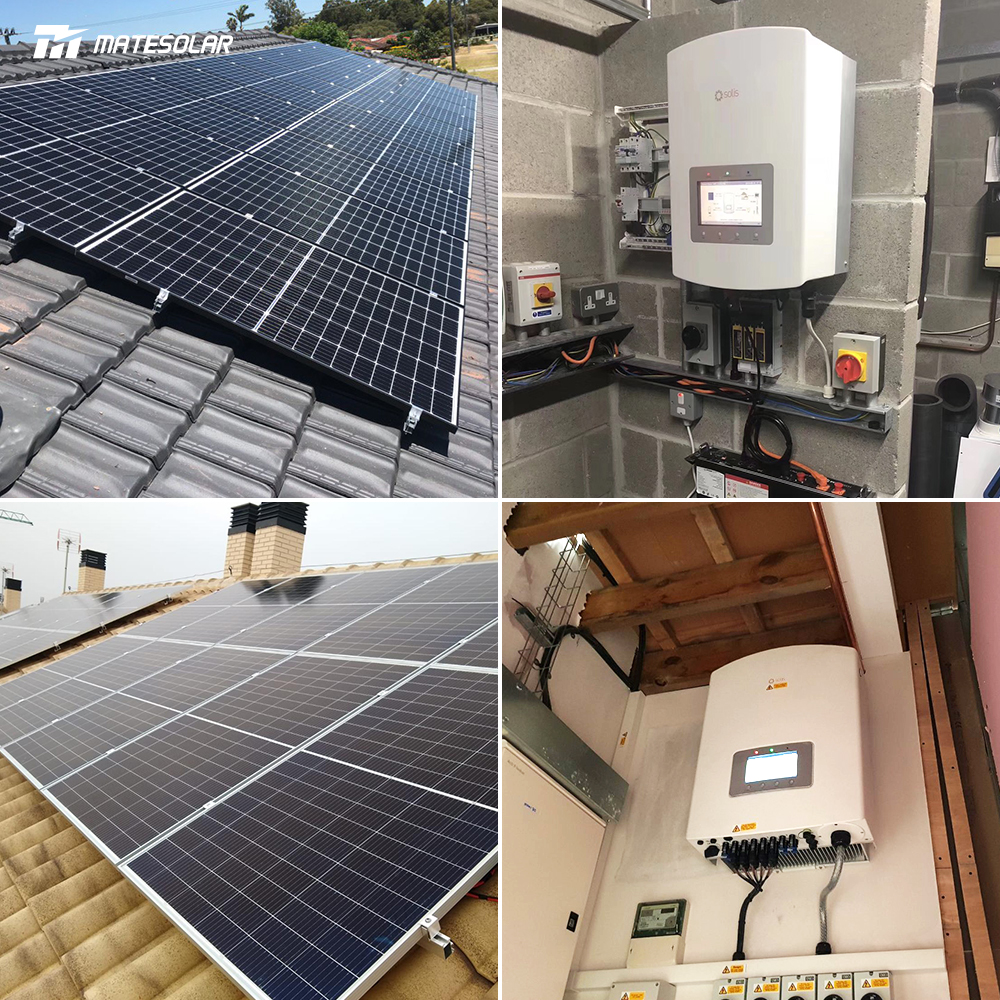

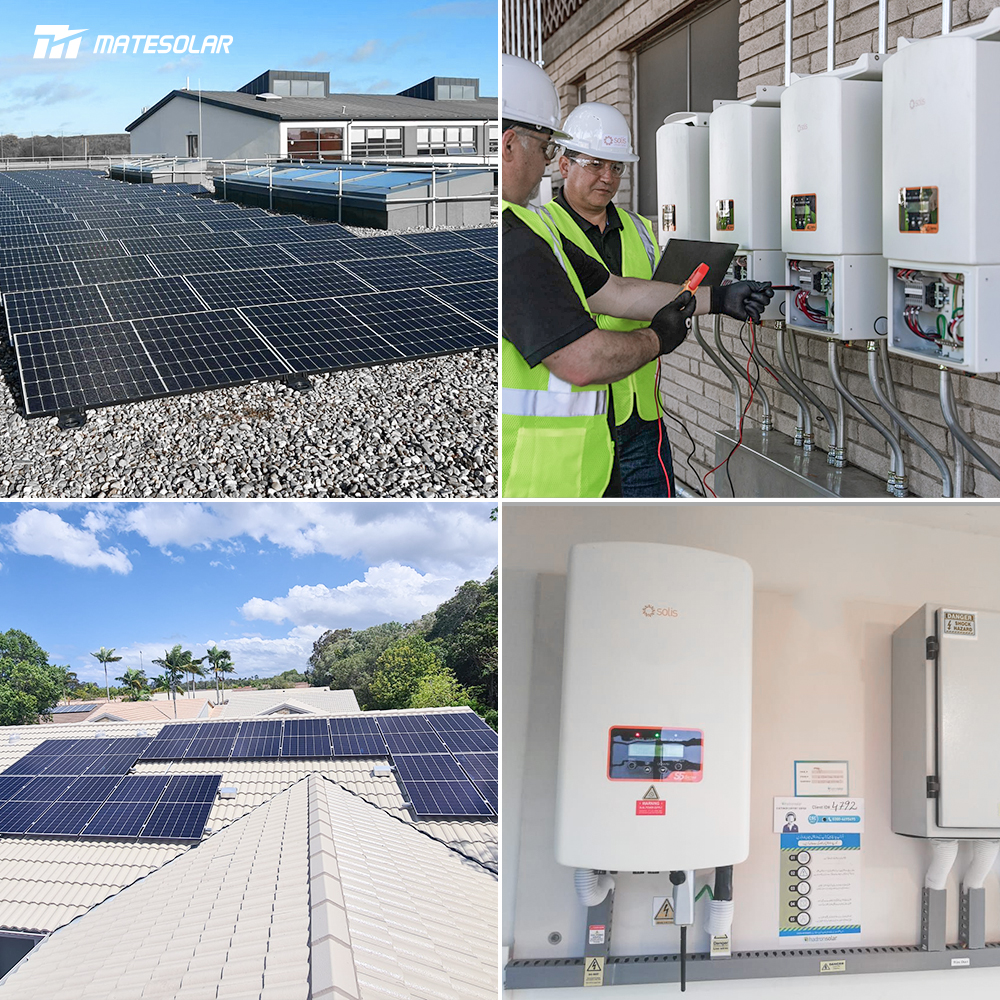

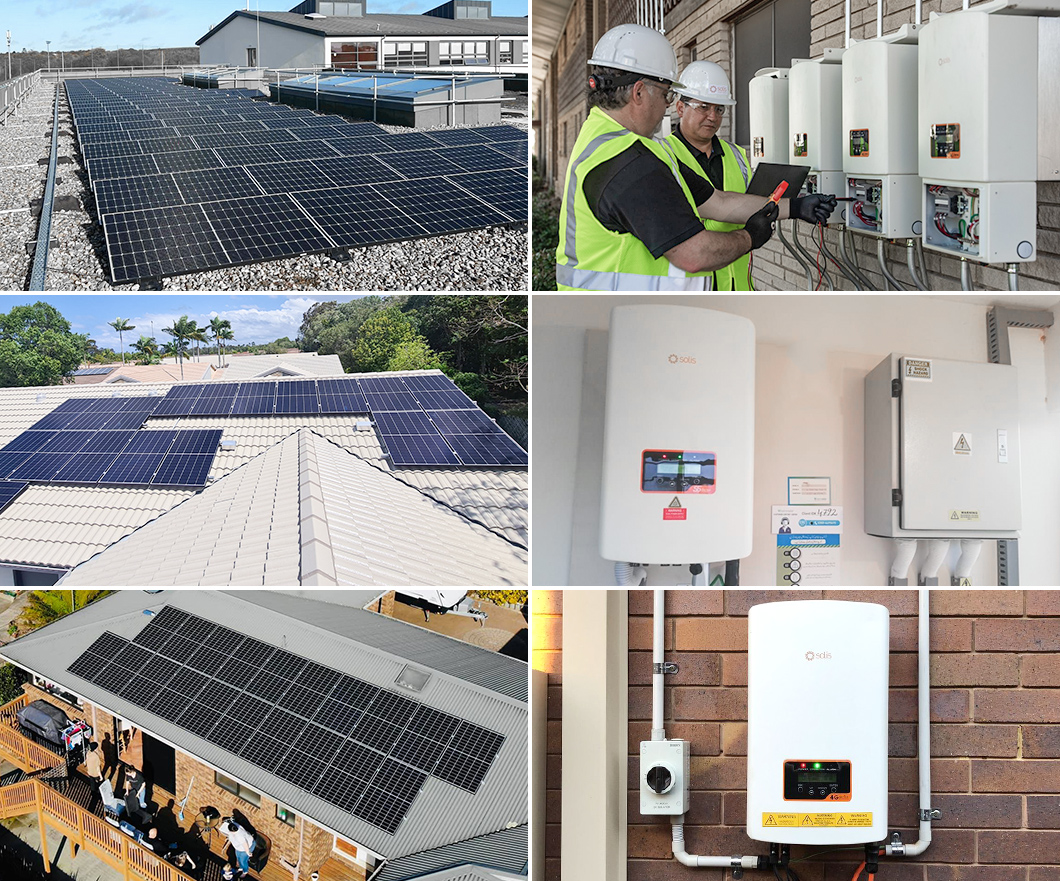

🌟 Project Cases & Packing

❓ Frequently Asked Questions

What is included in a complete on-grid solar system?

A standard system includes high-efficiency solar panels, an on-grid inverter, mounting structures, DC/AC disconnect switches, solar cables, MC4 connectors, and professional installation tools.

How long is the warranty for the solar panels and inverter?

Our solar panels typically come with a 25-year linear performance warranty. Inverters generally have a 5 to 10-year standard warranty depending on the specific model chosen.

Can I monitor the energy production of my system?

Yes, the system includes a smart monitoring gateway that allows you to track real-time energy production and system health via a mobile app or web portal.

Is the mounting system compatible with different roof types?

Absolutely. Our mounting systems are customized based on your specific requirements, whether it's an asphalt shingle roof, tin roof, tile roof, or ground-mount installation.

What is the lifespan of the solar cables and connectors?

The TUV-certified DC cables and MC4 connectors are designed for outdoor durability with a rated lifetime of up to 25 years under standard operating conditions.

How does the on-grid system handle excess electricity?

Excess electricity generated by the panels is fed back into the local utility grid. Depending on your local regulations, you may receive credits or payments through net metering.
