Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
1 / 5
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load
Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load

Germany 600W MPPT Solar System Kit Flexible Balcony Garden Panel On-Grid Tied Home System with 800W PV Power Load

Send Inquiry

Product Description

Product Description

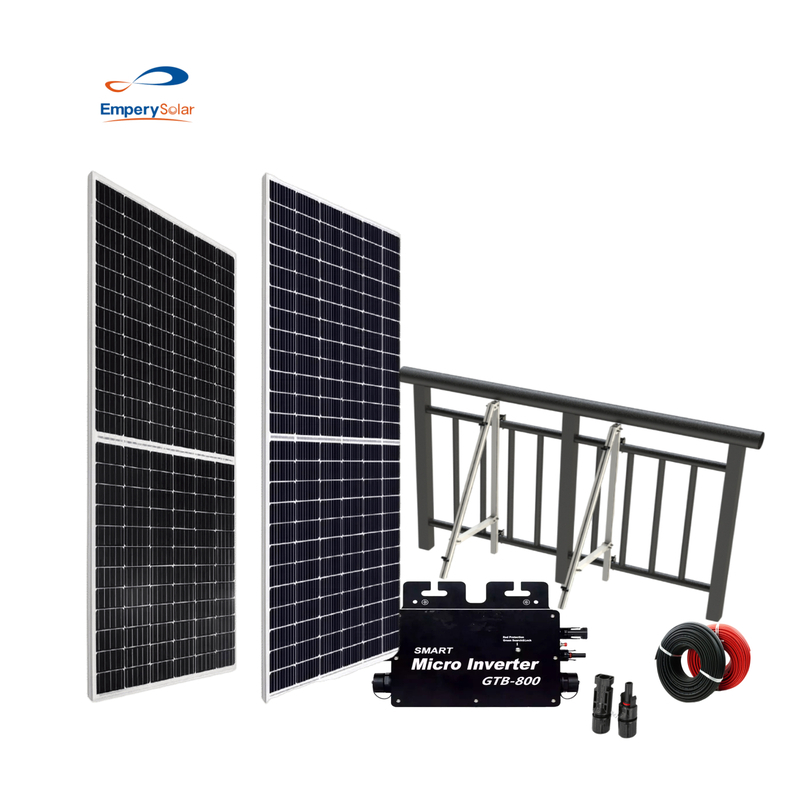

Balcony installation system kit parameters Solar System Kit
Product name Description Quantity
Grid tied micro inverter GTB-800 Smart 800W micro inverter 1PCS
Mono solar panel STC400 Mono 400W solar panel 2PCS
Balcony Mount Bracket Inclined mounting (vertical mounting optional) 2PCS
Technical Specifications

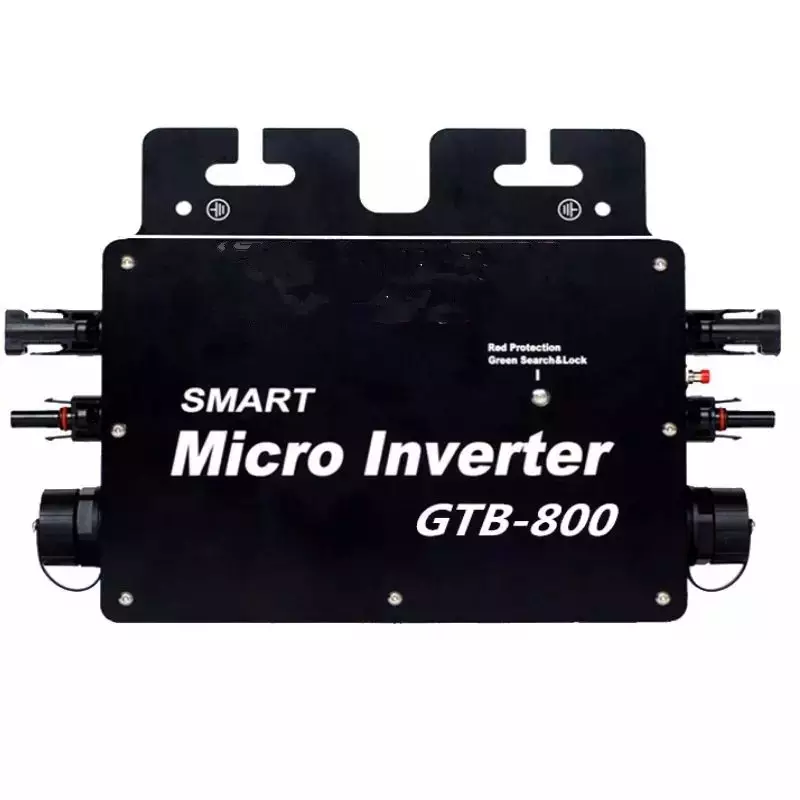

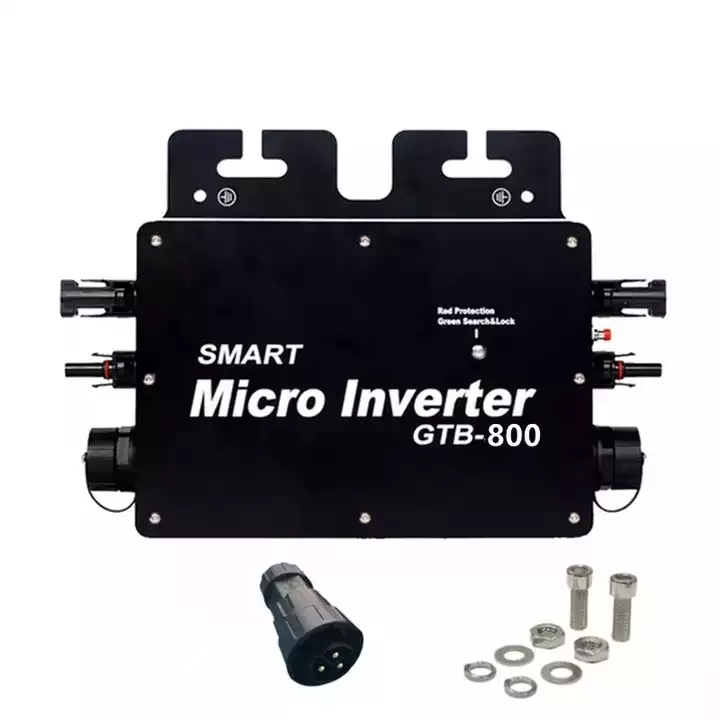

Grid Tied Micro Inverter
Input Voltage: 22/50V
Output Voltage: 80/160VAC-180/280VAC
Output Current: 5/2.6A
Output Frequency: 48-51HZ/58-61HZ
Size: 310X200X40mm
Inverter Efficiency: 95%
Certificate: CE
Warranty: 5 Years
Protection: IP65
Inverter

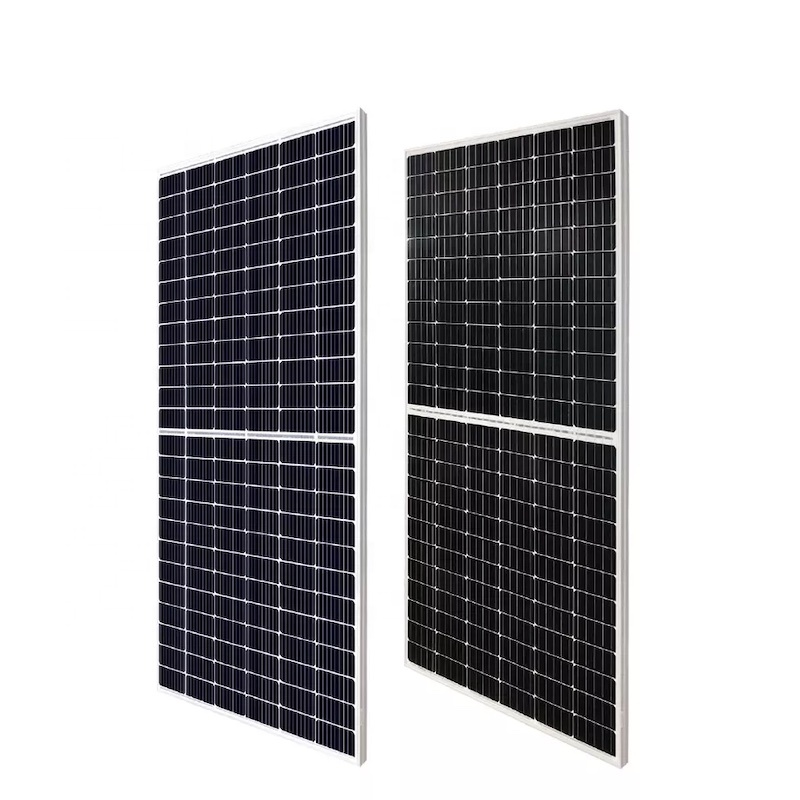

Mono-crystalline Solar Cells
Maximum power (Pmax): 400W
Operating voltage (Vmp): 37.78V
Operating current (Imp): 10.59A
Open-circuit voltage (Voc): 43.50V
Short-circuit current (Isc): 11.33A
Dimension: 1723mm×1134mm×35mm
Weight: 20.90kg
Max System Voltage: 1000V DC
Operating Temp: -40℃ to 85℃
Solar Panel

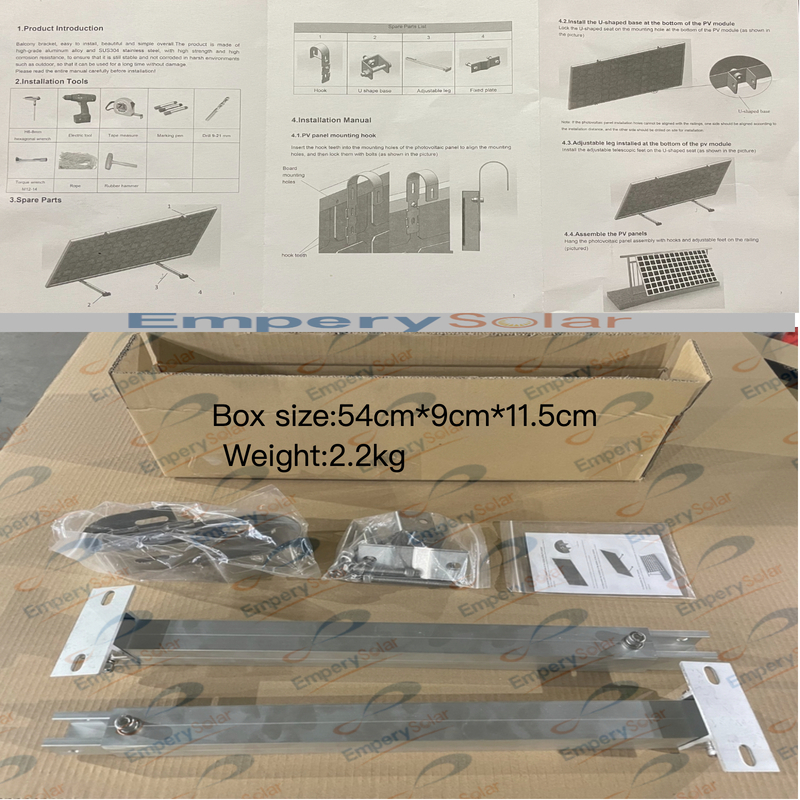

Balcony Mount Bracket
Installation Site: Balcony
Panels: Compatible with any size solar panel
Structural materials: Aluminum
Survival wind speed: Up to 50m/s
Snow pressure: Up to 1.4KN /m2
Inclination: 0°-60deg
Certificate: CE TUV UL
Warranty: 15 years | Design Life: 25 years
Bracket

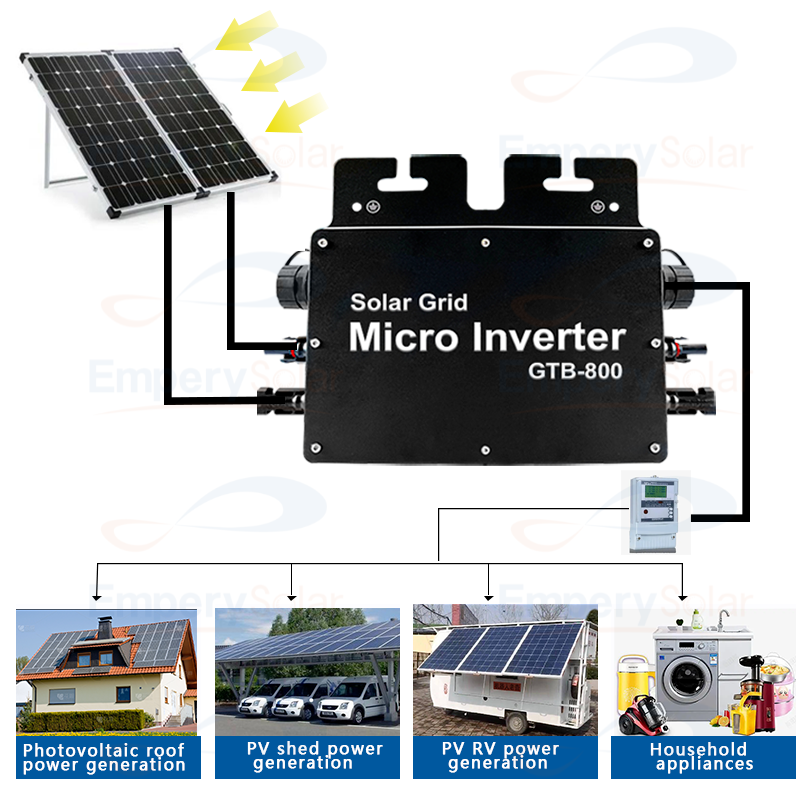

System Overview & Installation

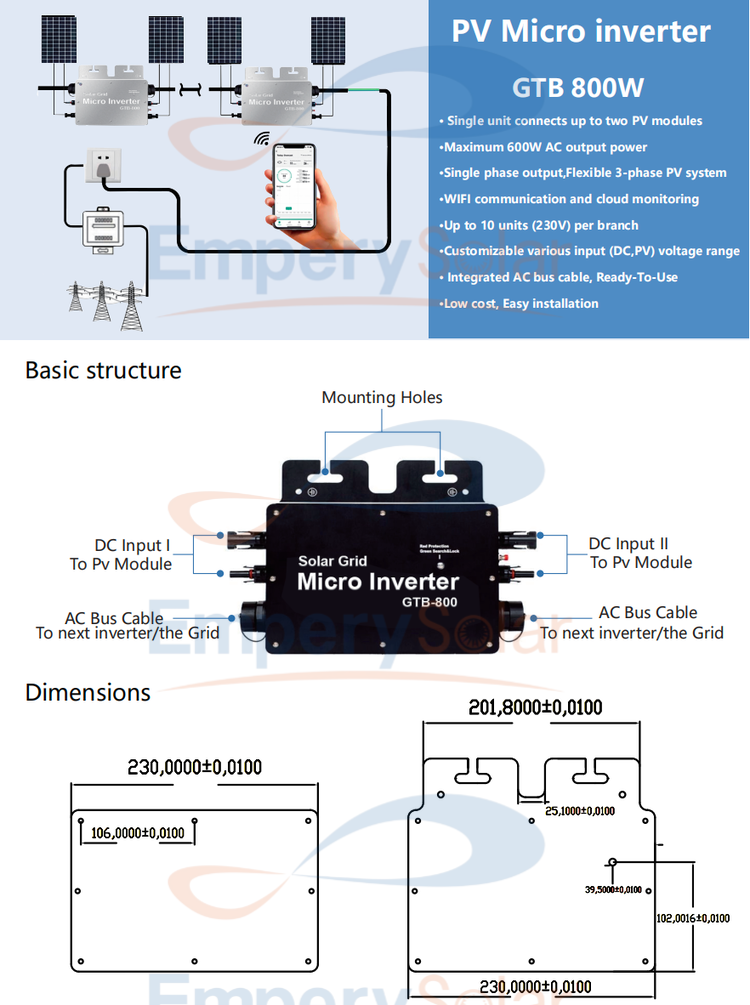

Diagram Installation

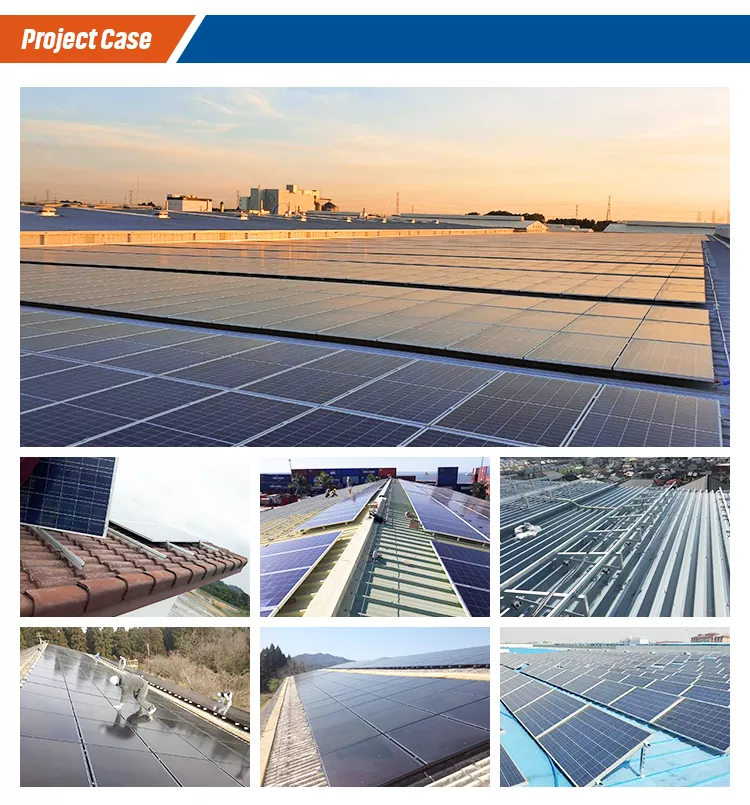

Project Case
Case Study
Project Categories & Production
Categories

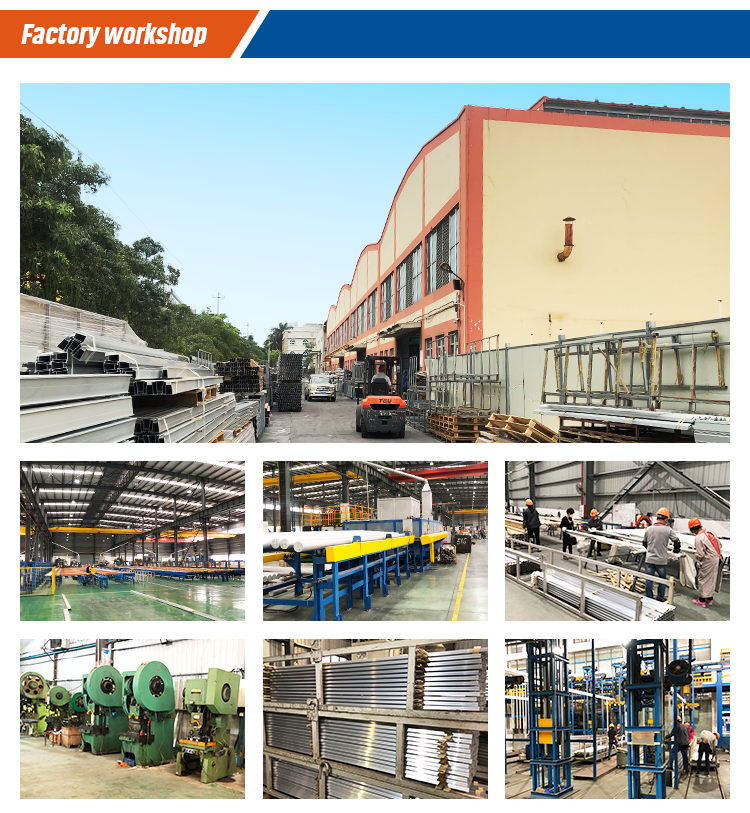

Factory 1 Factory 2

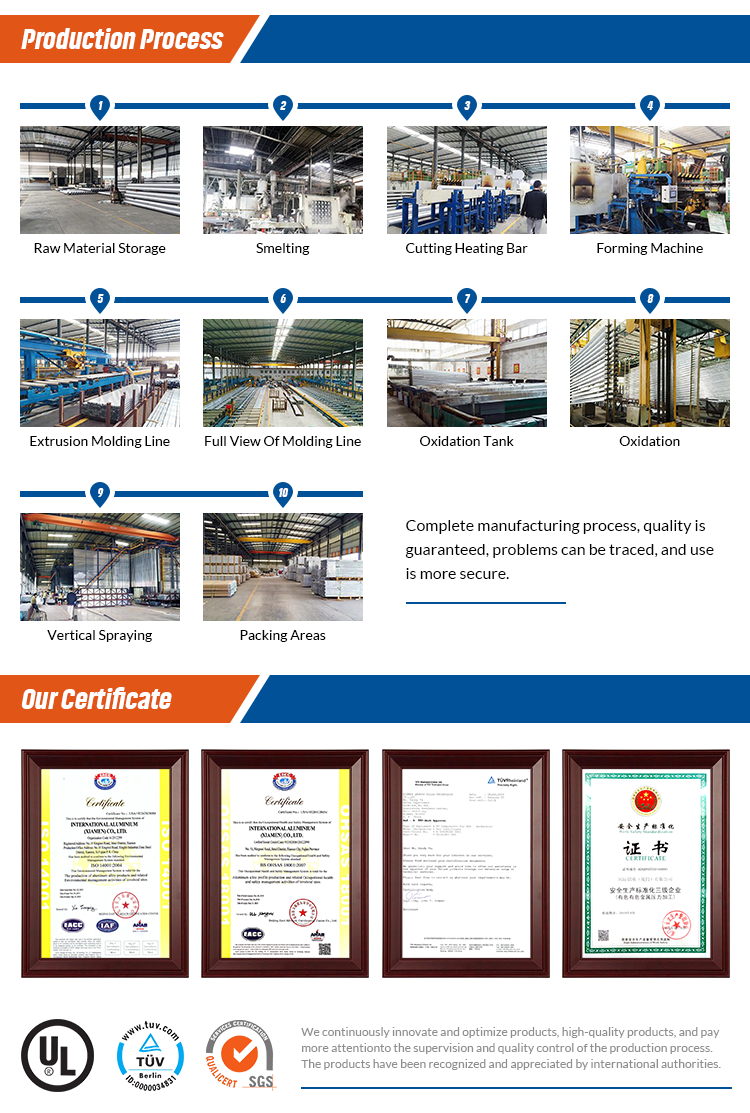

Production
Quality Control Testing

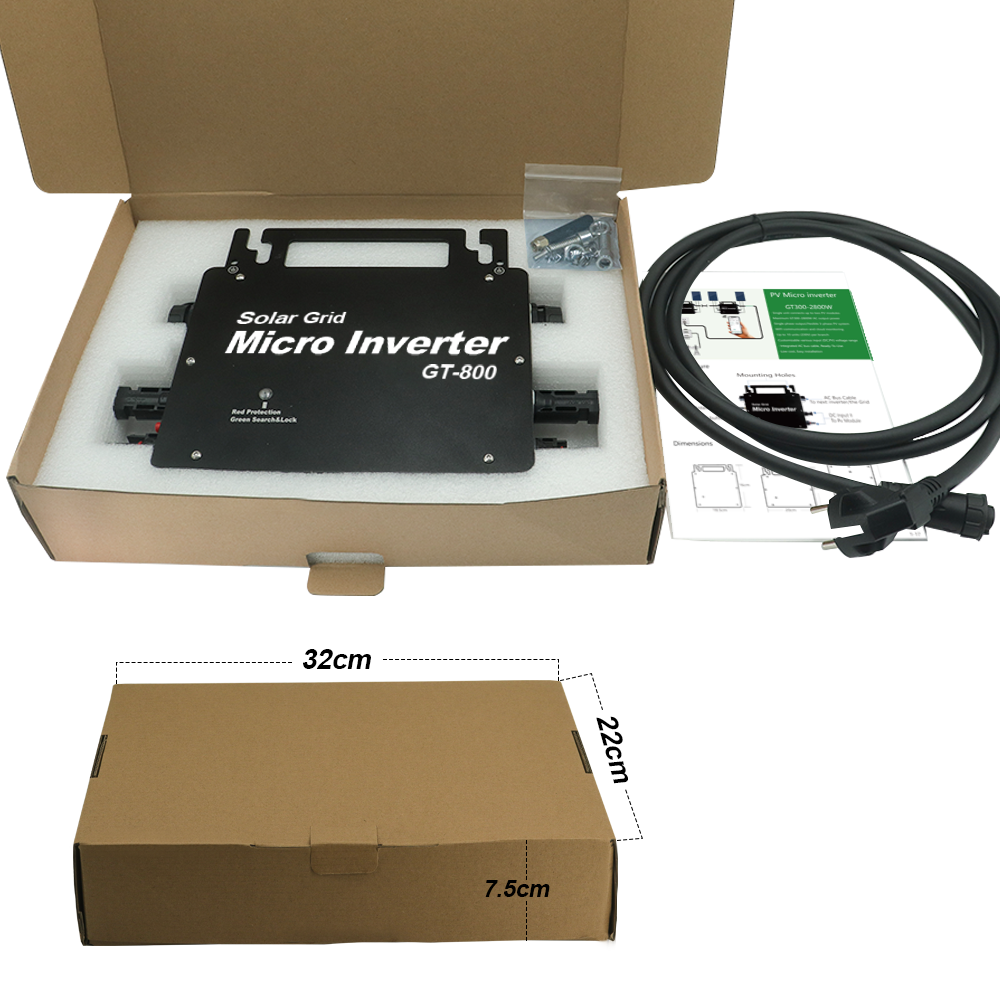

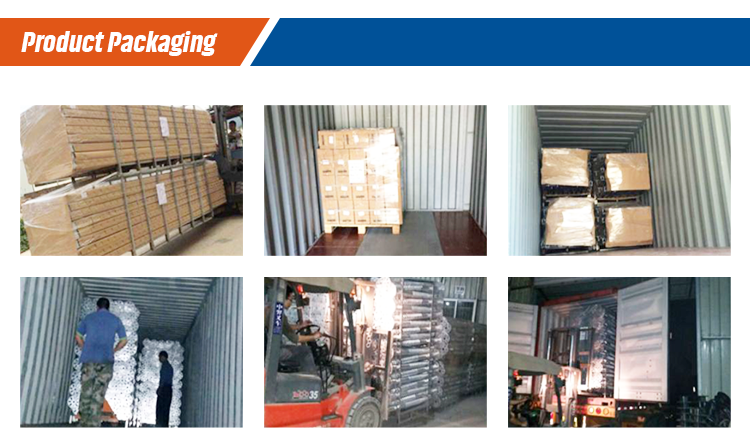

Packaging & Shipping

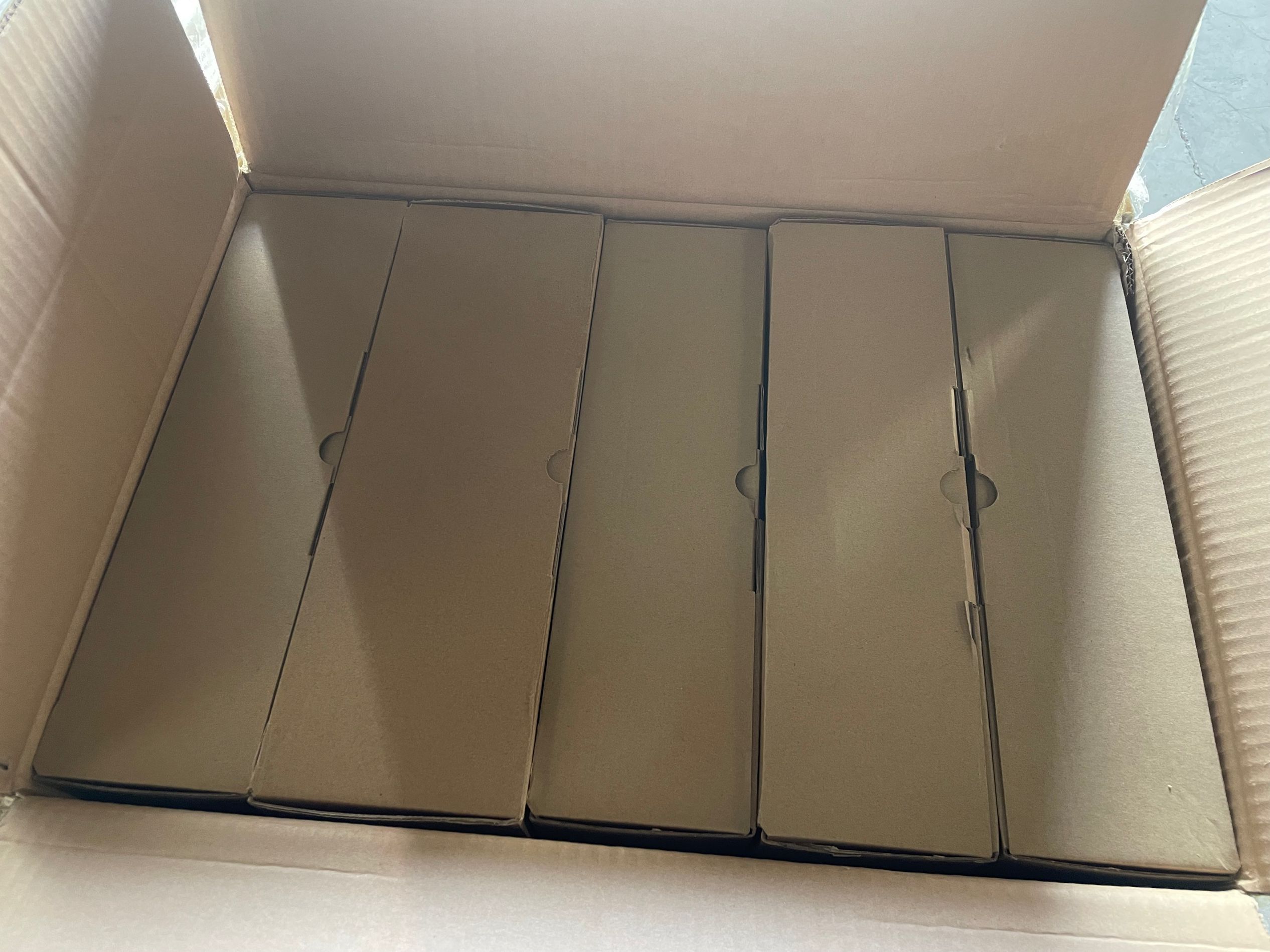

Packaging
Frequently Asked Questions
What components are included in this balcony solar kit?
The standard kit includes a Smart 800W Grid-tied Micro Inverter, two 400W Mono-crystalline solar panels, and specialized balcony mounting brackets for secure installation.
Is the micro inverter weather-resistant?
Yes, the micro inverter features an IP65 protection rating, making it dust-tight and protected against water jets, suitable for outdoor balcony environments.
Can the mounting brackets withstand strong winds?
The aluminum structural brackets are designed to withstand survival wind speeds up to 50m/s and snow pressure up to 1.4KN/m2.
What is the expected lifespan of the mounting system?
The balcony mount brackets come with a 15-year warranty and are engineered for a design life of 25 years.
Does the system support adjustable tilt angles?
Yes, the mounting system supports an inclination range of 0° to 60°, allowing you to optimize the solar panel position for maximum energy capture.
What certifications do these products hold?
The components are certified by major international standards, including CE, TUV, and UL, ensuring safety and performance compliance.
