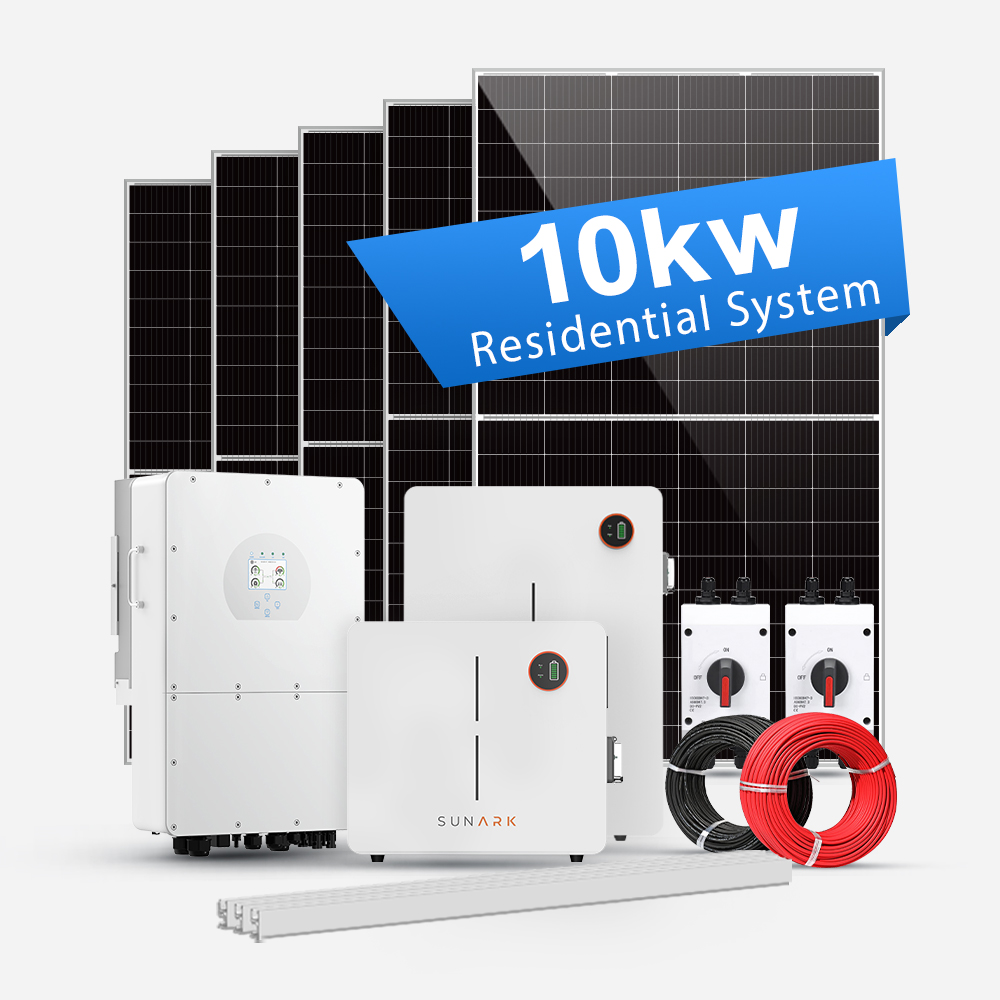

Sunevo Solar Power Systems Complete Kit 3Kw 5Kw 10Kw 20Kw 30Kw Hybrid Solar Energy System Eu Stock

Product Description

Solar Energy System Banner
Solar System Overview

System Specifications

Model SE-10KW3-HY
Half Cut Mono 550W Solar Panels 20 pcs
Hybrid Solar Inverter 1 pc
Lithium Batteries 48V 200Ah 1 pc
PV Cable 4mm2 200m
Earthing cable 6mm2 100m
MC4 Connector 20 pcs
PV Tools 1 pc
Roof Mounting System 1 set
Wooden box 1 pc

Warranty Information

Warranty Details

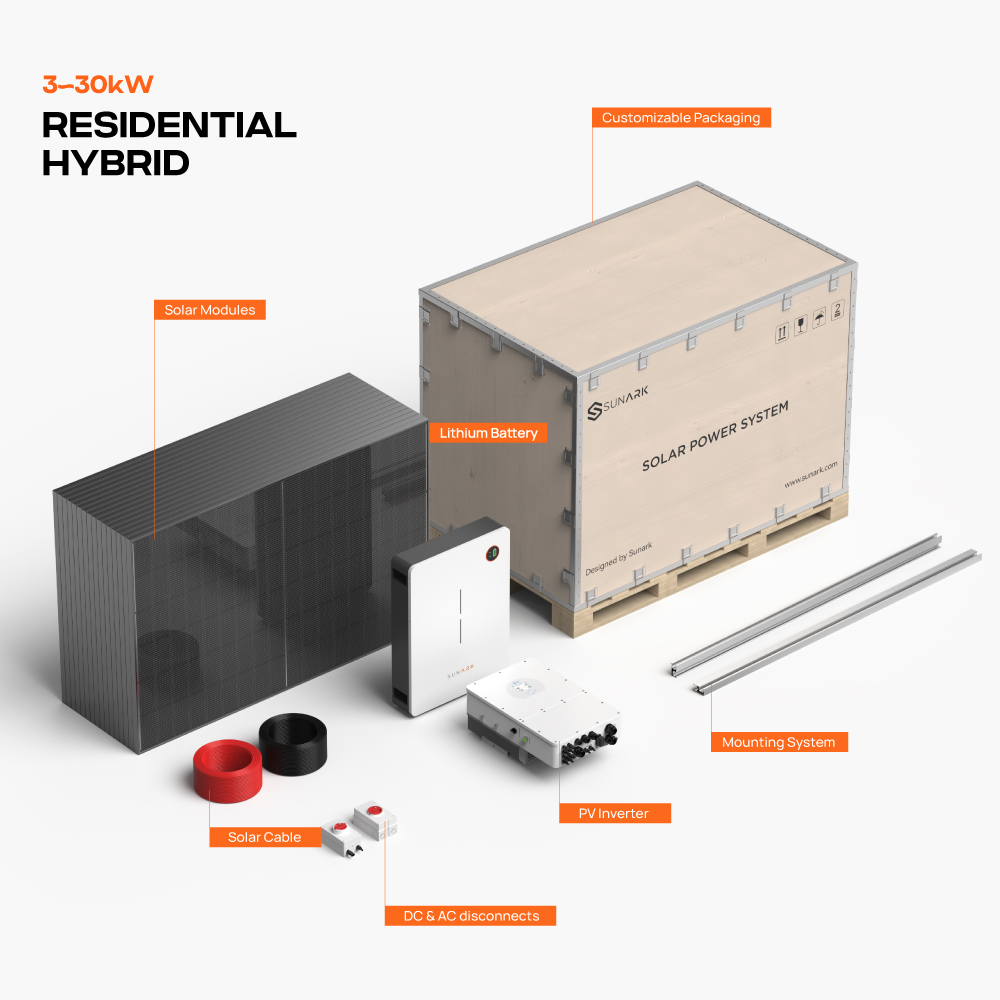

What's Included

Solar Panel
Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg
Solar Inverter
Hybrid Solar Inverter
Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.
Max. charging/discharging current of 240A
Max. 6pcs parallel
DC couple and AC couple to retrofit existing solar system
LiFePo4 Battery
Low Voltage LiFePo4 Battery Bank
12V, 24V 48V, 51.2V available.
15-20 years design life. Up to 6000 + cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Built-in high quality BMS to protect battery cells.
Mounting System
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip & Tie, Ground Clip & Lugs Optional.
Disconnect Switch
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
Monitoring System
Monitoring System
Open station supports one-click installation and registration.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

How it works

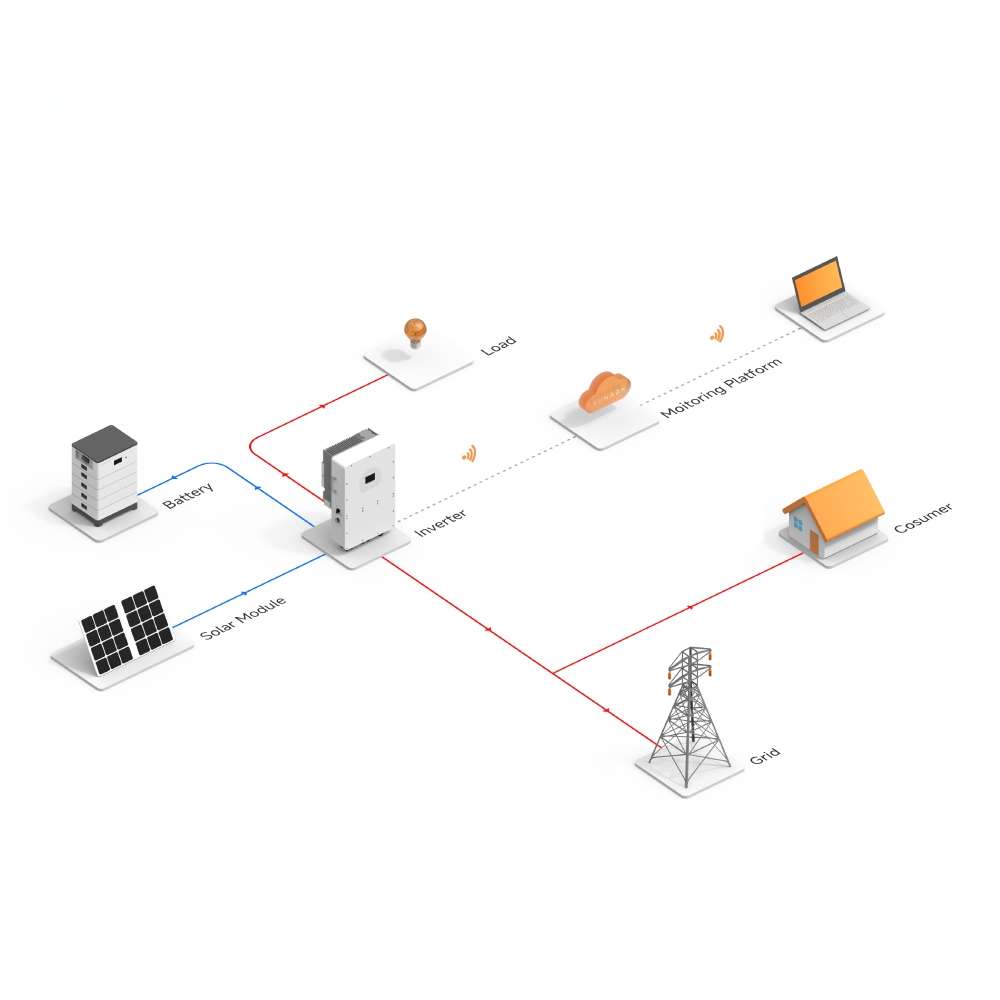

System Workflow
Wiring Diagram
📦

Product Packaging

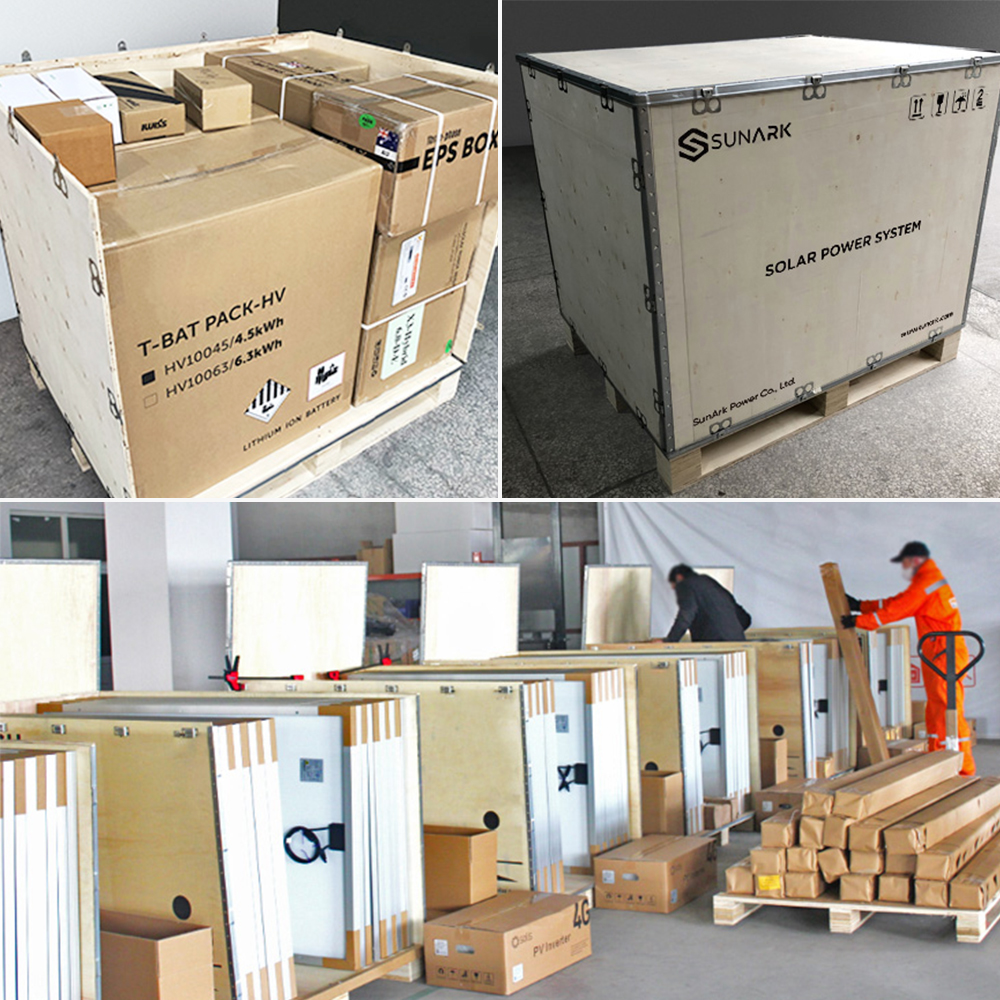

Packaging Box
Safe Shipping
🏠

Project Case

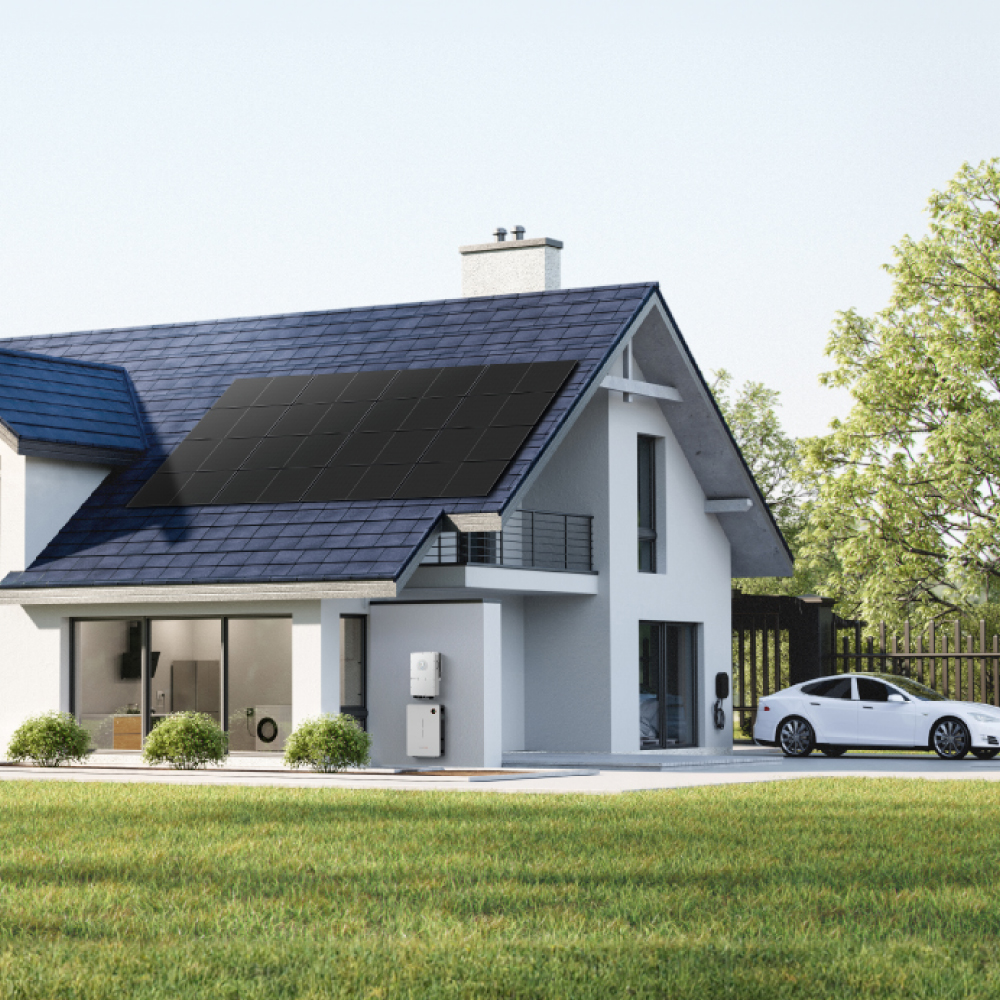

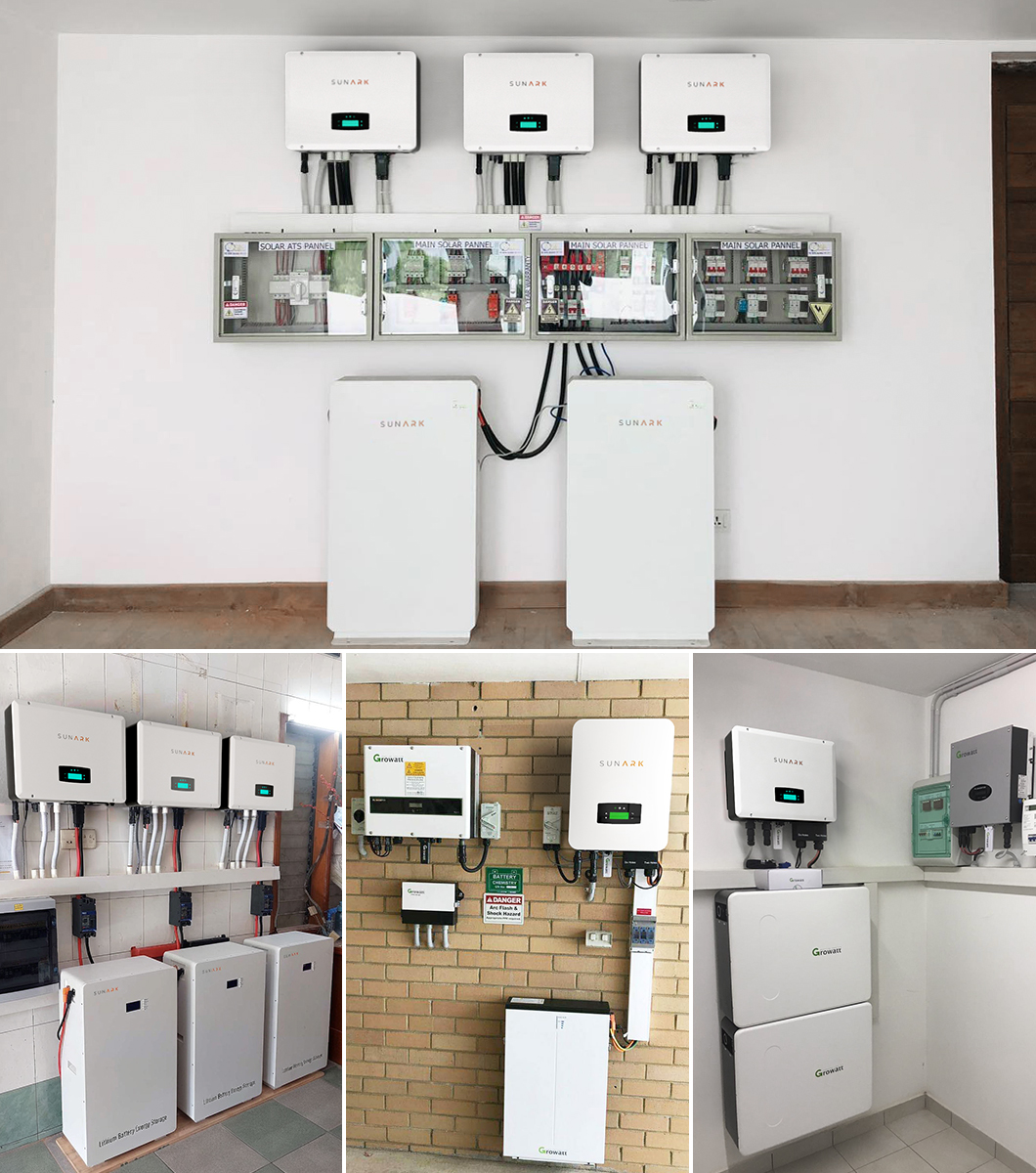

Installation Case

About Us & Factory

Company Office
Production Line
Factory Environment
💬

Customer Good Reviews

Review 1
Review 2
📜

Certifications

Quality Certificates
Wish You Have A Pleasant Purchasing Time! You can contact us at any time if you have any questions!
?

Frequently Asked Questions

Q1: What is the expected lifespan of the LiFePo4 battery bank?

A: Our lithium iron phosphate batteries are designed for a 15-20 year life with up to 6000+ cycles, ensuring long-term reliability for your home energy storage.

Q2: Can the hybrid inverter support both single-phase and three-phase systems?

A: Yes, our hybrid solar inverter is designed to support both single-phase and three-phase configurations, making it highly versatile for different electrical setups.

Q3: Is remote monitoring included in the system?

A: Yes, the system includes a comprehensive monitoring system that supports one-click installation and provides full lifecycle data storage for security and reliability.

Q4: Are the solar panels high-efficiency models?

A: Absolutely. We provide Half Cut Mono 550W solar panels which offer superior efficiency and better performance under partially shaded conditions compared to standard panels.

Q5: How is the system protected against outdoor elements?

A: Major components like the DC & AC disconnect switches carry an IP66 rating, providing excellent protection against dust and high-pressure water jets.

Q6: Is the battery system scalable for future needs?

A: Yes, the battery modules are scalable, allowing you to easily expand your storage capacity as your energy needs grow.
