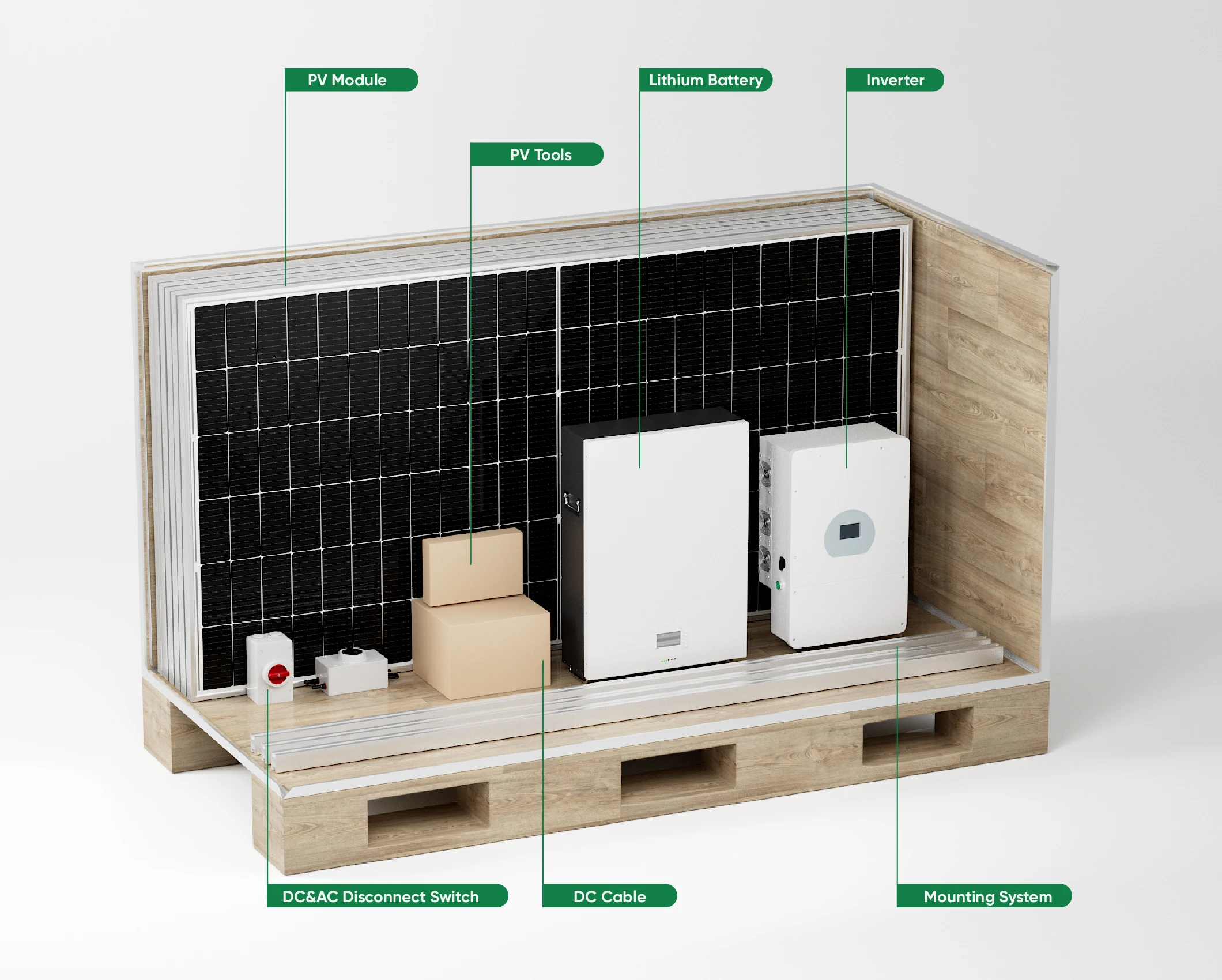

| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63Pieces |
| DC Disconnect Switch | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | SUN-5K-SG03LP1-EU (3 Pcs) | SUN-10K-SG03LP1-EU (2 Pcs) | SUN-10K-SG04LP3-EU (3 Pcs) |
| Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||

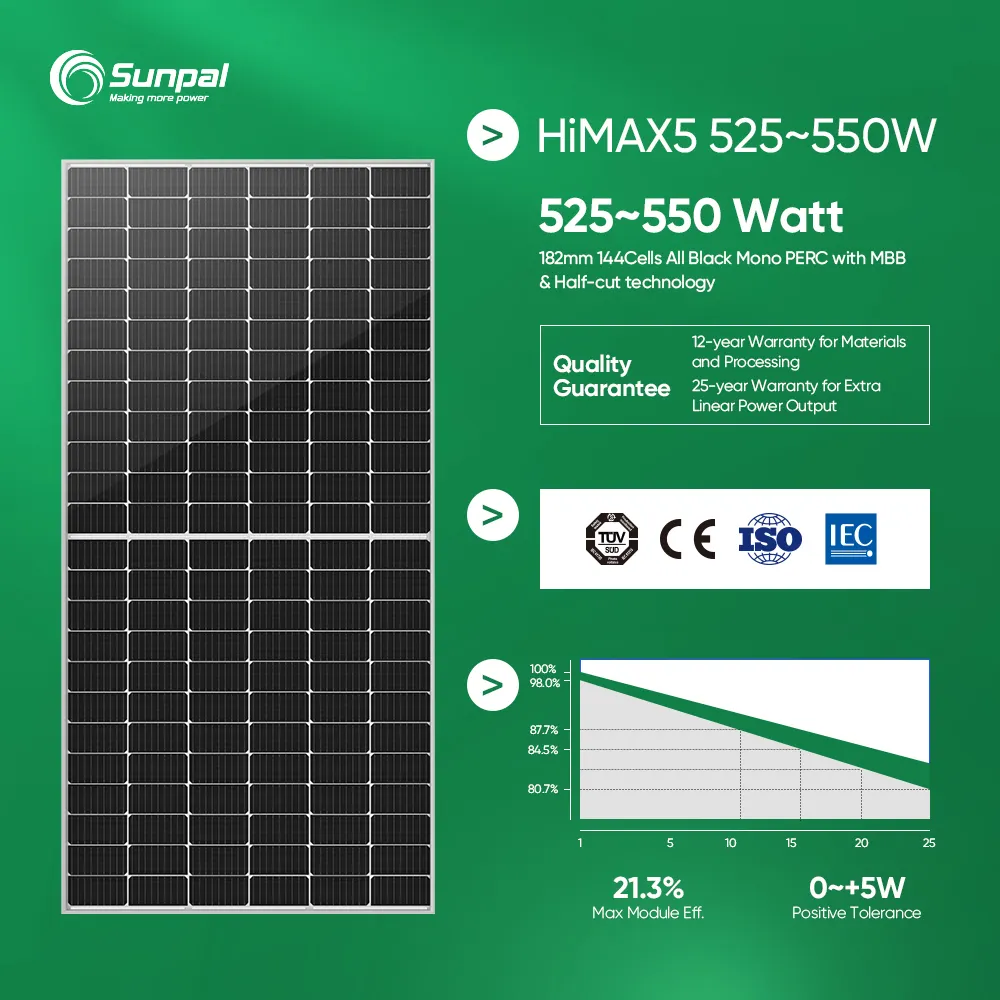

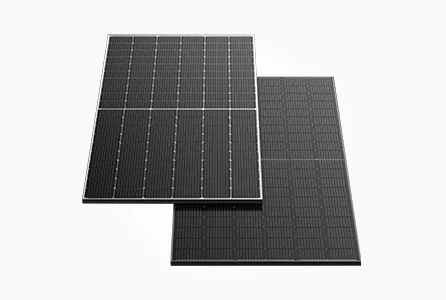

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9Kg

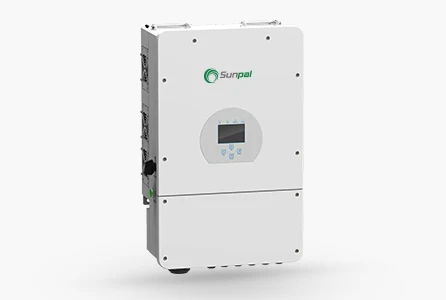

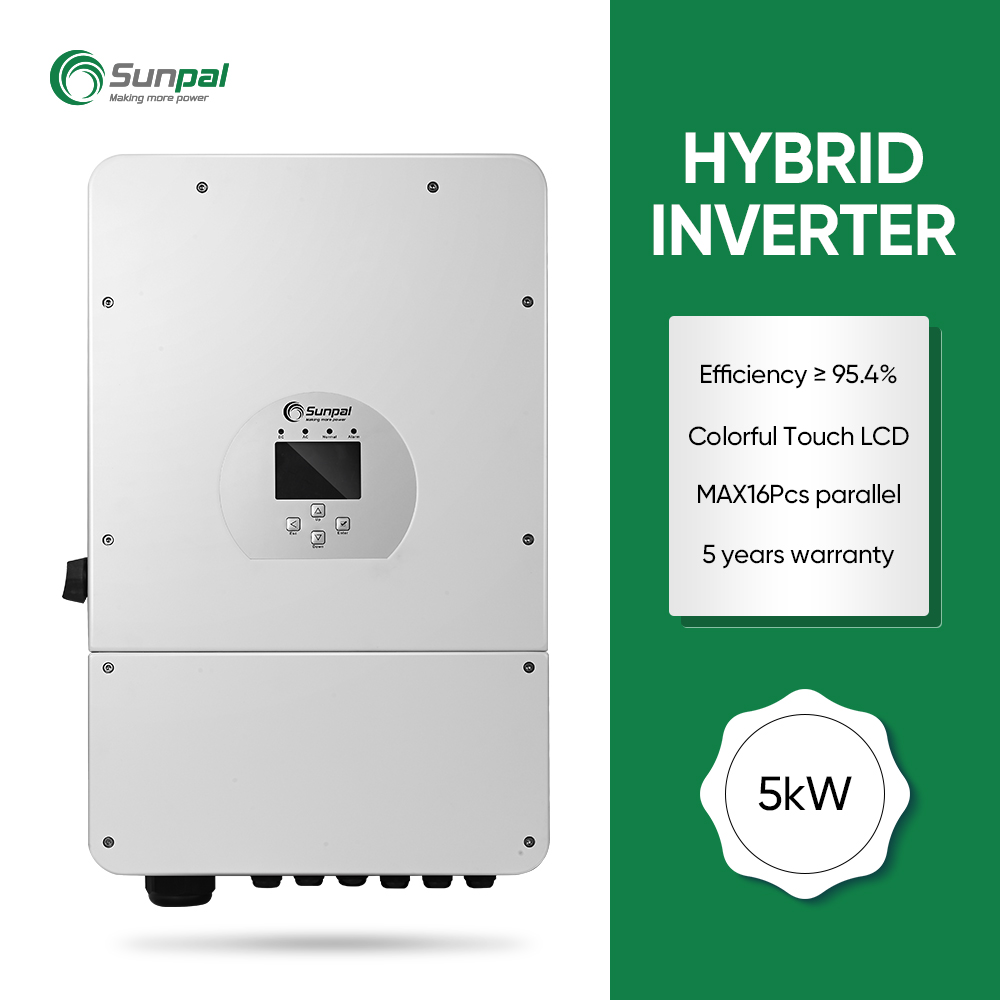

48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A. Max. 10pcs parallel.
DC couple and AC couple to retrofit existing solar system.

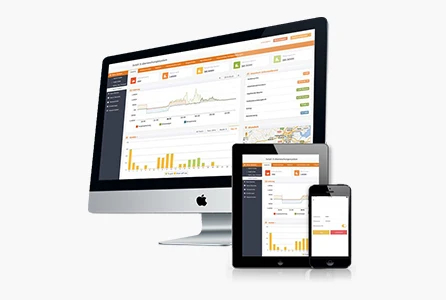

Open station supports one-click installation and registration.
Safe operation with traceable logs.
Support full lifecycle data storage to ensure data security and reliability.

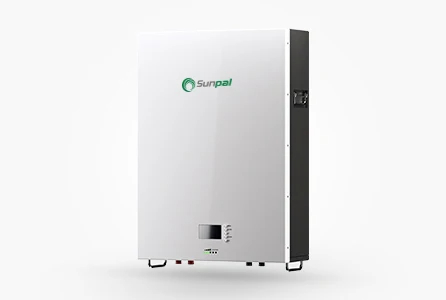

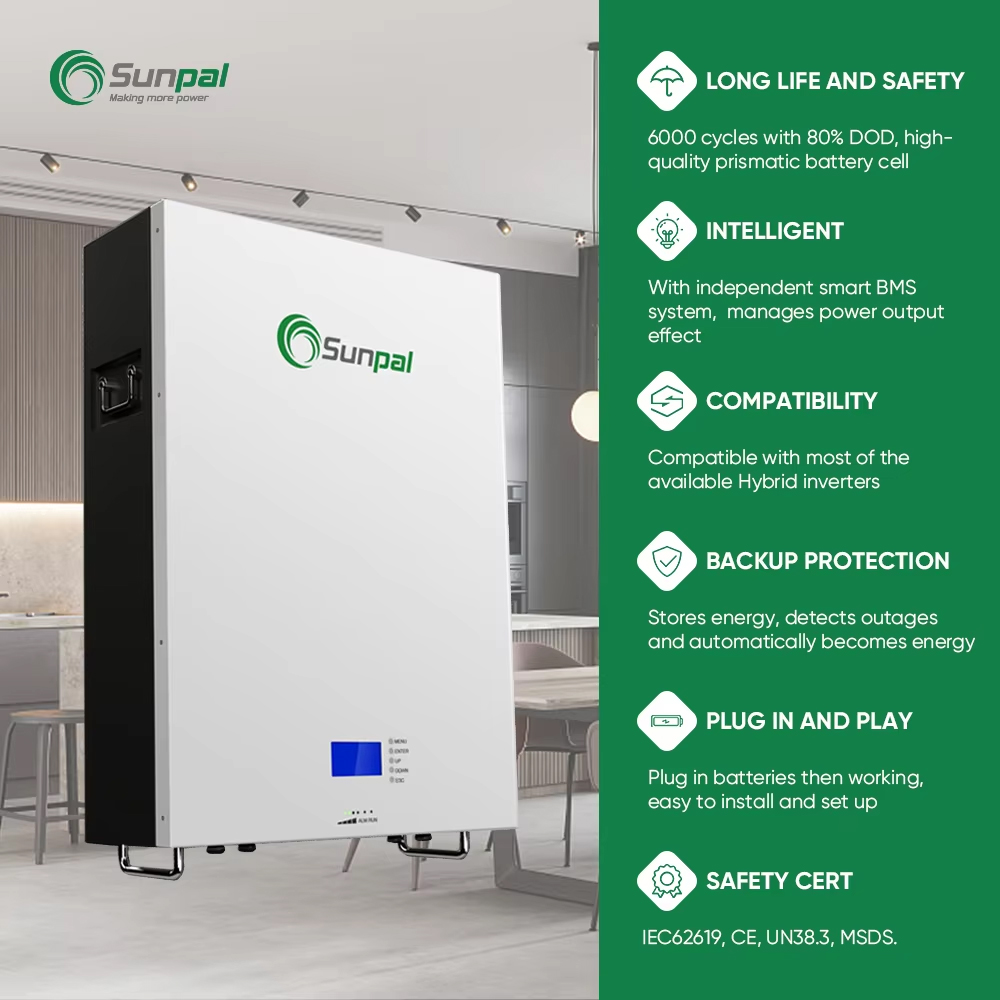

15-20 years design life with up to 6000+ cycle life.
Scalable battery module for larger storage systems.
Built-in high quality BMS to protect battery cells.
Lithium iron phosphate cell for ultimate home safety.

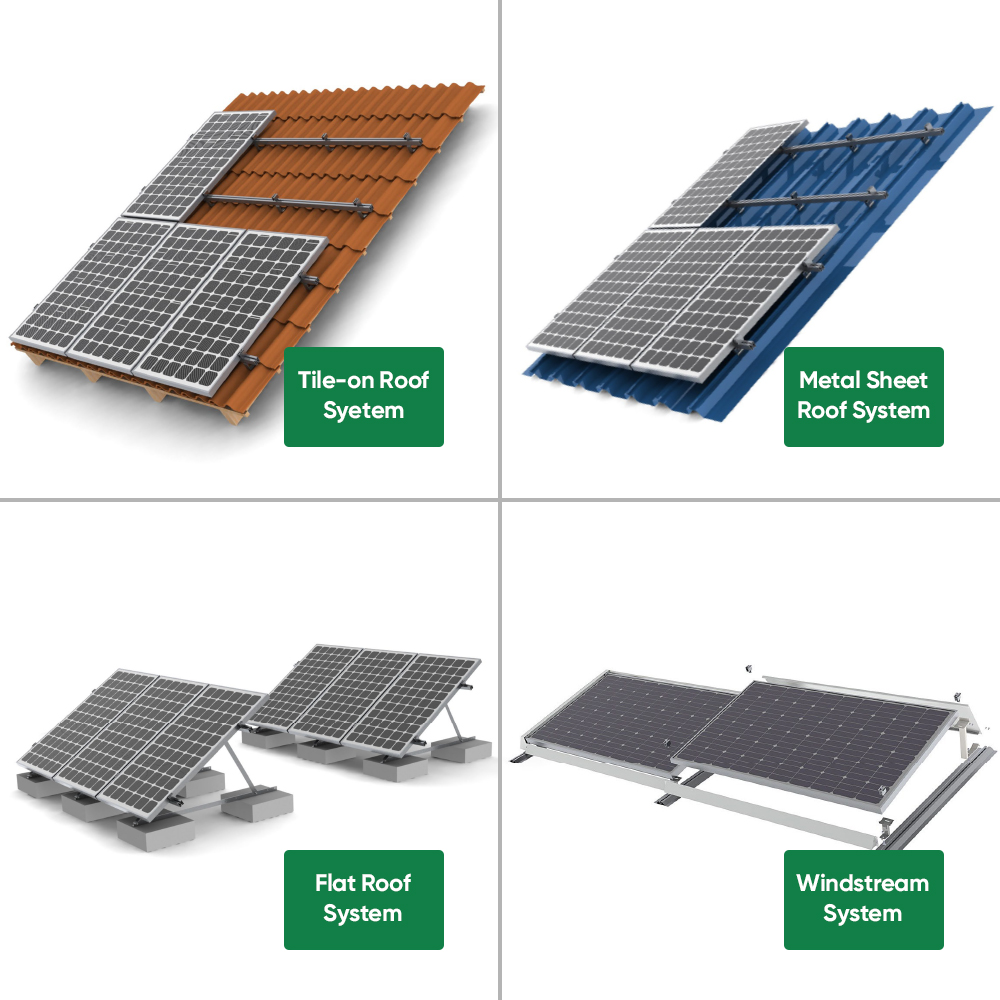

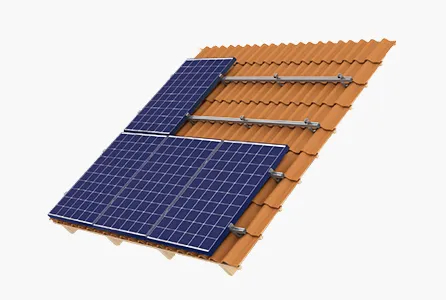

Mounting System: Rail & Splice Kit (AI6005 & SUS304), Mid & End Clamps (35-50mm).
Cables: 4mm2/6mm2 DC Cable, Rated current 55A/70A.
Disconnects: IP66 Rated, 1000VDC voltage.

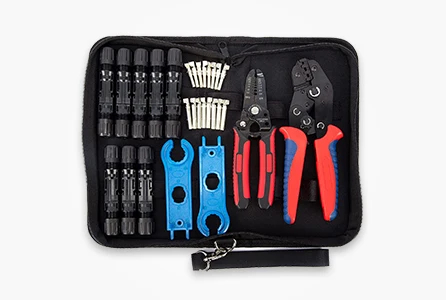

Includes Wire Cable Cutter & Stripper, MC3 MC4 Crimper, and MC4 Connectors Assembly/Disassembly Tool set for professional installation.

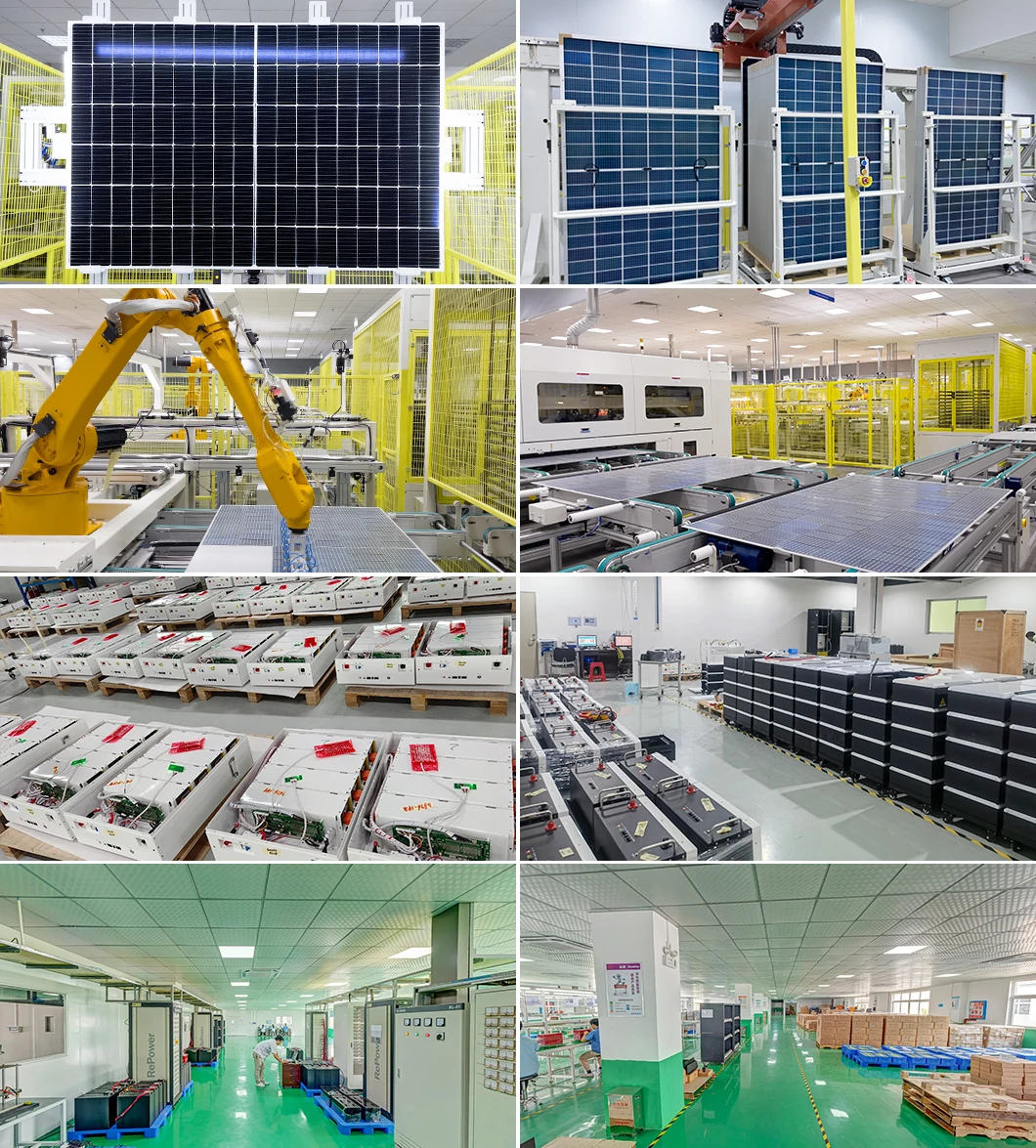

As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. With over decades of expertise, we have exported various kinds of solar solutions to 86 countries. Our facility covers 150,000 square meters with 600 experienced employees ensuring top-tier quality.
