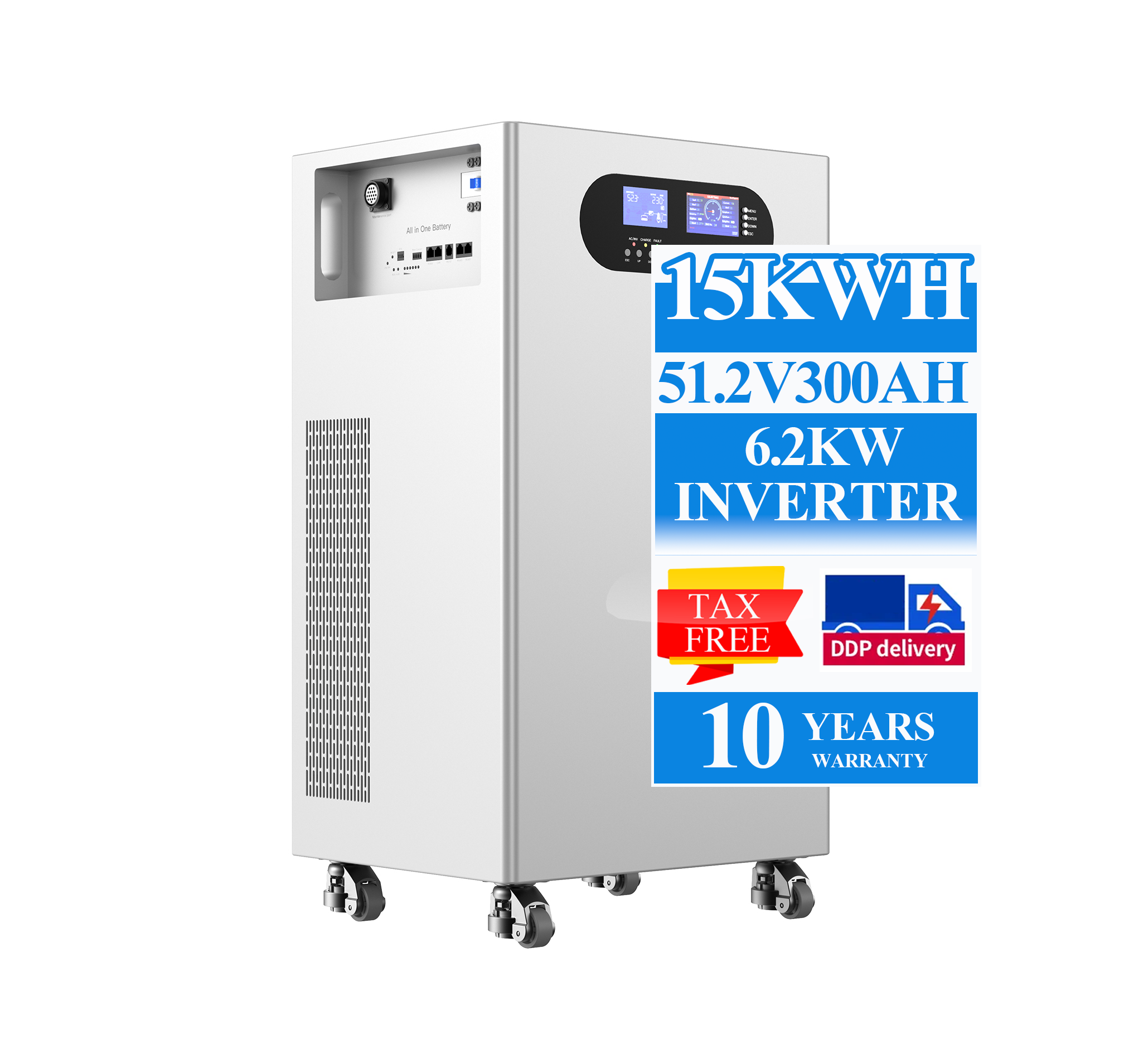

ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
1 / 5
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter
ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter

ZTGF 15KwH All in One Solar Home Energy Storage 48V 280Ah LiFePO4 Lithium Ion Battery Pack with 6.2Kw Solar Inverter

Send Inquiry

Product Description

ZTGF All in One Solar Home Energy Storage System
Products Description
ZTGF All in One Solar Home Energy Storage System Diagram 1
ZTGF All in One Solar Home Energy Storage System Diagram 2

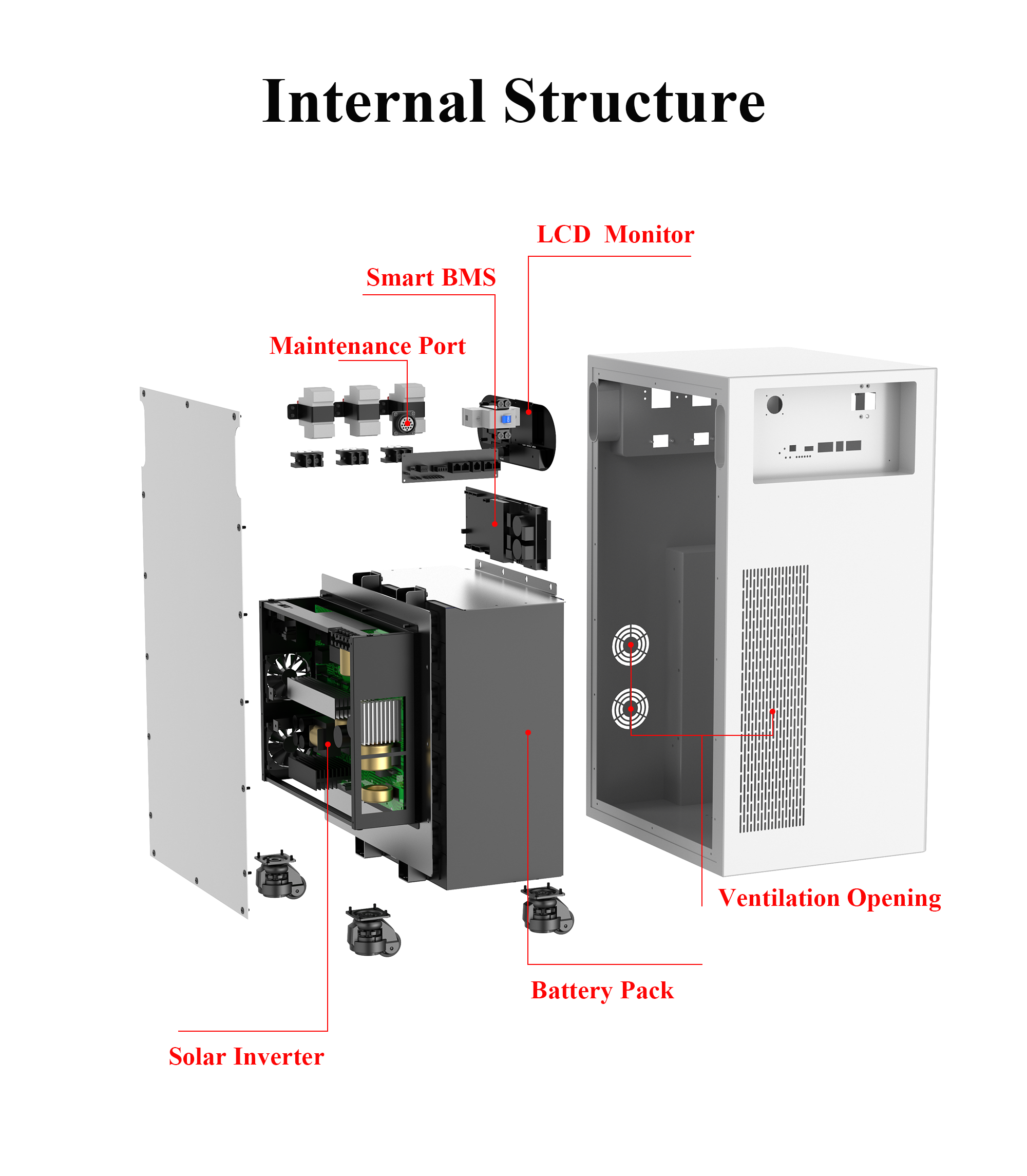

ZTGF All in One Solar Home Energy Storage System Diagram 3

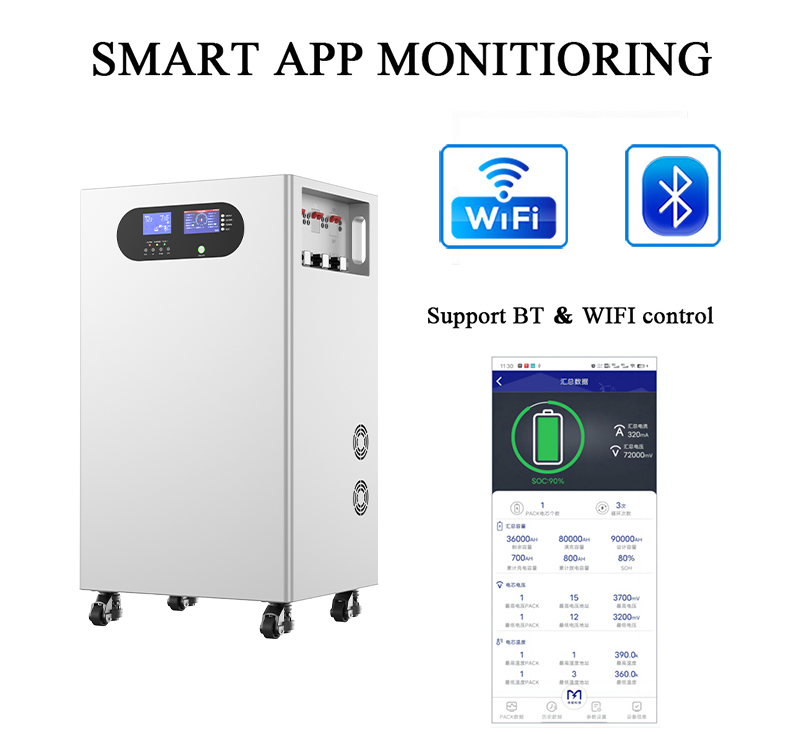

ZTGF All in One Solar Home Energy Storage System Diagram 4
ZTGF All in One Solar Home Energy Storage System Presentation 1
ZTGF All in One Solar Home Energy Storage System Presentation 2
ZTGF All in One Solar Home Energy Storage System Presentation 3
Product Parameters
Battery Parameters
Nominal Voltage 51.2V
Nominal Capacity 280Ah
Rated Power 14336Wh
Standard Charge Current 56Ah
Max Charge Current 150Ah
Standard Discharge Current 140Ah
Max Discharge Current 200Ah
Cycle Life 6000 Times
Inverter Parameters
AC Input Voltage 220/230/240VAC
Input voltage Range 90-280VAC±3V
Frequency 50/60Hz
Rated power 8600W
output voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
output wave Pure sine wave
Frequently Asked Questions
What is the battery cycle life of the ZTGF All in One Solar System?
The battery parameters support an outstanding cycle life of over 6,000 times, providing a highly reliable and durable energy source for your home.
What is the rated capacity and power output of the battery?
The system features a nominal voltage of 51.2V, a nominal capacity of 280Ah, and a total rated power capacity of 14,336Wh.
Does the built-in inverter support a pure sine wave output?
Yes. The inverter outputs a pure sine wave with a voltage range of 220/230/240VAC±5% at 50/60Hz, making it safe for all sensitive home electronic appliances.
What is the AC input voltage range supported by the inverter?
The system supports an input voltage range of 90-280VAC±3V, allowing it to adapt to various power grid stability levels.
What are the charging and discharging current parameters?
The battery standard charge current is 56Ah (max charge current: 150Ah) and the standard discharge current is 140Ah (max discharge current: 200Ah).
What is the maximum output power of the integrated inverter?
The inverter provides a robust rated power output of 8600W to easily handle high-wattage home loads.
