High-Efficiency Charging
Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.
🛡️
Full System Protection

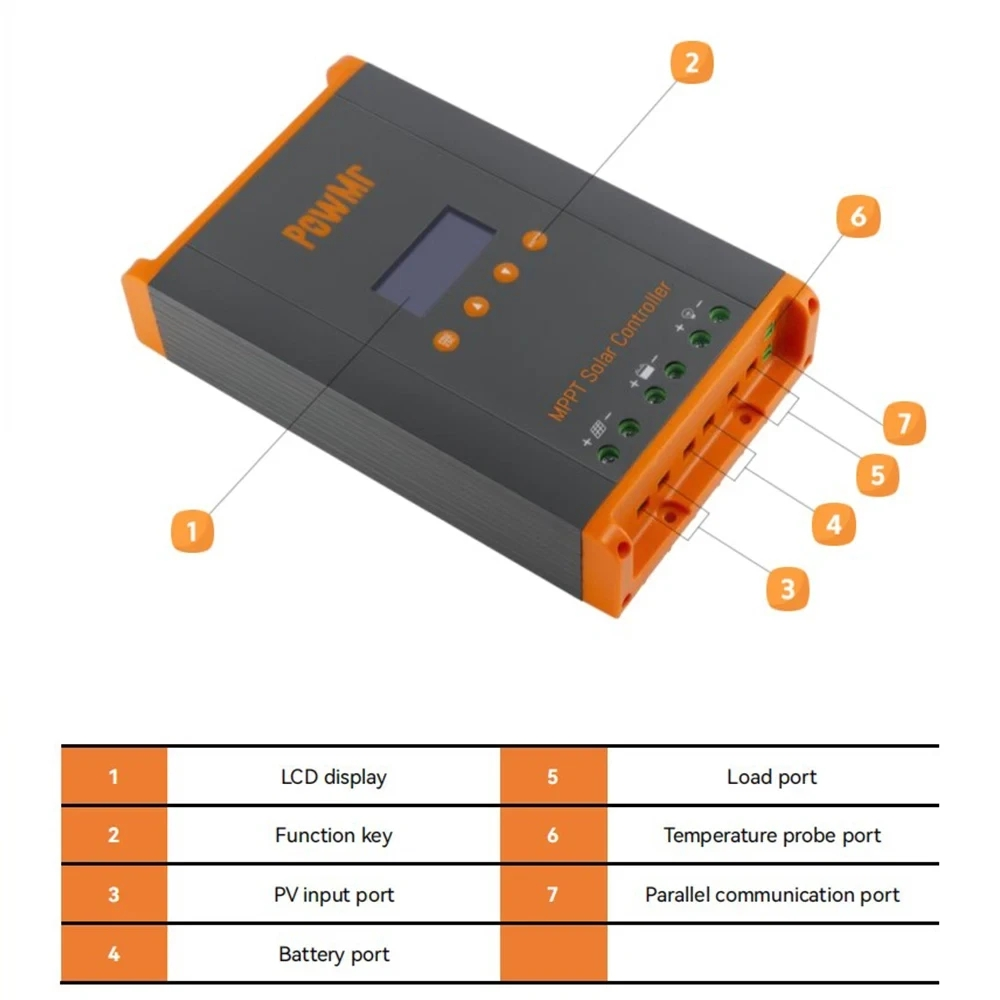

Features a backlight LCD displaying PV voltage, output power, battery voltage, charging current, working mode, and temperature. Includes a troubleshooting function to monitor system data, identify faults, and adjust parameters for optimal performance.
🌍
Versatile Application

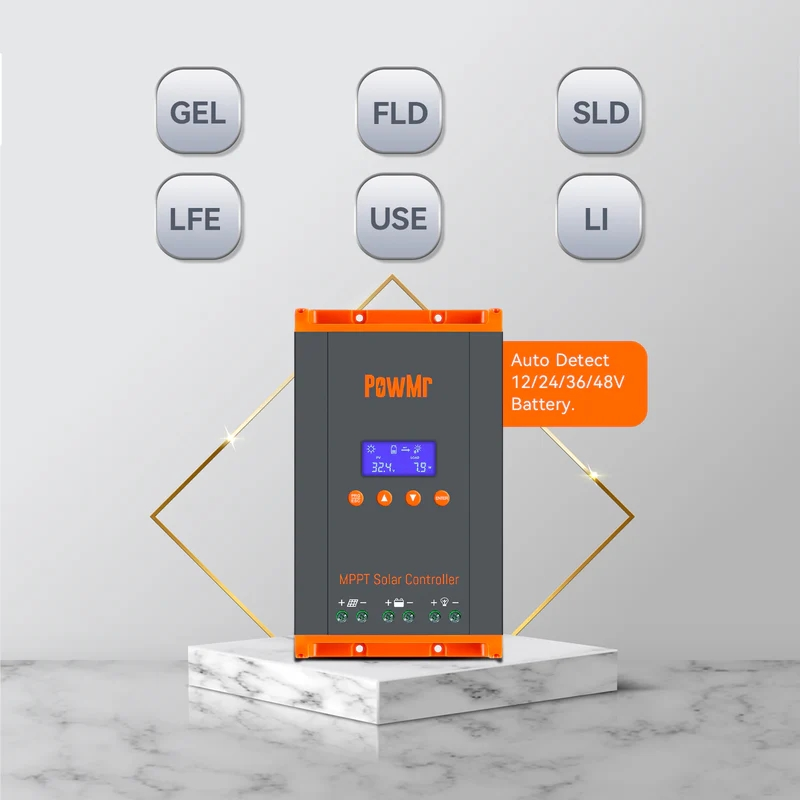

The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.
🔗

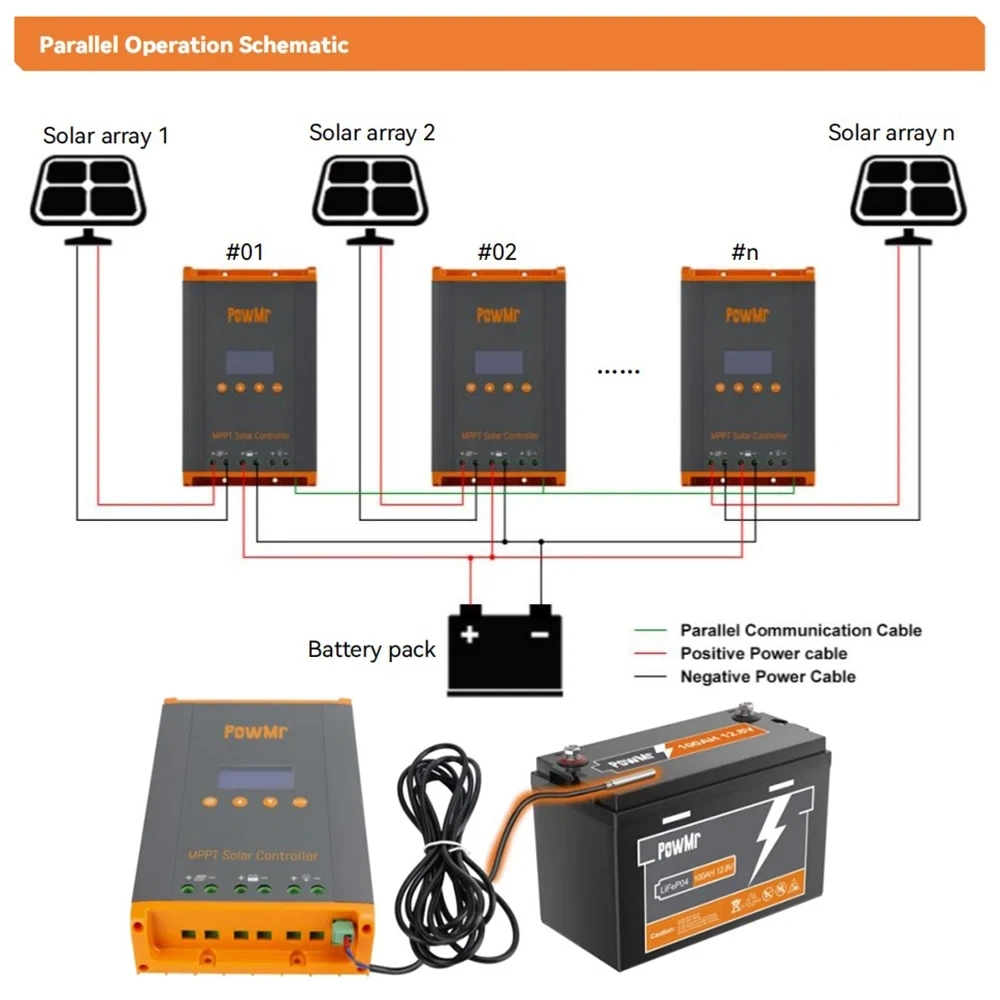

Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage.
❄️
Advanced Cooling & Temperature Sensing

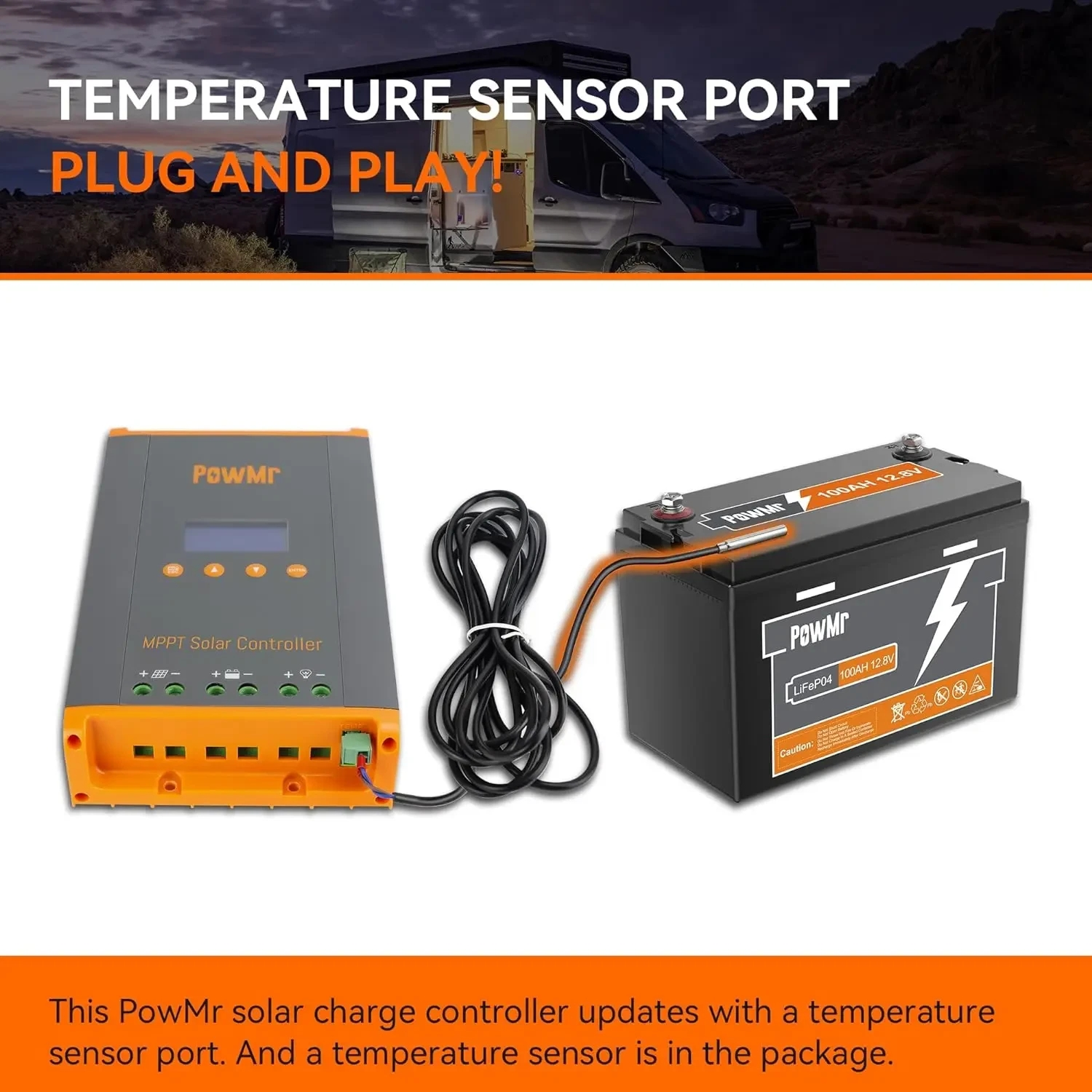

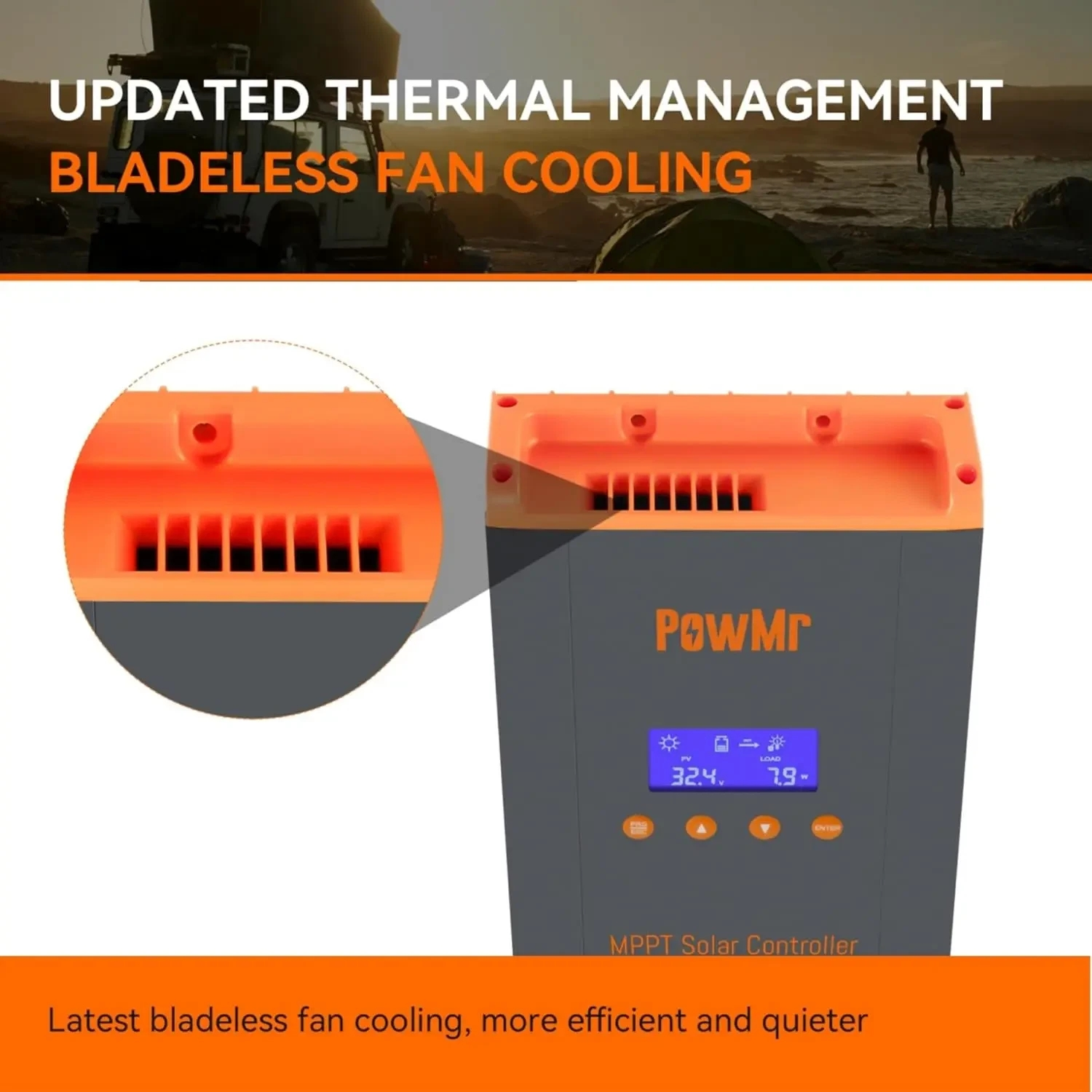

The upgraded bladeless fan system activates at >45℃ and turns off at <40℃, offering quieter and more efficient heat dissipation. Additionally, the controller features a plug-and-play temperature sensor port, with a sensor included for effortless installation and optimal performance.
⭐
Core Features
- Integrated Charging Presets: Adaptive charging logic suitable for Flooded, Gel-sealed, and Lithium batteries.
- Multi-Stage Charging Algorithm: Optimized cycles to maintain and extend battery life.

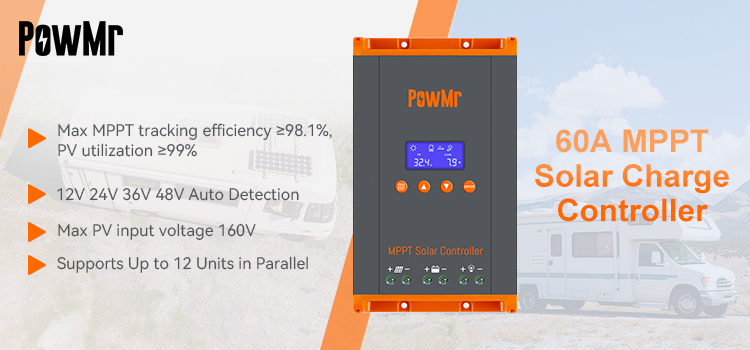

- MPPT Technology: Tracks Vmp with 99.9% tracking efficiency.
- Flexible Scaling: Supports up to 12 units in parallel.
- Durable Safety: Protection against PV overcurrent, short circuits, and reversed polarity.
📊
Product Parameters
| Specifications |
Details |
| Model | HHJ60-PRO |
| Solar Input Parameters |
| Input Power (12V / 24V) | 720W / 1440W |
| Input Power (36V / 48V) | 2100W / 2800W |
| Input Voltage Range (12V) | 20V~80V |
| Input Voltage Range (48V) | 72V~160V |
| Charging & Performance |
| Charging Technology | MPPT (3 stages) |
| Maximum Efficiency | ≥98.1% |

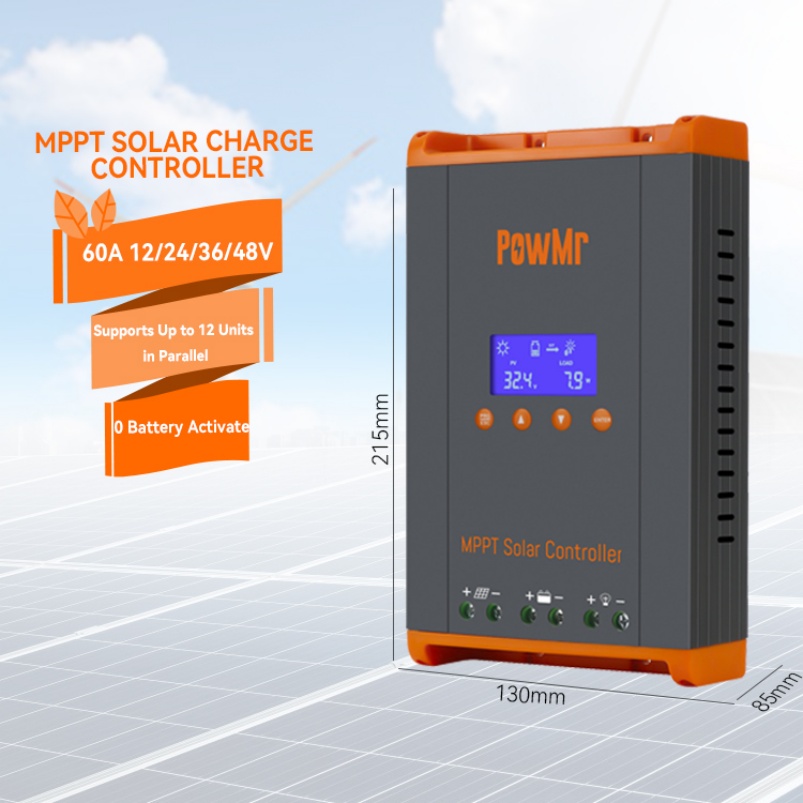

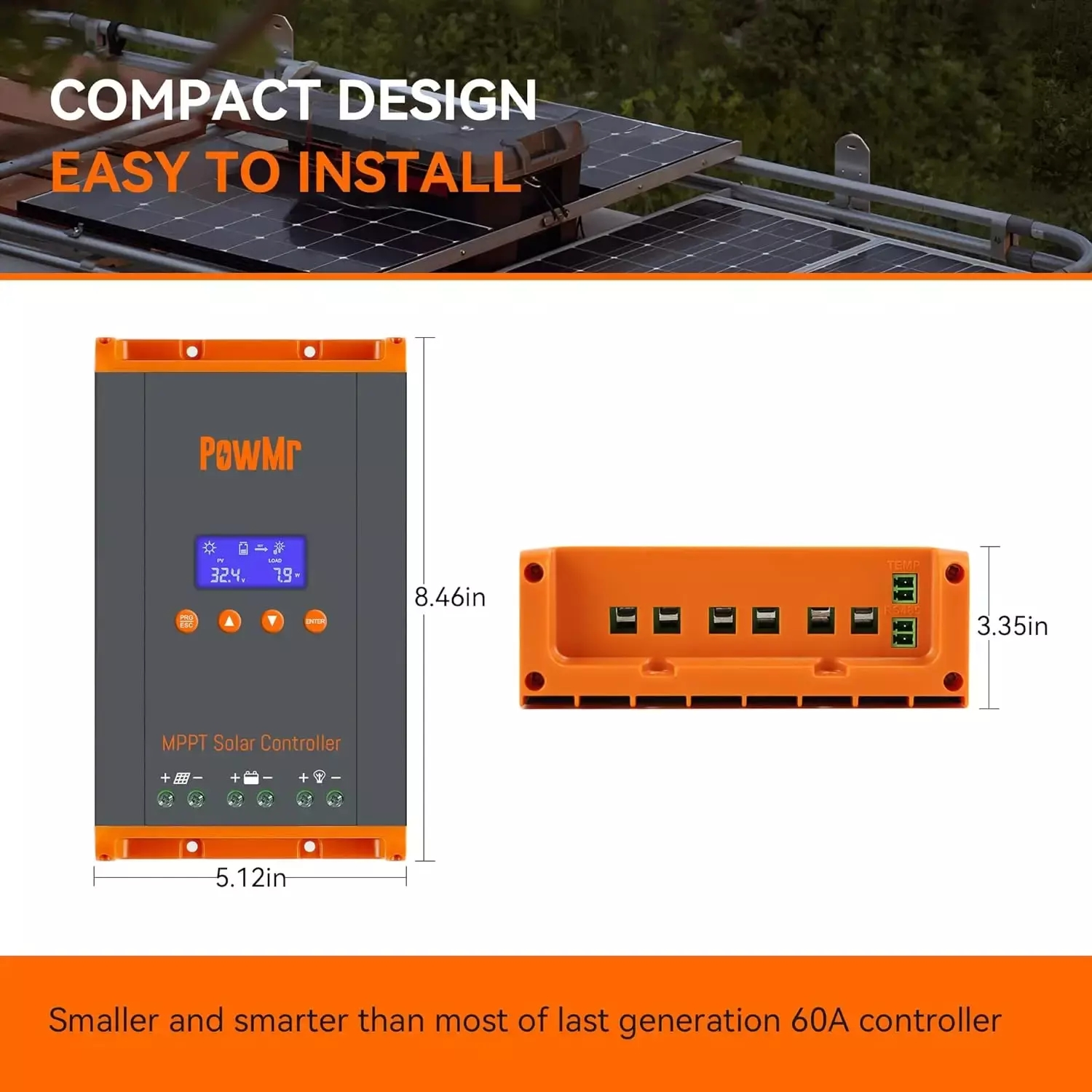

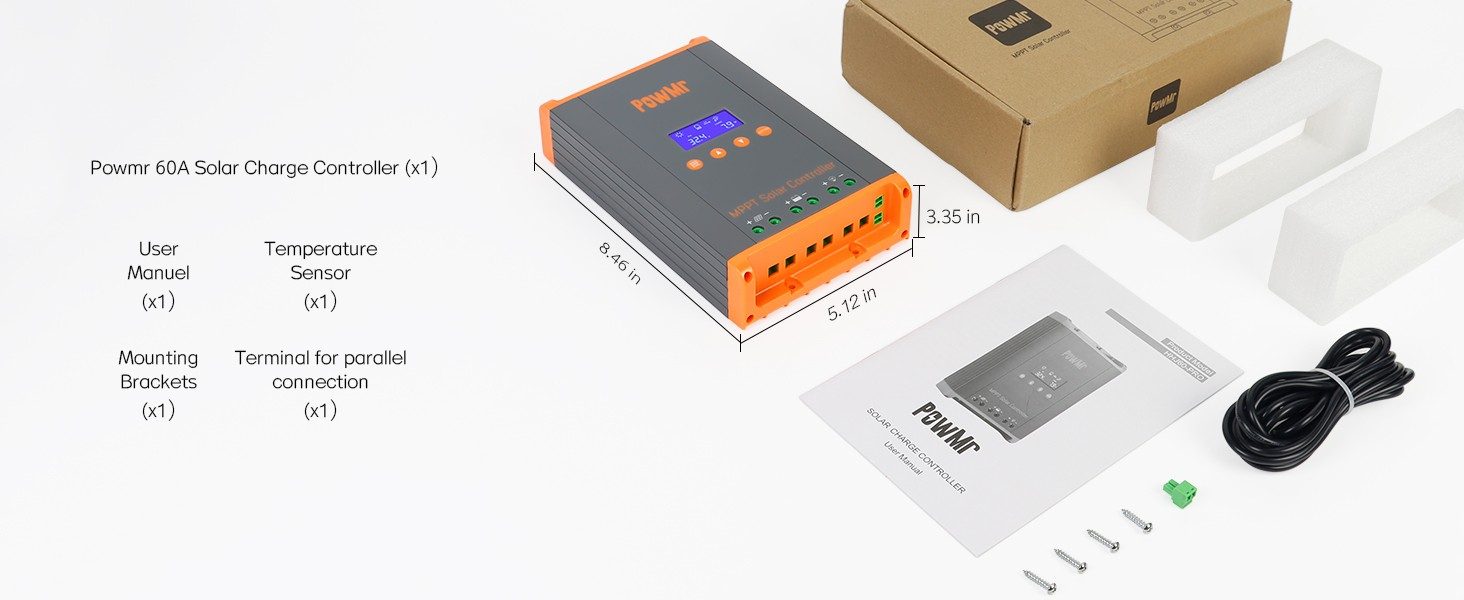

| Dimensions | 215x130x85mm |
| Net Weight | 990g / 2.18lb |
❓
Frequently Asked Questions
Q1: How to install and use the solar inverter?
A1: We provide English teaching manuals and detailed videos covering every step of disassembly, assembly, and operation.
Q2: What shipping options are available for international buyers?
A2: Items can be shipped by sea, air, or express directly to your doorstep. We assist in choosing the most suitable shipping service for your location.

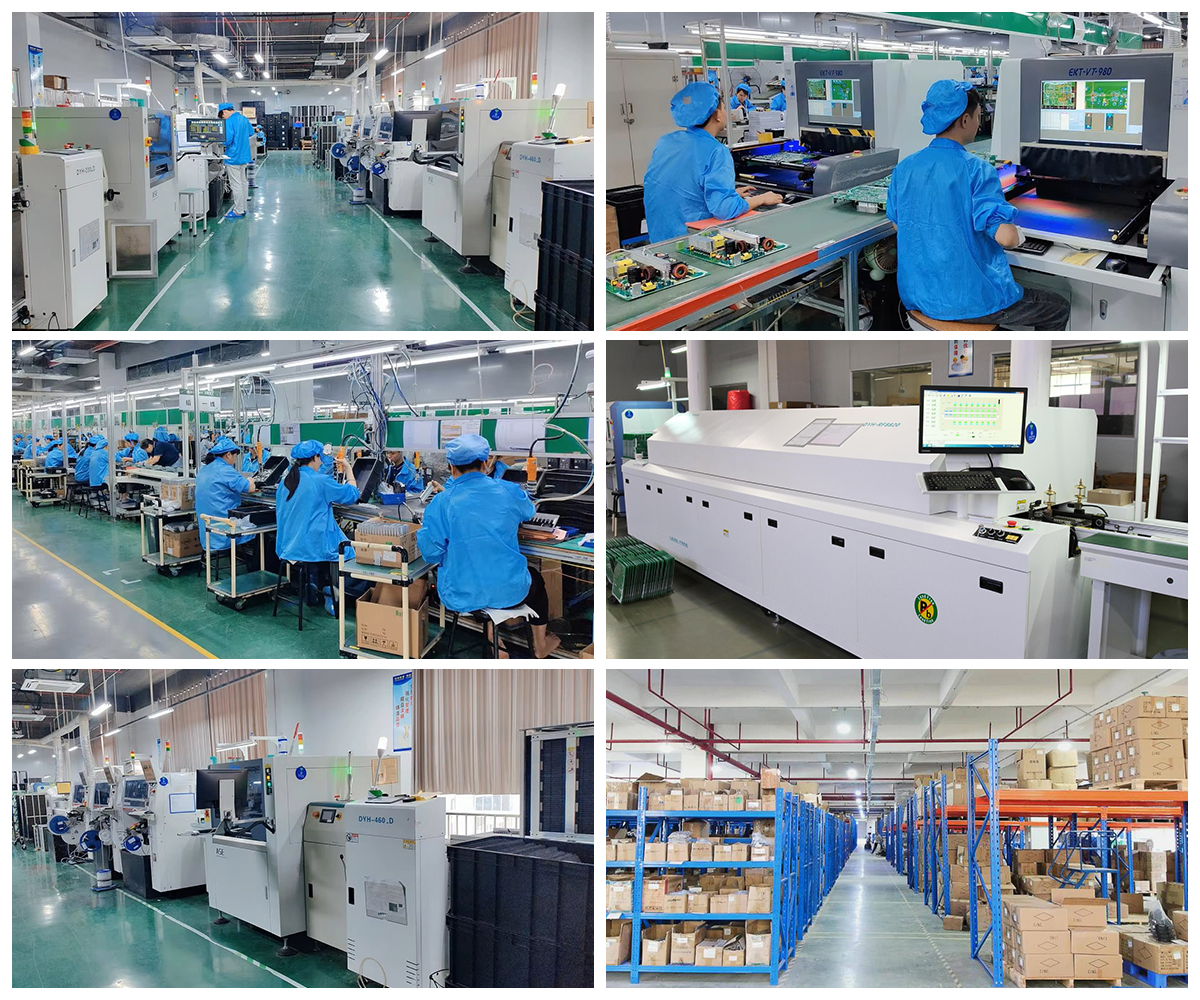

Q3: What is the monthly production capacity for these units?
A3: The current monthly capacity is approximately 20,000 to 30,000 pieces.
Q4: How is technical support handled after purchase?
A4: We provide lifetime online support. Our technical team is available for video calls to help resolve any operational issues.
Q5: Can the inverter be customized with specific branding?
A5: Yes, customization options include brand naming, machine colors, and unique designed patterns.
Q6: Is the payment process secure?
A6: All transactions are processed through secure global platforms that protect buyer interests until the items are received and confirmed.
