Single Phase 50Hz/60Hz Solar Inverter LCD 36V/48V 72V/96V Limiter Sensor Battery Grid Tie DC/AC Inverter for Solar Power
Products Description

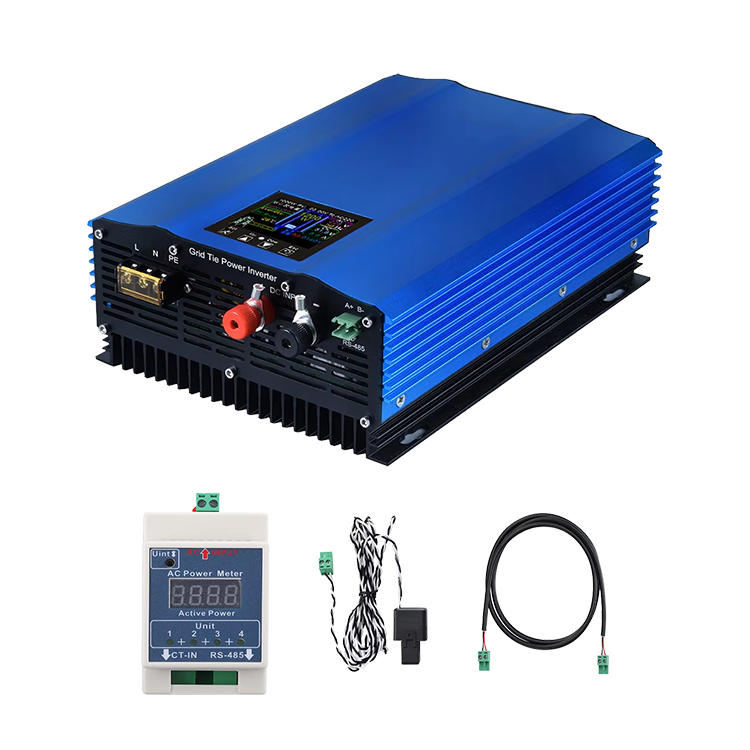

MPPT 1000W 1200W Battery Discharge Auto-Limit Solar DC24V 48V 72V 96V AC110V-240V Grid Tie Inverter with Limiter Sensor

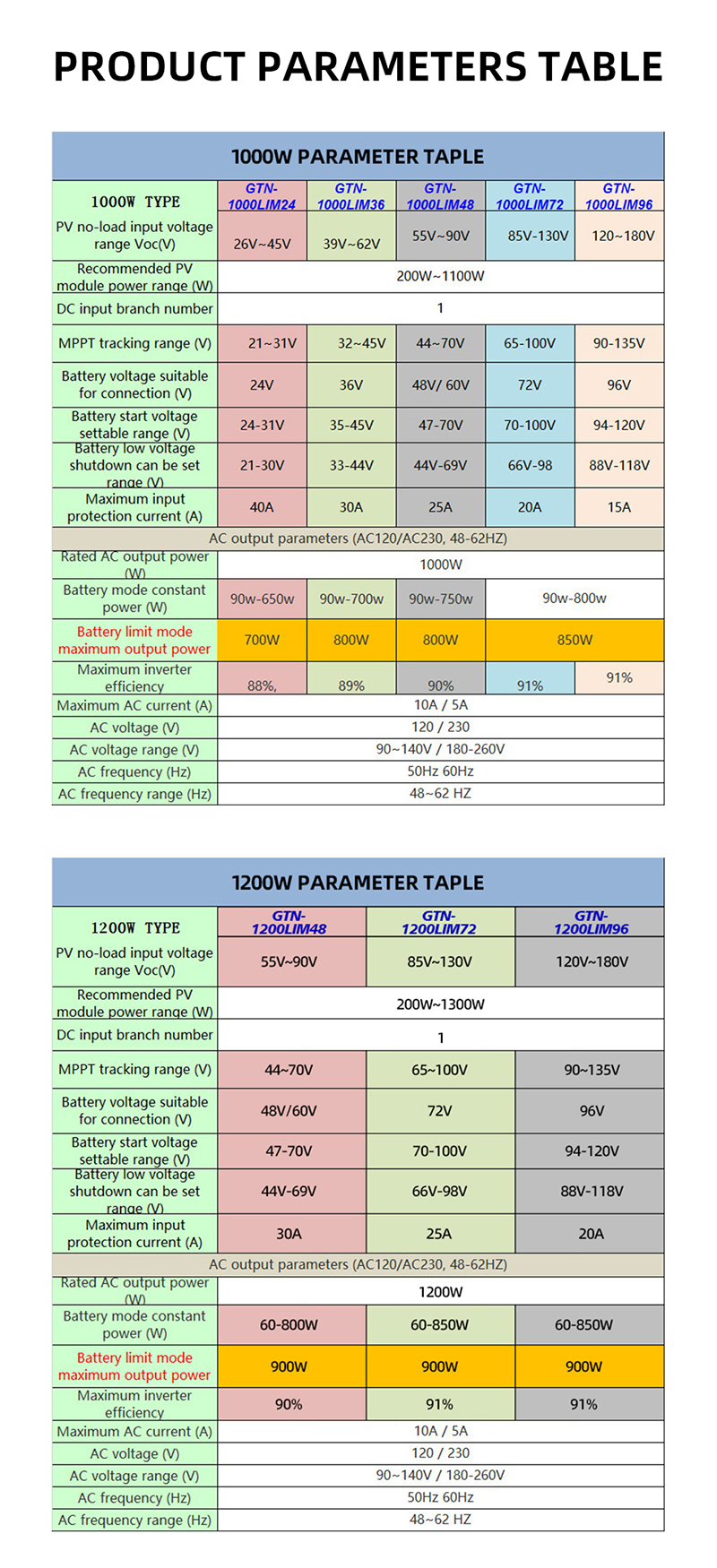

For 1000W MPPT solar grid tie inverter, 2 kinds of DC input voltage specifications can be selected:
- PV-voc voltage range: 26V~45V or 24V battery
- PV-voc voltage range: 40V-60V or 36V battery
For 1200W MPPT solar grid tie inverter, 3 kinds of DC input voltage specifications can be selected:
- PV-voc voltage range: 55V~90V or 48V battery
- PV-voc voltage range: 80V-125V or 72V battery
- PV-voc voltage range: 120V-180V or 96V battery
Frequently Asked Questions

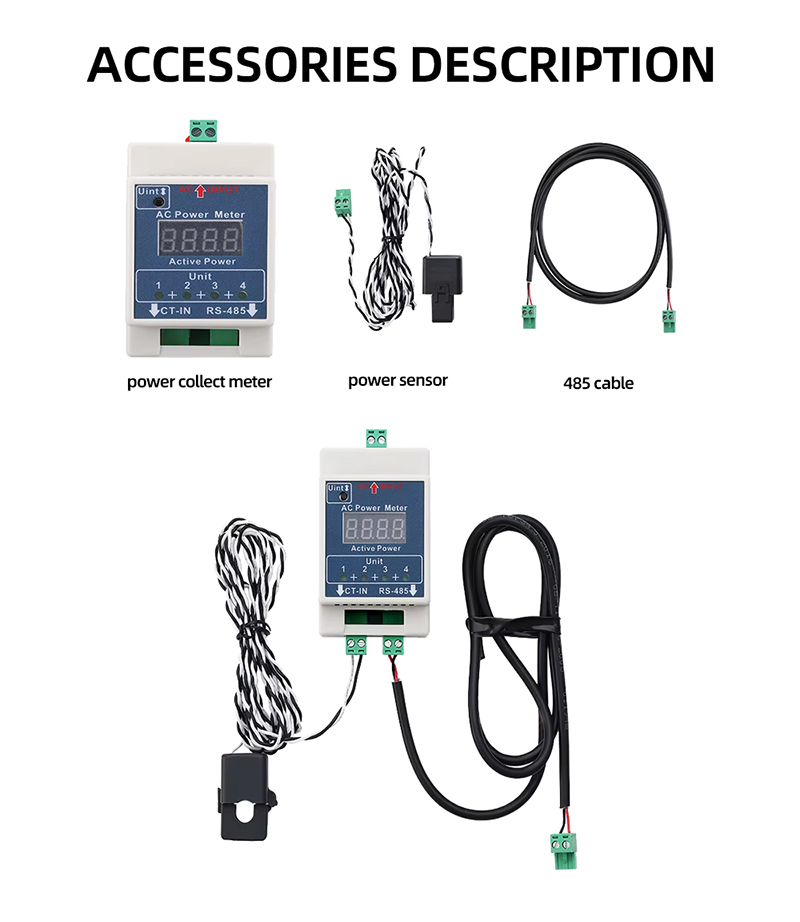

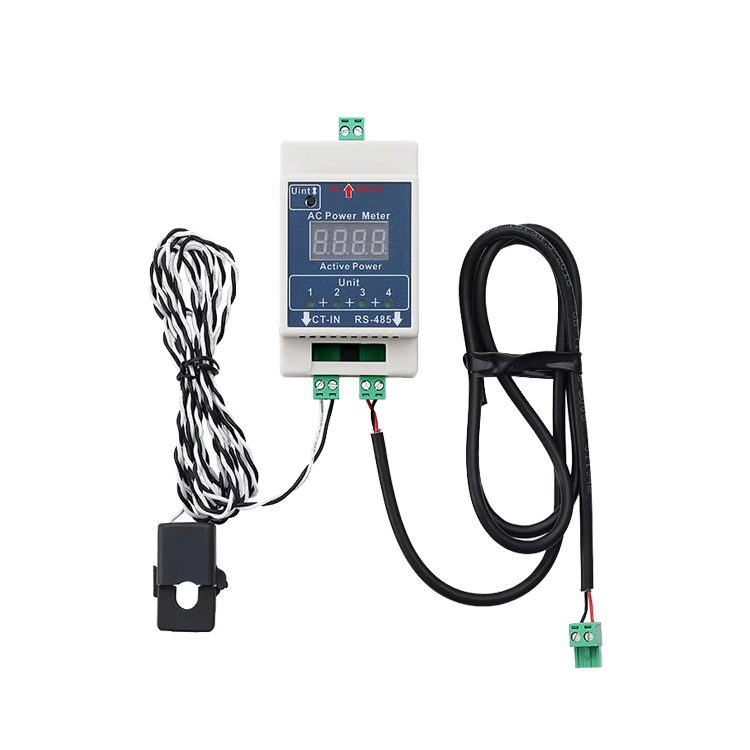

1. What is the function of the limiter sensor in this solar inverter?

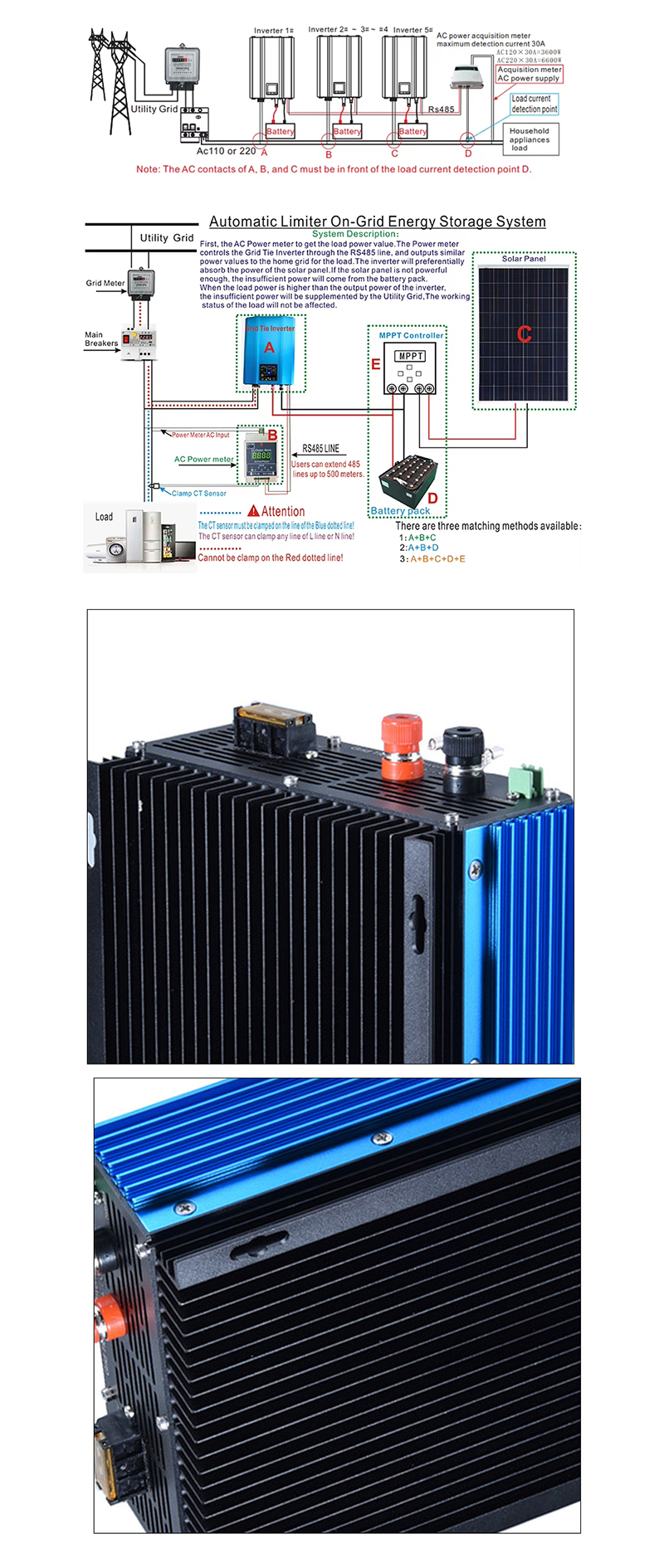

The limiter sensor ensures that the inverter only produces the power needed by the home loads, preventing excess power from being fed back into the public grid.
2. Can I use this inverter with both solar panels and batteries?
Yes, this MPPT grid tie inverter is designed to work with both PV solar panels and various battery voltages (24V, 36V, 48V, 72V, 96V) depending on the model selected.
3. Does it support both 50Hz and 60Hz grid frequencies?
Yes, the inverter is compatible with single-phase 50Hz and 60Hz systems, making it suitable for different international electrical standards.
4. How do I choose the correct DC input voltage for my system?
Selection depends on your PV-voc range or your battery voltage. For example, a 48V battery system should use the 55V-90V range model.
5. What are the main benefits of the MPPT technology?
Maximum Power Point Tracking (MPPT) optimizes the energy harvest from your solar panels by adjusting to the most efficient voltage/current levels in real-time.

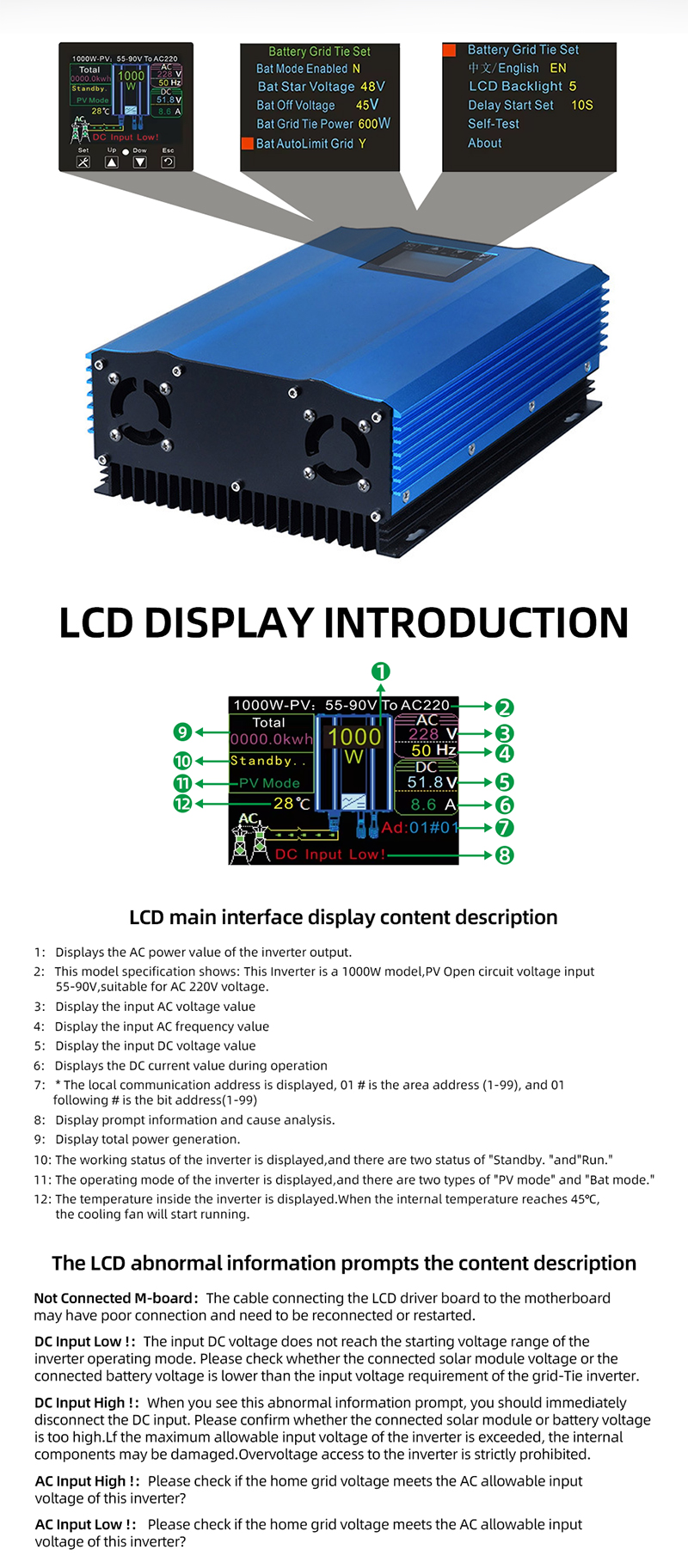

6. Is the LCD display easy to read for monitoring?
Yes, the built-in LCD screen provides real-time data on performance, input/output status, and system settings for easy management.
