All In One Stacked Lifepo4 Battery Solar Energy Storage Power System Home 48v 51.2v 50kwh Stacked Lifepo4 Battery

Product Description

Certifications
Certifications
Products Description
BMS Communication

Support All In One Smart Communication Function

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols.

We can also customize the communication content according to the protocol information provided. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.

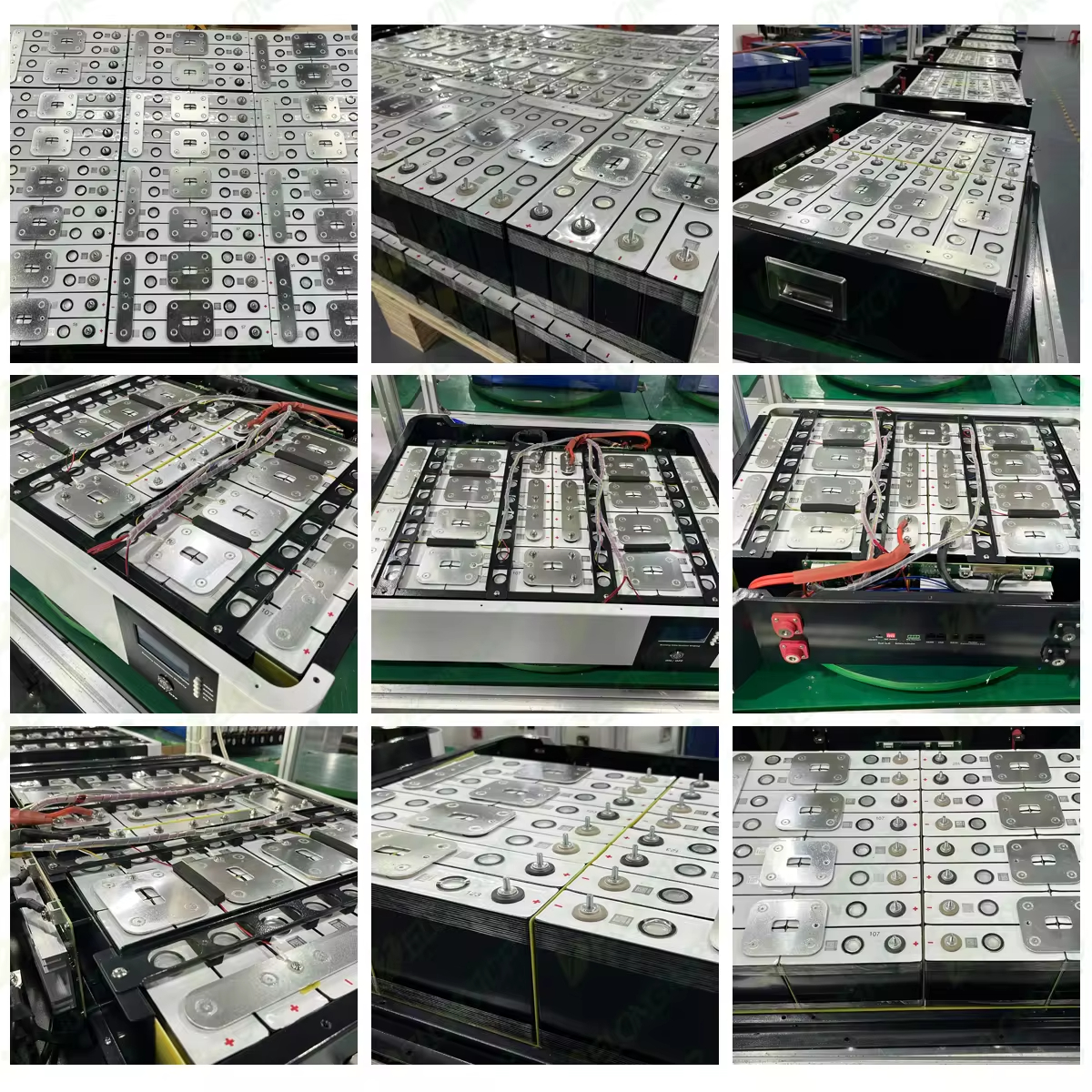

Battery Cell

What Battery Cell We Use:

As a professional supplier engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...

  • Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing.
  • Through a number of certification and testing, quality assurance.
  • Pouch cells: lighter, cheaper, and easy to customized in special sizes.
  • Prismatic cells: not easily deformed, stable performance, mature market, more popular at present.
Product Display
Product Name Solar Energy Storage Battery Cabinet 10KWH 20KWH 30KWH 40KWH 50KWH 48V 51.2V Home Battery Power Energy Storage Bank

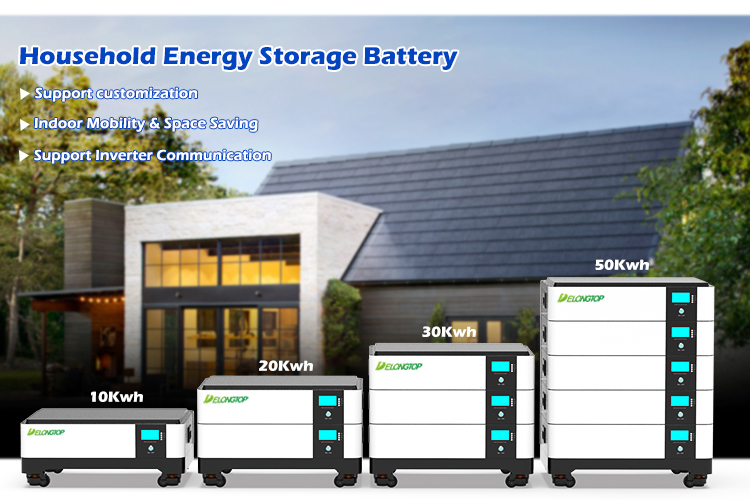

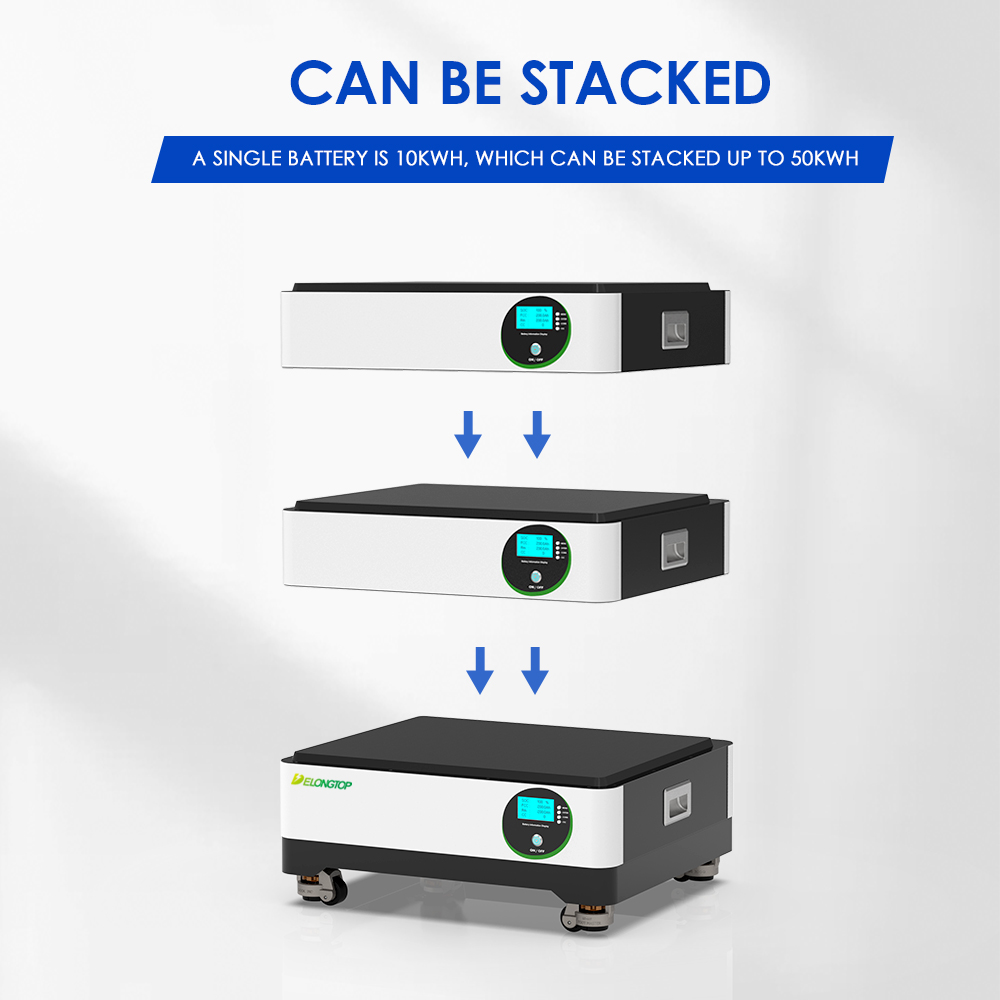

Free Stackable It can be stacked to 10KWH/ 20KWH/ 30KWH /40KWH/ 50KWH or more
Single Pack 51.2V 200AH 10KWH
Nominal Voltage 51.2V
Nominal Capacity 200AH(10KWH)
Charge Cut-off 58.4V
Disharge Cut-off 38.4V
Max. Charge Current <100A
Max. Discharge Current 200A
Battery Cell Prismatic Cell 16S1P
Dimension Metal Case 690*590*280mm (with Pulley Base)
Weight 93KG
Cycle Life 6000+ times
BMS Built in smart BMS supported RS485/CAN/RS232 Communication
LED Display Built accuracy power meter
Battery Case IP IP65
Accessories Pulley base, parallel cables, communication cables, user manual

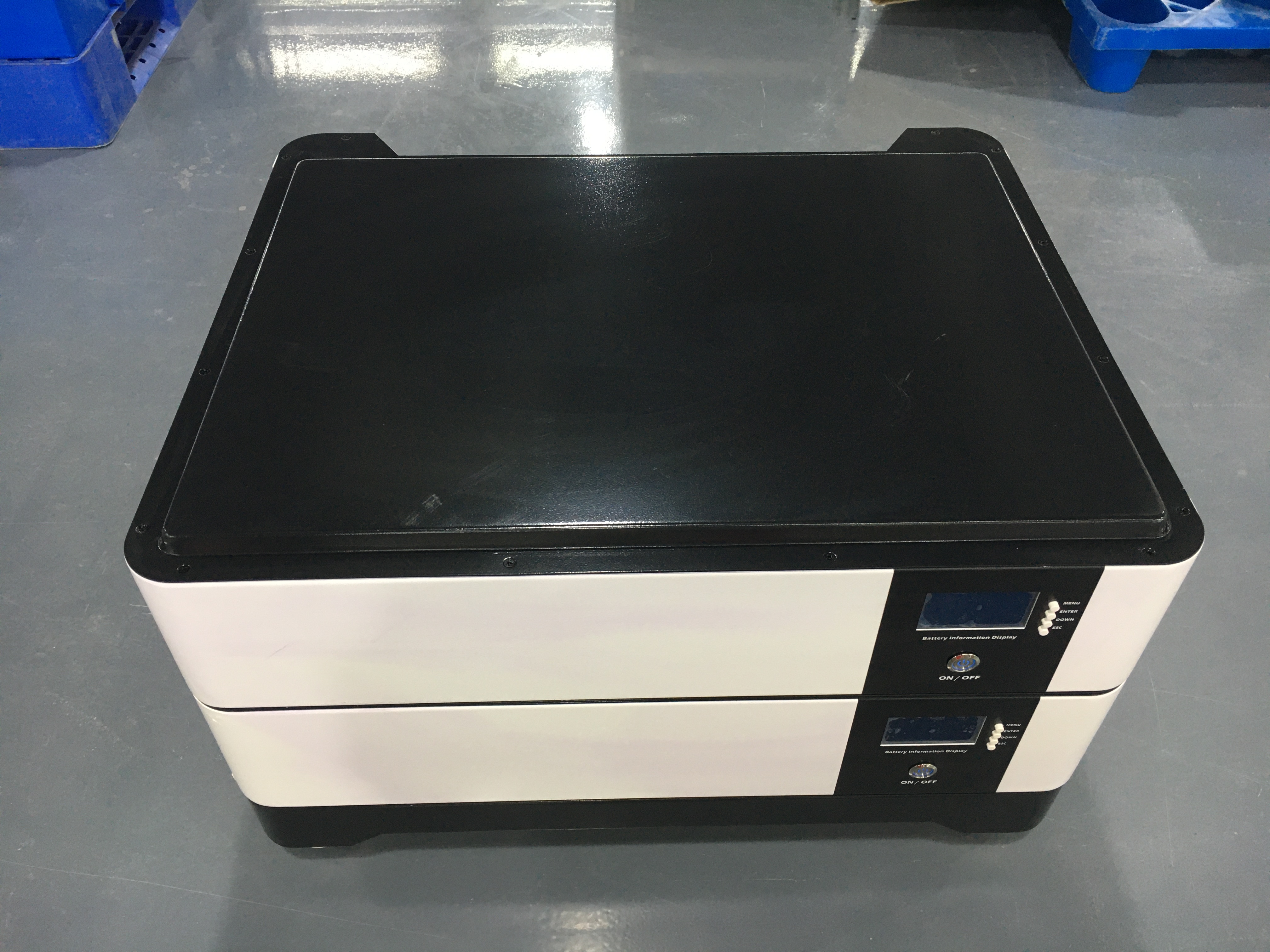

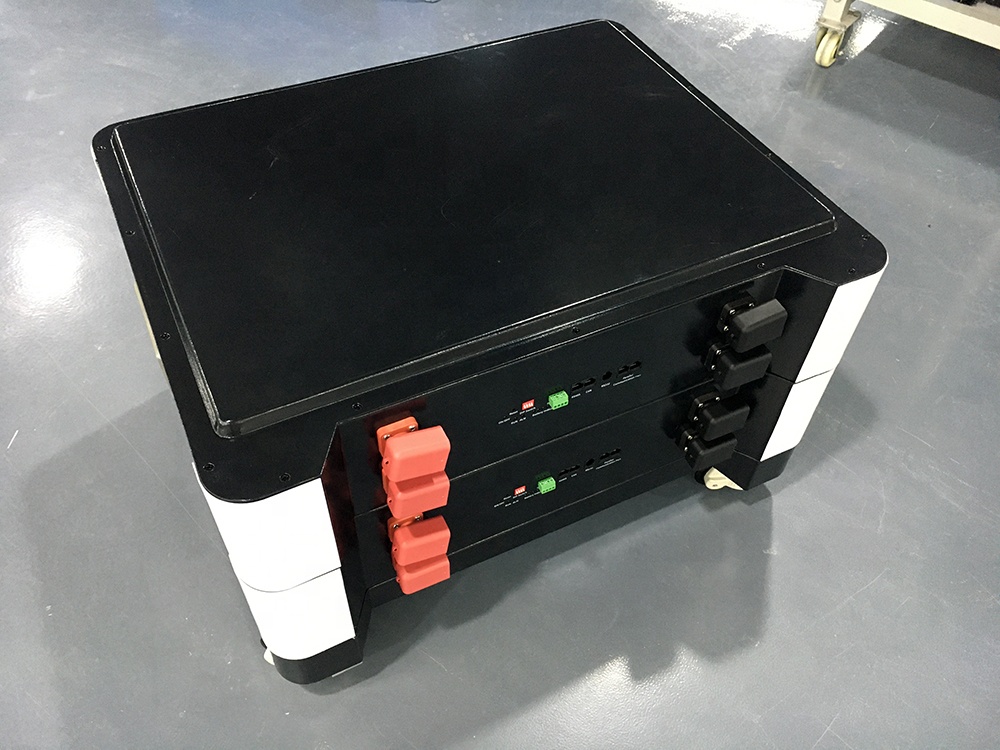

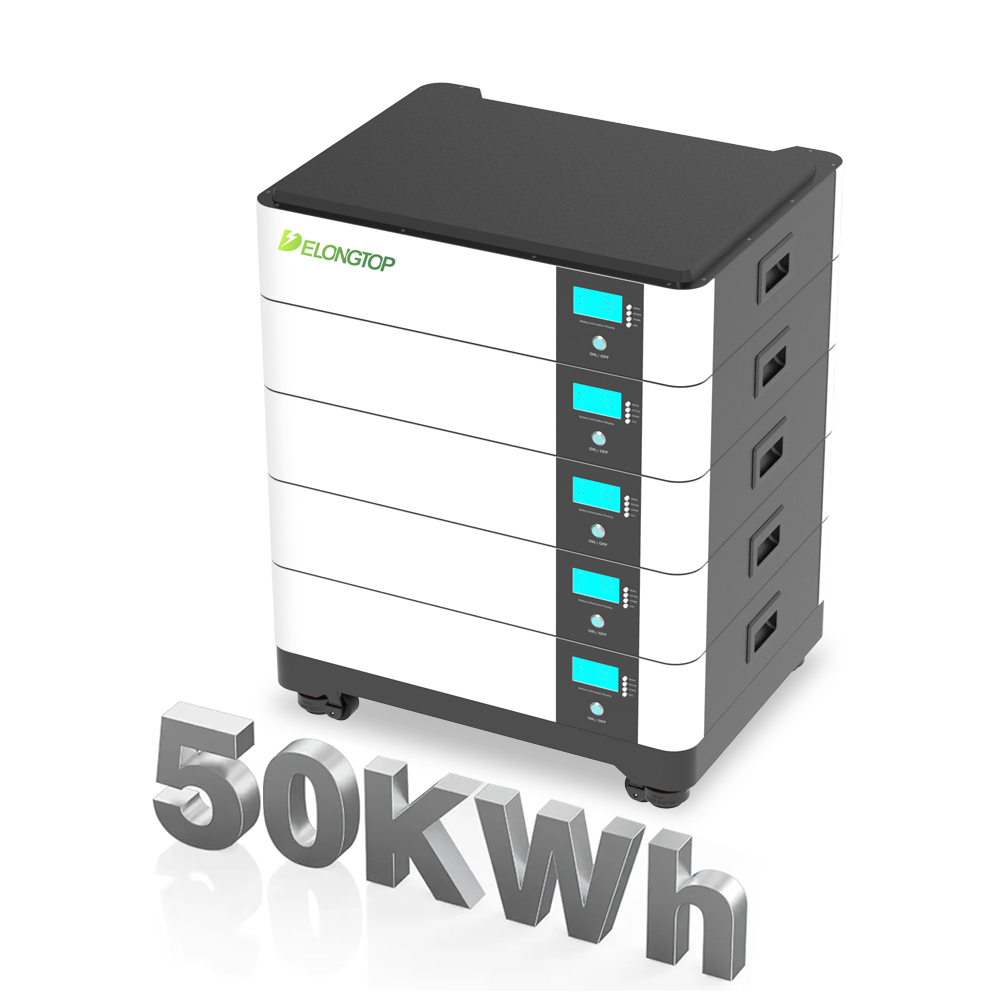

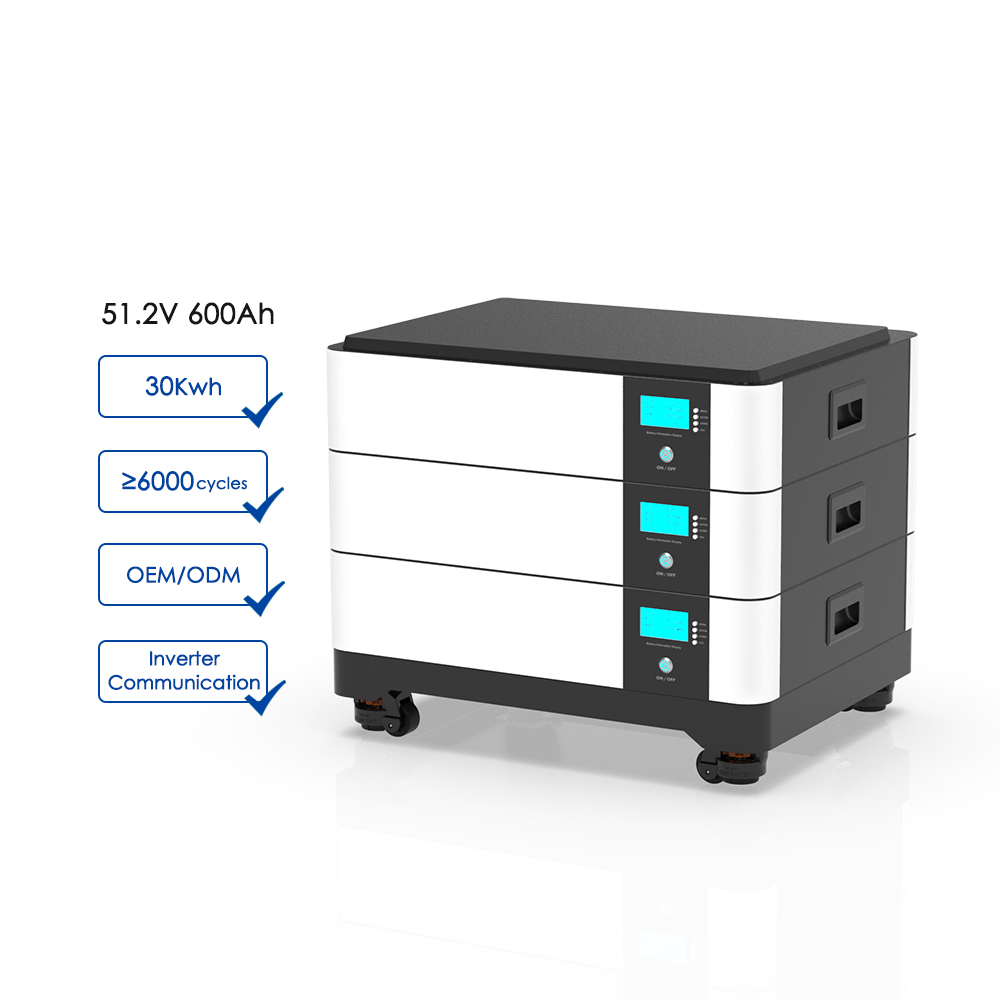

Product Images

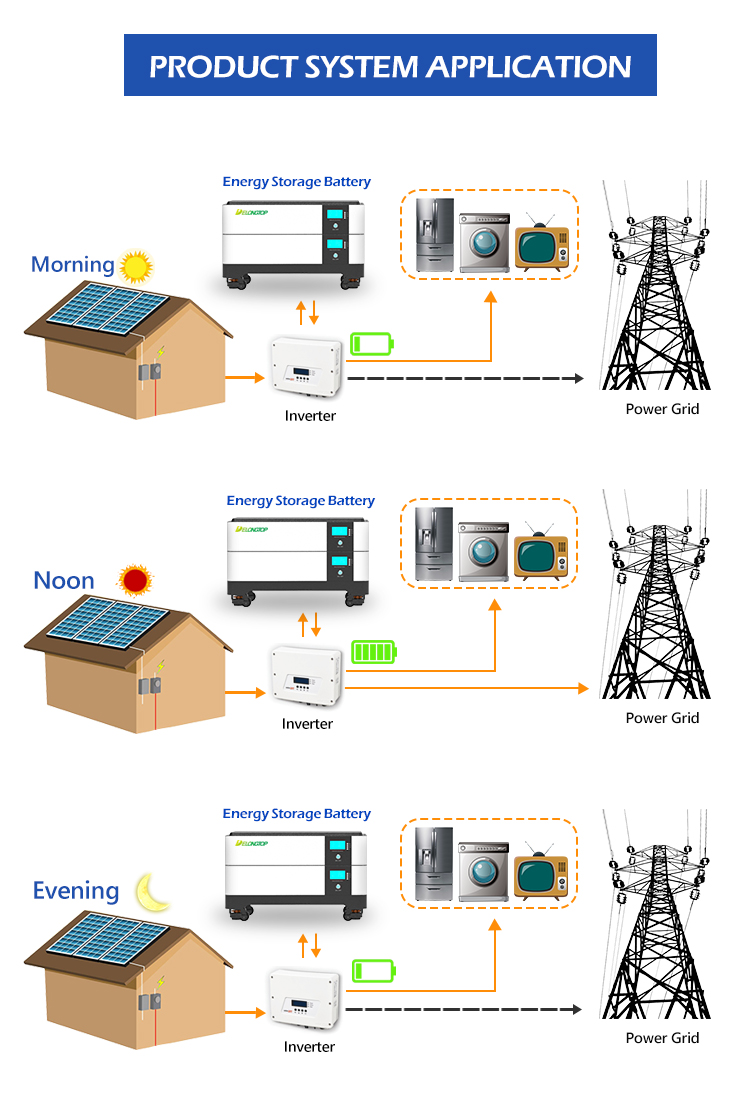

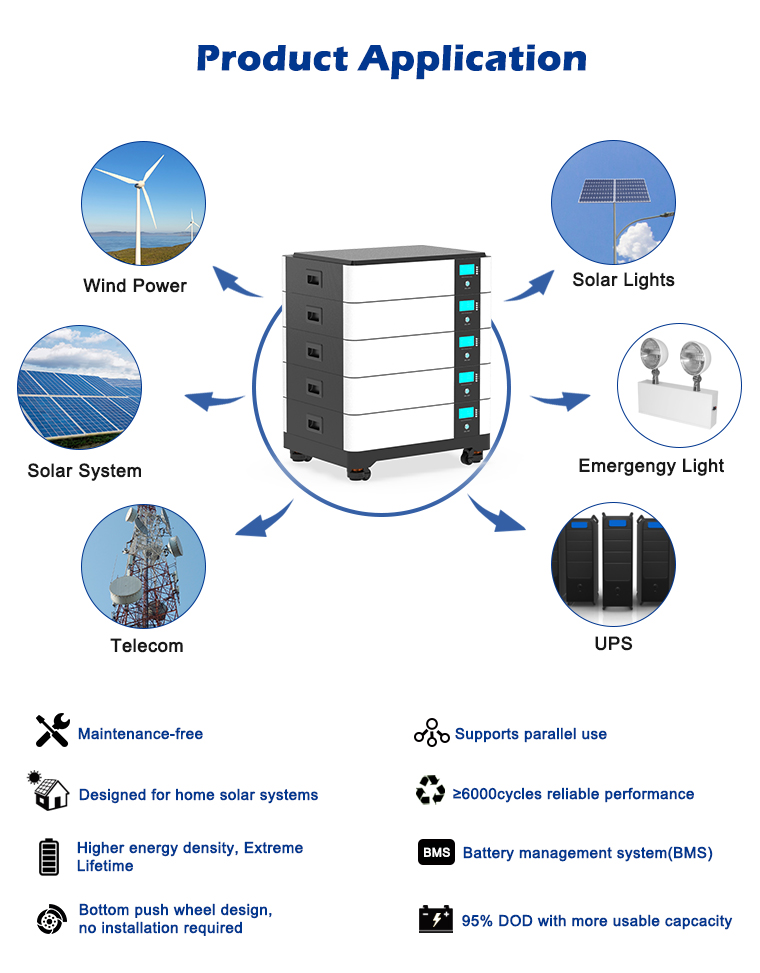

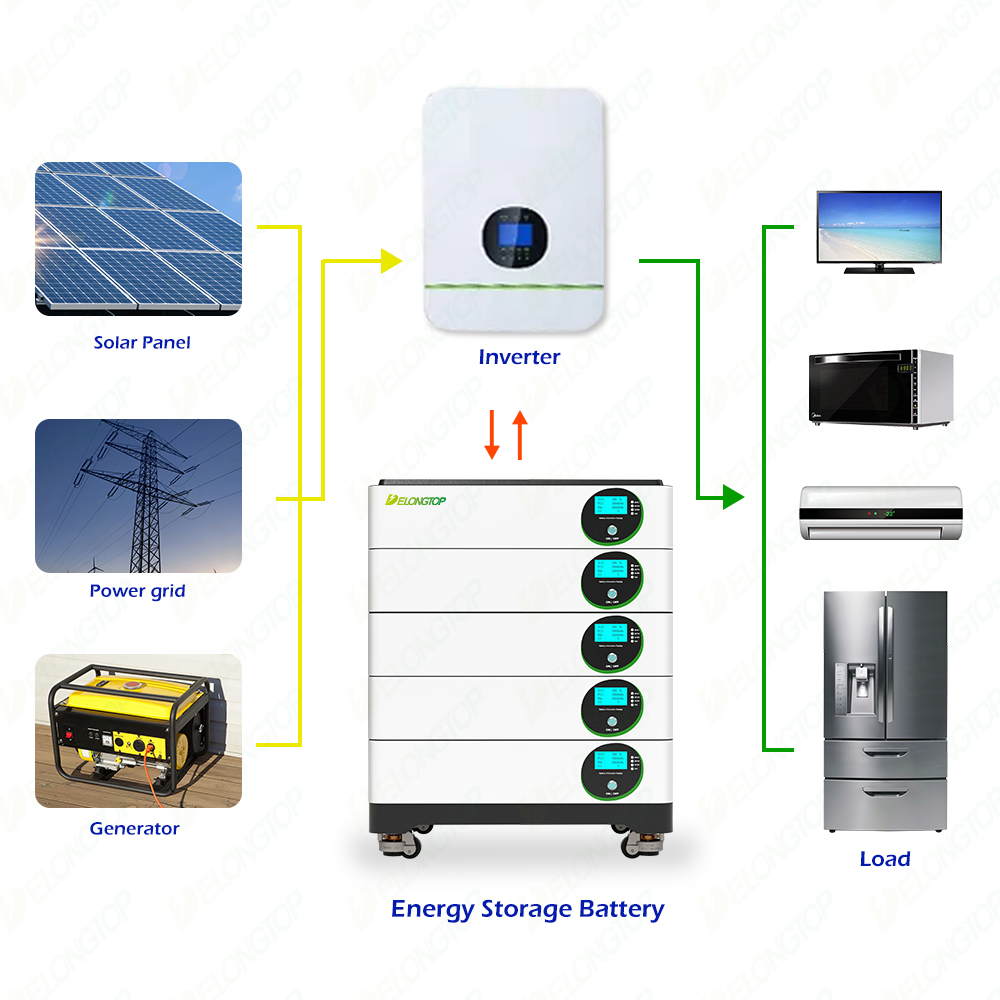

Product Application
Why Choose Us
Customer Reviews
Frequently Asked Questions
Q1: What are there included for a battery or pack?
A1: Battery case, BMS, battery pack, customized connector, and charger.
Q2: How often should I recharge the battery?
A2: Usually every 2 months to recharge the battery pack. Charging time depends on the charger current (e.g., 20A charger for 12V 100Ah battery takes about 5 hours).
Q3: What's the lead time for samples and bulk orders?
A3: Small quantities can be finished in 3-5 days; bulk orders take 10-25 days depending on the quantity. Shipping via Fedex, UPS, TNT or sea freight for parcels over 50KG.
Q4: What is your warranty policy?
A4: We offer a 10-year warranty for all our LiFePO4 battery packs. We ensure at least 6000 cycle life, which translates to at least 10 years under normal daily usage.
Q5: Can I customize the size of the battery?
A5: Yes, customization is available if the order meets the workable MOQ.
Q6: Can we put different LiFePO4 battery packs in parallel or series?
A6: Yes, but ensure the voltage of each battery is the same before connecting. It is recommended to use the same charge rate and avoid mixing discharged and undischarged batteries.
