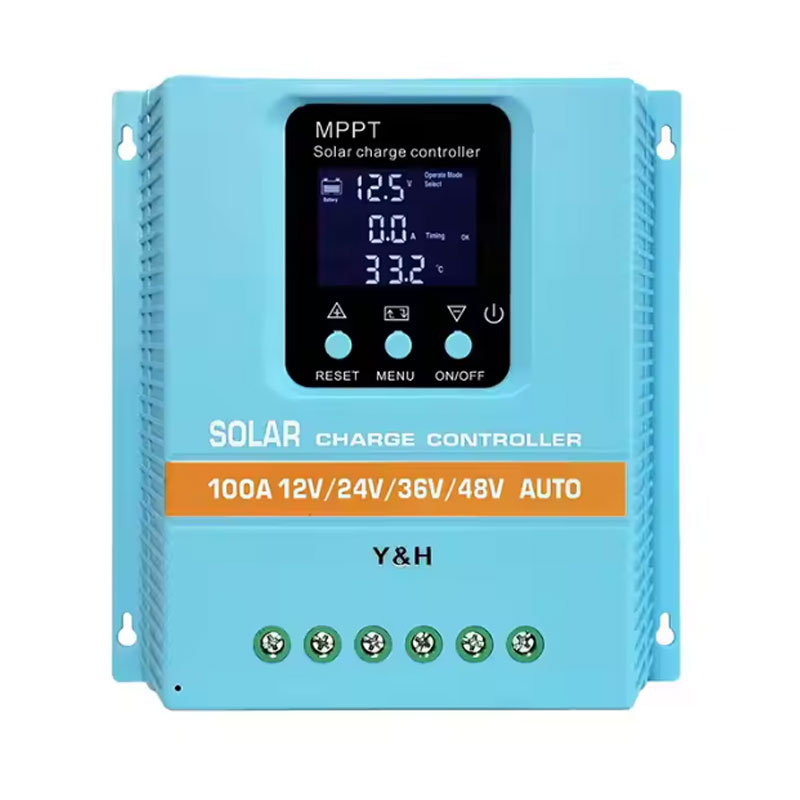

Y&H MPPT100A Solar Charge Controller 12V 24V 36V 48V LCD Display Solar Panel Battery Intelligent Regulator for Lead-acid/Lithium

1 / 5

Y&H MPPT100A Solar Charge Controller 12V 24V 36V 48V LCD Display Solar Panel Battery Intelligent Regulator for Lead-acid/Lithium

Send Inquiry

Product Description

Products Description

This solar charge controller utilizes the most advanced MPPT control algorithm, allowing the maximum power point of the PV array to be quickly tracked in any environment. This significantly improves solar energy utilization. It is ideal for communication base stations, home power supply systems, traffic lights, solar street lamps, and courtyard lighting systems.

Key Improvements & Comparison:

Visualization: Real-time display of solar panel voltage and PV input parameters.
Accuracy: Precise load mode timing with an error margin of only 1-2 seconds.

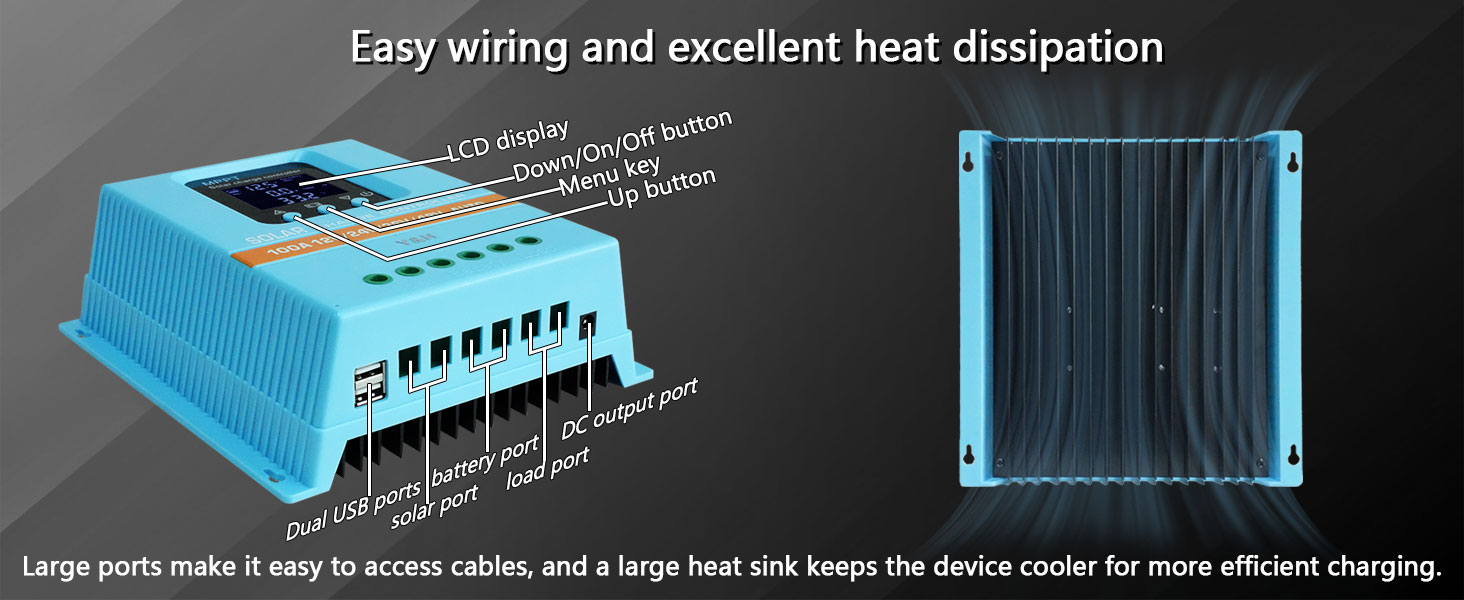

Heat Dissipation: Increased radiator gear spacing for natural cooling, improving charging efficiency.

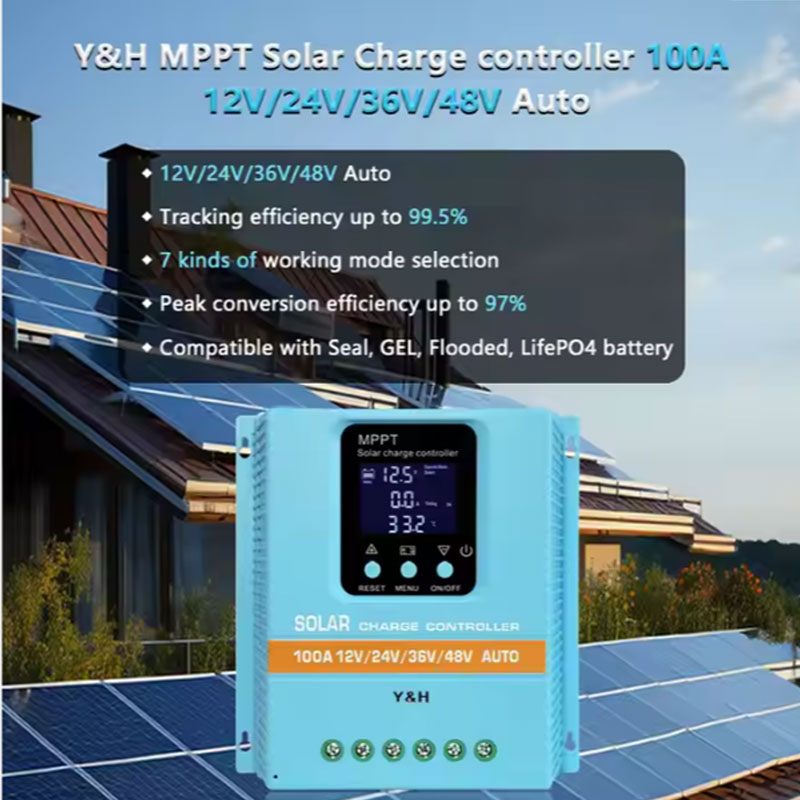

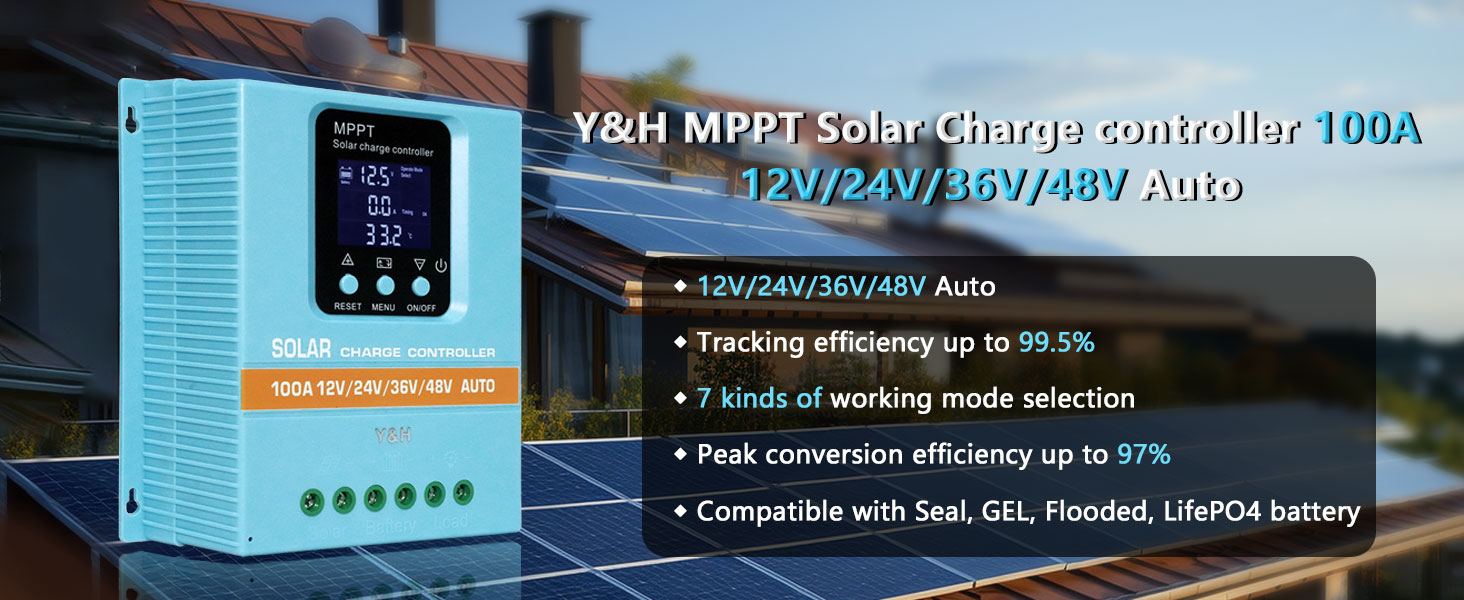

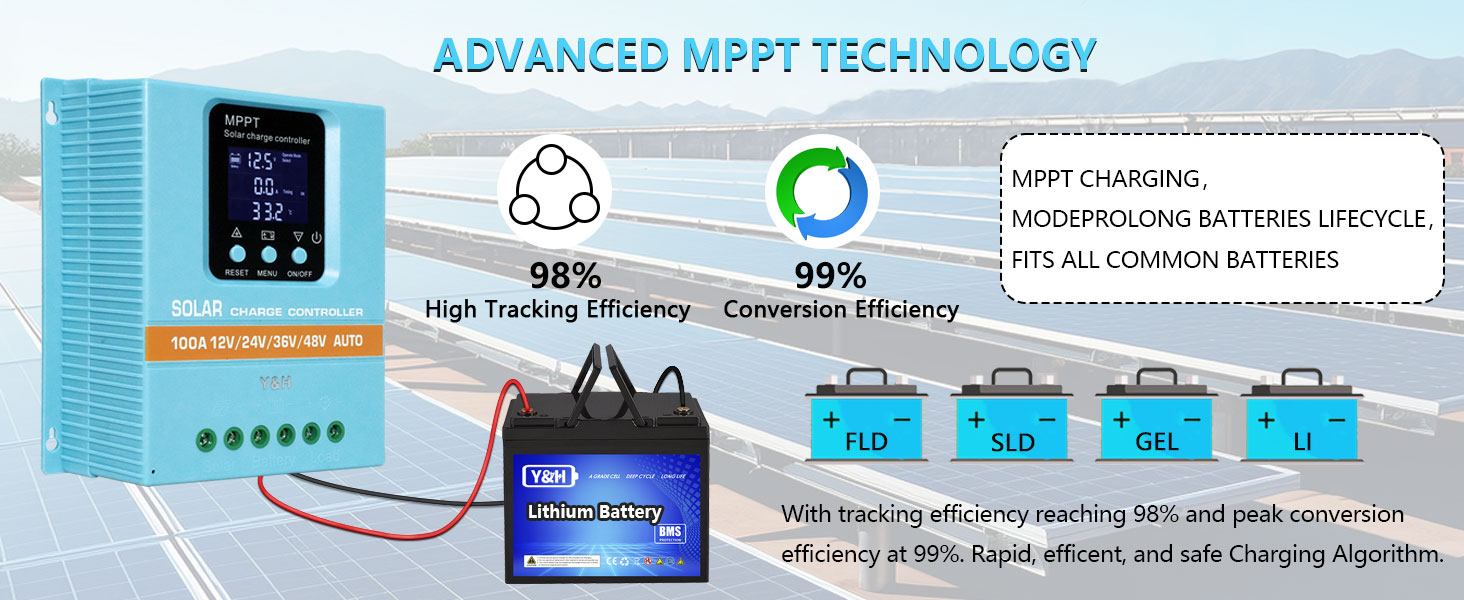

✓ Advanced MPPT technology with tracking efficiency ≥ 99.5%

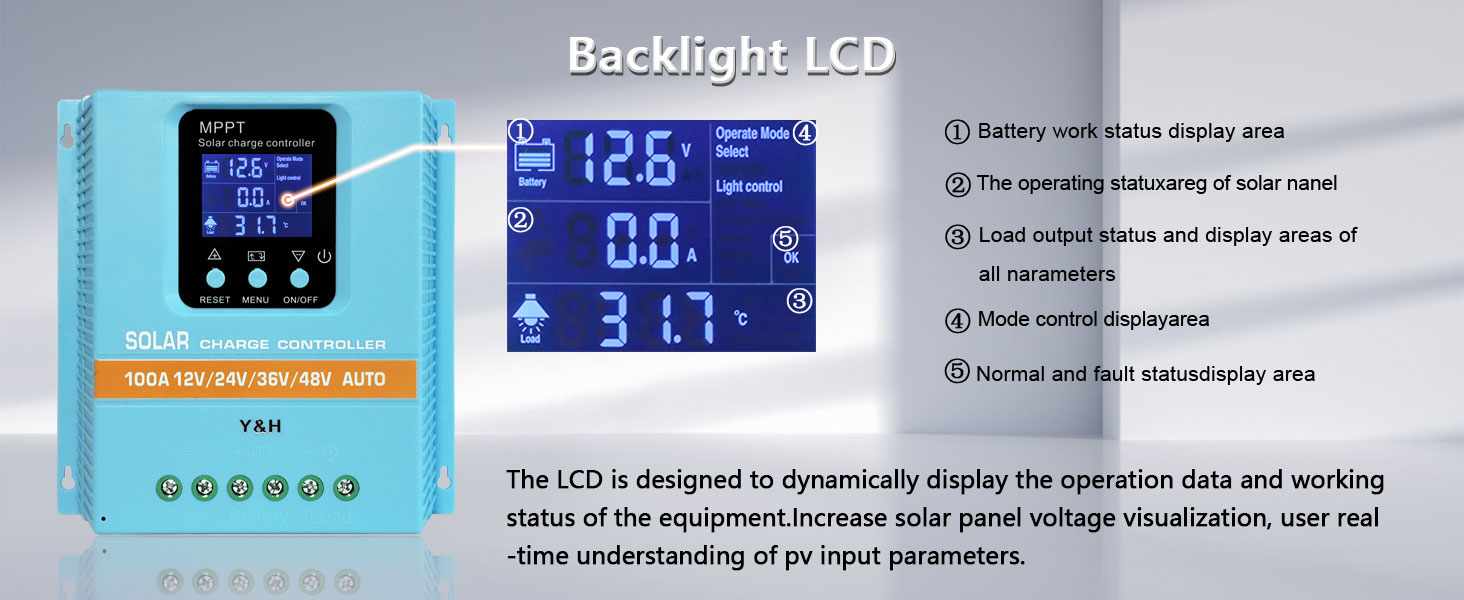

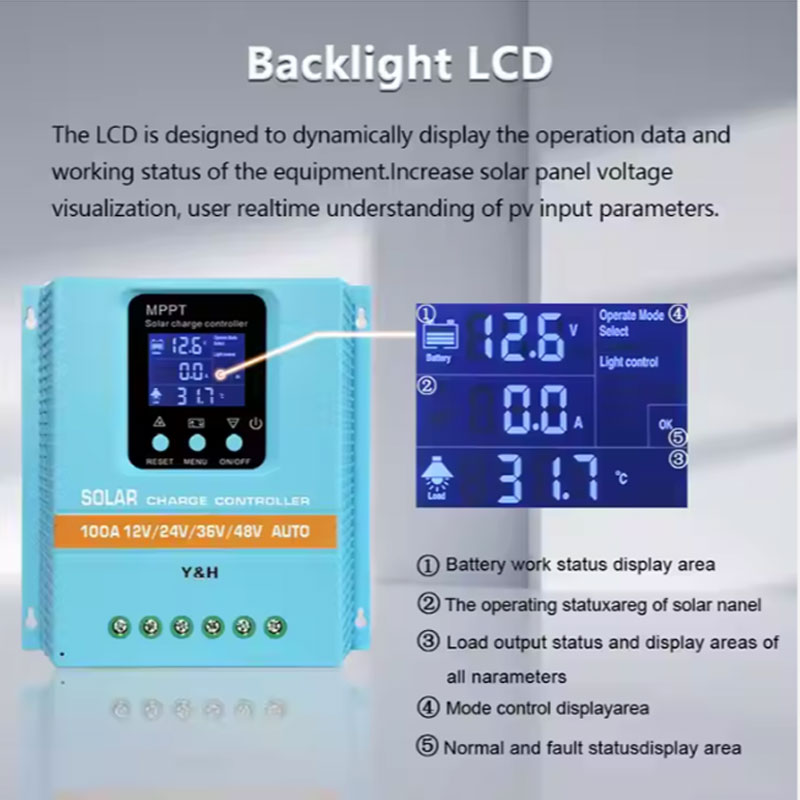

✓ LCD display for dynamic operation data and status

✓ Compatible with Seal, GEL, Flooded, and LiFePO4 batteries

✓ Dual USB 5V charging ports (2A total output)

✓ 12V/24V/36V/48V automatic identification

✓ Comprehensive Protection: Over-voltage, Over-current, and Over-temperature

7 Working Mode Selections

1. Charging Mode

Standard mode focus on battery charging without discharge.

2. Light Control

Starts discharge 10 mins after dusk; stops 10 mins after dawn.

3. Light + Time Delay

Starts at night with a programmable countdown timer (up to 23:59).

4. Universal Mode

Continuous discharge under trouble-free conditions.

5. Manual Mode

User-controlled discharge toggle via interface buttons.

6. Timing Mode

Regular scheduled opening or closing of discharge.

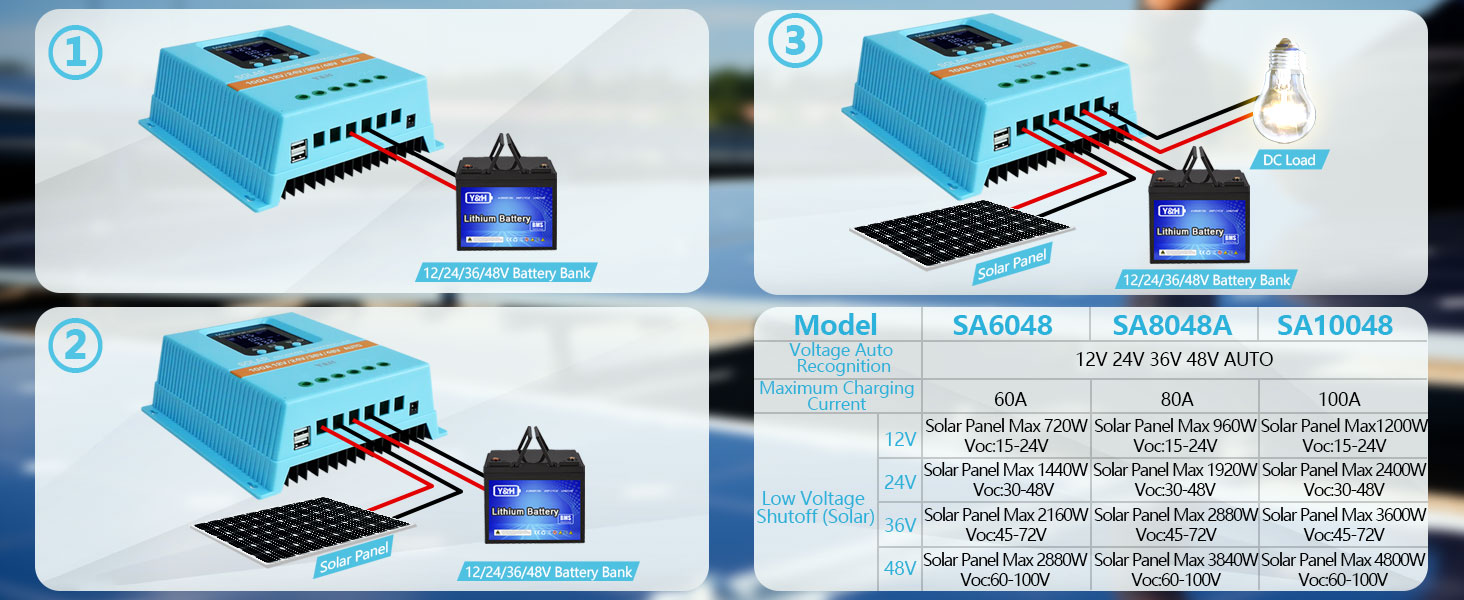

Technical Specifications

Model	SA4860A	SA4880A	SA48100A
Voltage Auto-Recognition	12V / 24V / 36V / 48V AUTO
Max Charging Current	60A	80A	100A

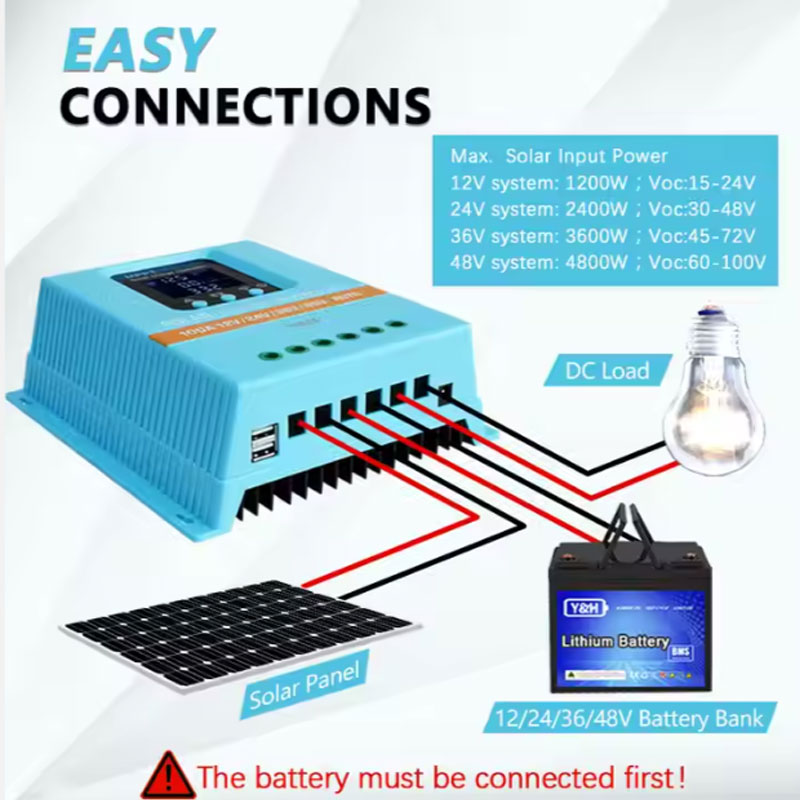

Max PV Input (12V Battery)	720W (Voc 15-24V)	960W (Voc 15-24V)	1200W (Voc 15-24V)
Max PV Input (24V Battery)	1440W (Voc 30-48V)	1920W (Voc 30-48V)	2400W (Voc 30-48V)
Max PV Input (48V Battery)	2880W (Voc 60-100V)	3840W (Voc 60-100V)	4800W (Voc 60-100V)
Low Voltage Shutoff	Adjustable (e.g., 38V for 48V system)
Float Charge Voltage	Adjustable (e.g., 56.8V default for 48V)
USB Output	5V / 2A
Weight	8.1kg	8.7kg	9.4kg

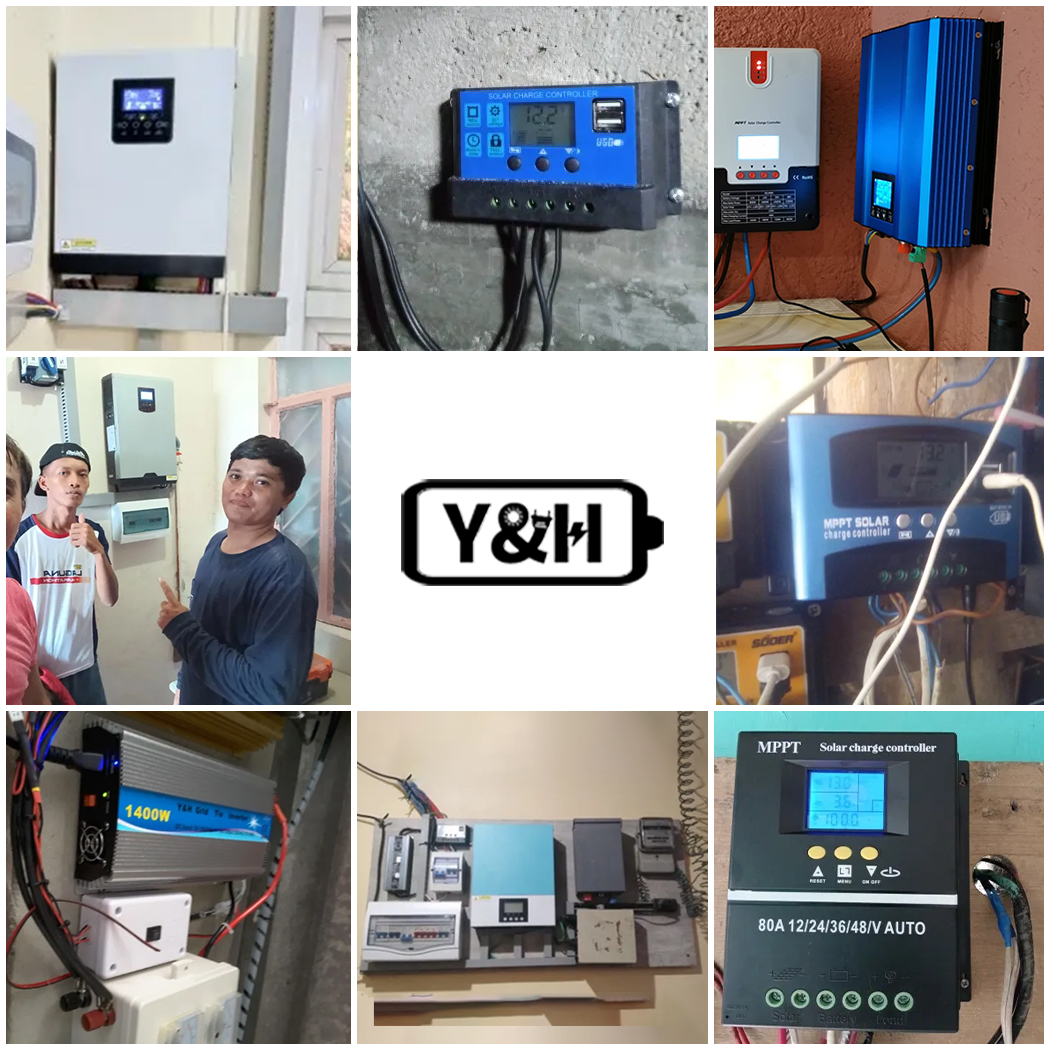

Product Gallery

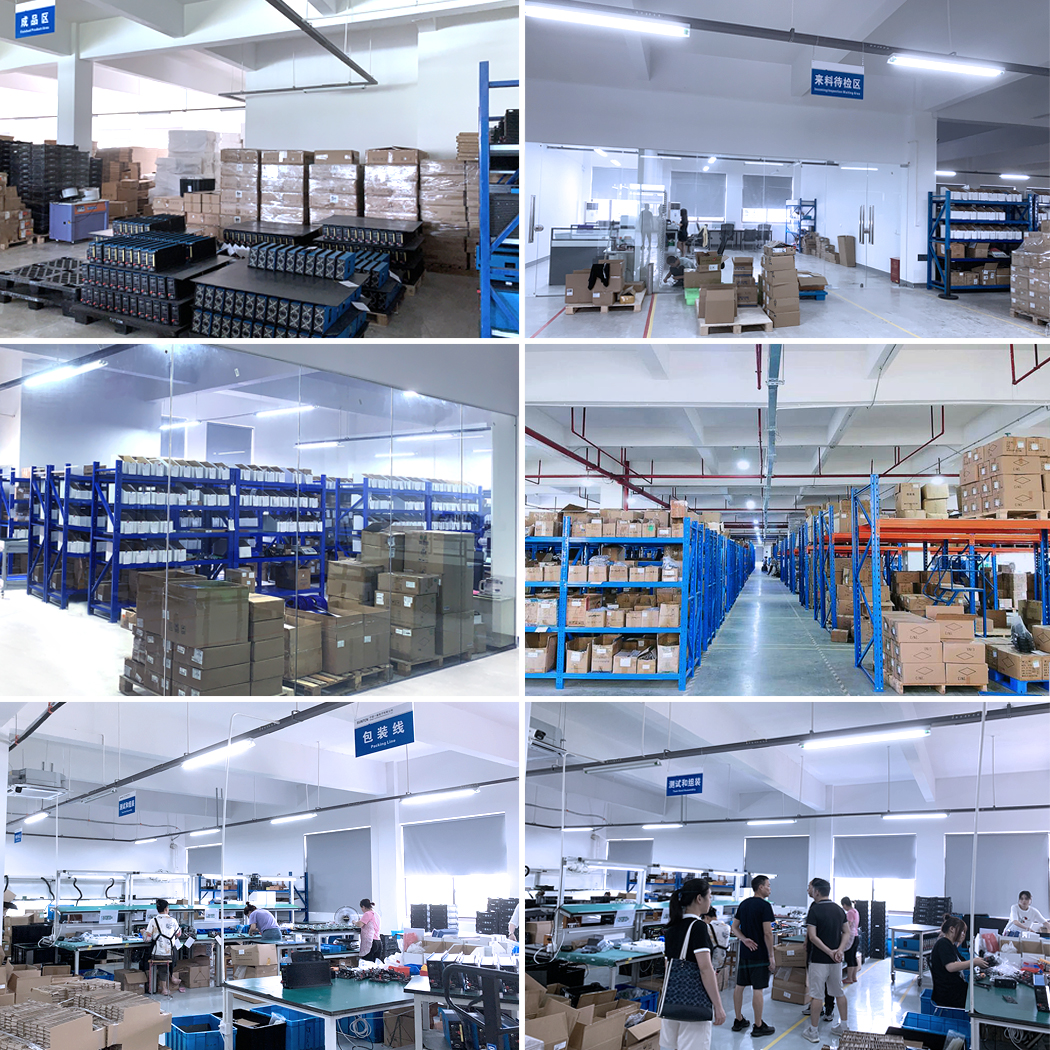

Production & Quality Control

Our technical team specializes in the photovoltaic field, committed to providing integrated solar solutions including hybrid inverters, MPPT solar controllers, and LiFePO4 batteries. We ensure every unit undergoes rigorous testing before delivery.

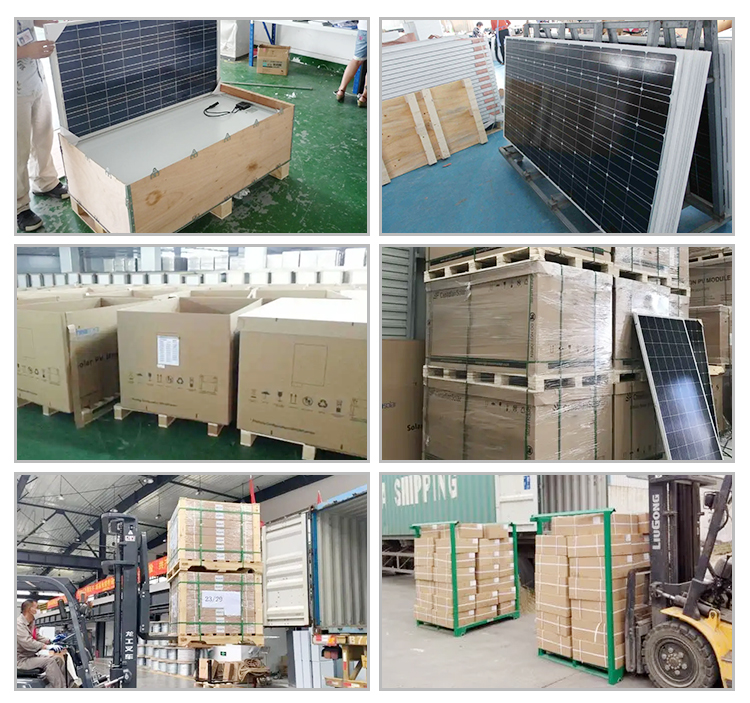

Packaging & Certifications

Frequently Asked Questions

How efficient is the MPPT tracking on this controller?

The controller uses advanced MPPT maximum power point tracking technology, reaching a tracking efficiency of no less than 99.5%.

What types of batteries are compatible with this device?

It is compatible with multiple battery types including Seal, GEL, Flooded, and Lithium Iron Phosphate (LiFePO4) batteries.

Can it automatically detect my system voltage?

Yes, the controller features 12V/24V/36V/48V automatic identification for seamless integration into various solar setups.

What protection features are built-in?

It includes over-voltage protection, over-current protection, and over-temperature protection (MOS shutdown at 85°C) to ensure system safety.

Are the parameters adjustable by the user?

Yes, several parameters such as low voltage shutoff and float charge voltage can be modified and saved by the user via the interface.

Does it support mobile device charging?

The controller is equipped with dual USB 5V ports with a 2A output, perfect for charging mobile phones or other small electronics.
