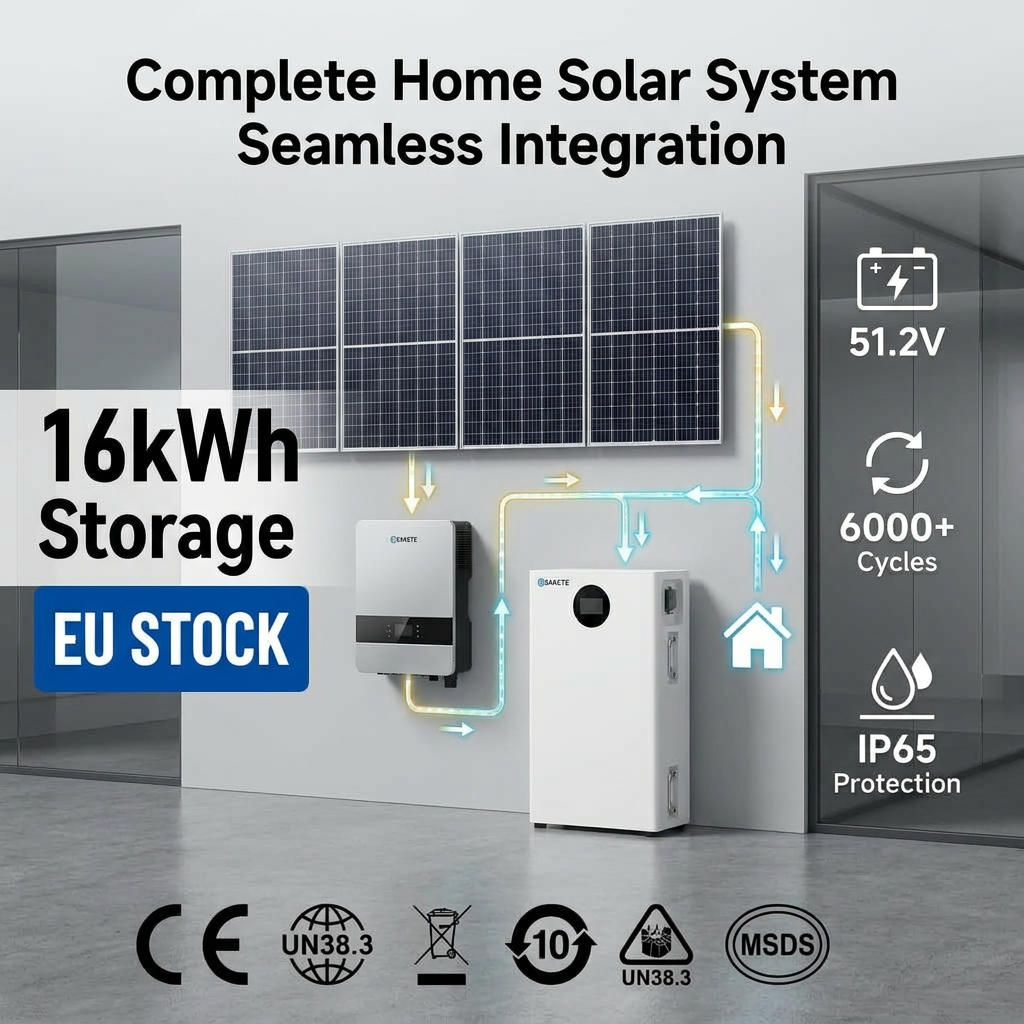

Sunket Factory Price 16kWh 51.2V Lithium Battery LiFePO4 Battery Pack for Solar Energy Storage System Wall Mount

Product Description

Overview

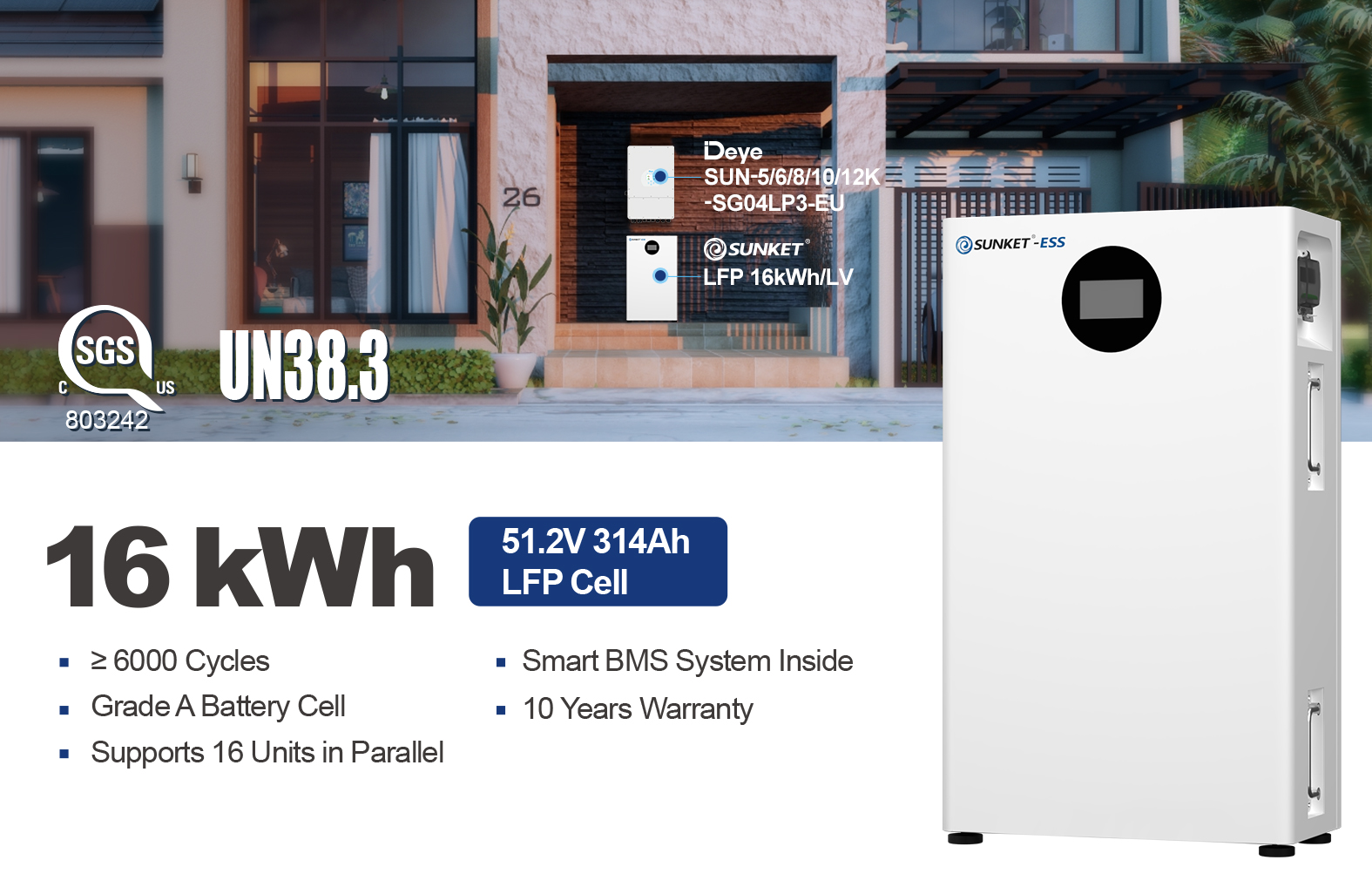

Product Overview

Product Information

  • Sunket Floor-Mounted 16kWh/LV Lithium Battery
  • Long-Lasting Storage: Sunket 16kWh LiFePO4 battery, up to 6000 cycles.
  • Safety Features: Built-in BMS for secure charging/discharging.
  • Compatible: Works with various voltages, including 51.2V.

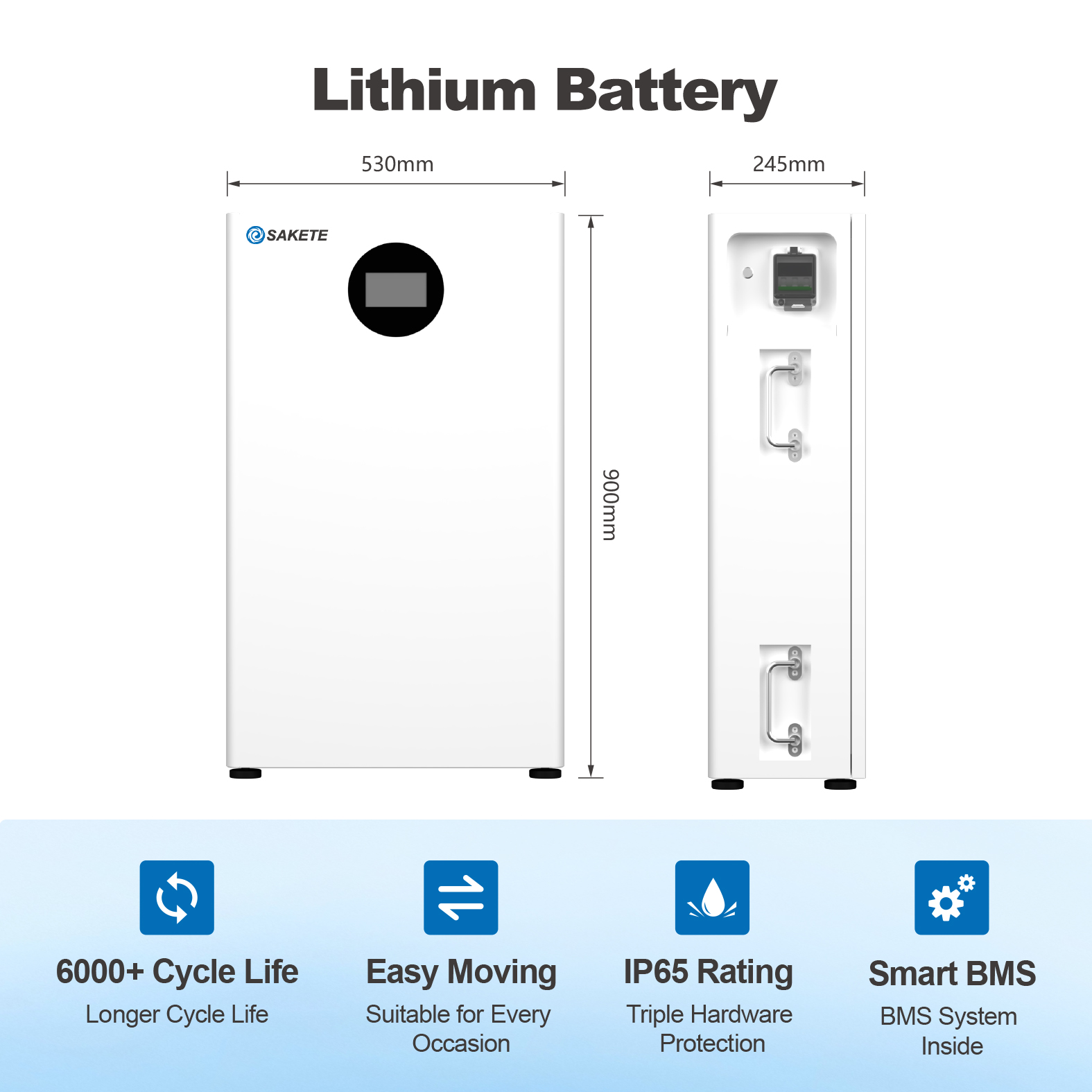

  • Compact Design: 530x900x245mm, 120kg.
Battery System
We are a leading supplier of solar panels, energy storage systems, and inverters, providing innovative and reliable renewable energy solutions with in-stock products and fast shipping.
Product Introduction
Intro 1
Intro 2
Intro 3
Intro 4
Technical Specifications
Module TypeLFP 16kVWh / LV
Nominal Capacity (at 25℃)16kWh
Usable Capacity (90%DOD)14.4kWh
Nominal Dis-/ Charge Power10kW
Peak Power (Only Discharge)11.6kW for 3 seconds
Constant Current (Only Discharge)200A
Operating Voltage Range43~58V
Nominal Voltage51.2Vd.c
Weight120kg
Dimensions (mm)530*900*245mm
CertificatesUL1973, UN38.3
Operating ConditionIndoor or outdoor
Operating Temperature ChargeFrom 0~60℃
Operating Temperature DischargeFrom -30~60℃
HumidityUp to 90% (non-condensing)
IP RatingIP 65
Warranty10 years
Life Span>15 years
Communication InterfaceCAN/RS485
Protection ModeTriple hardware protection
Battery ProtectionOver-current/Over-voltage/Short circuit/Under-voltage
Product Details

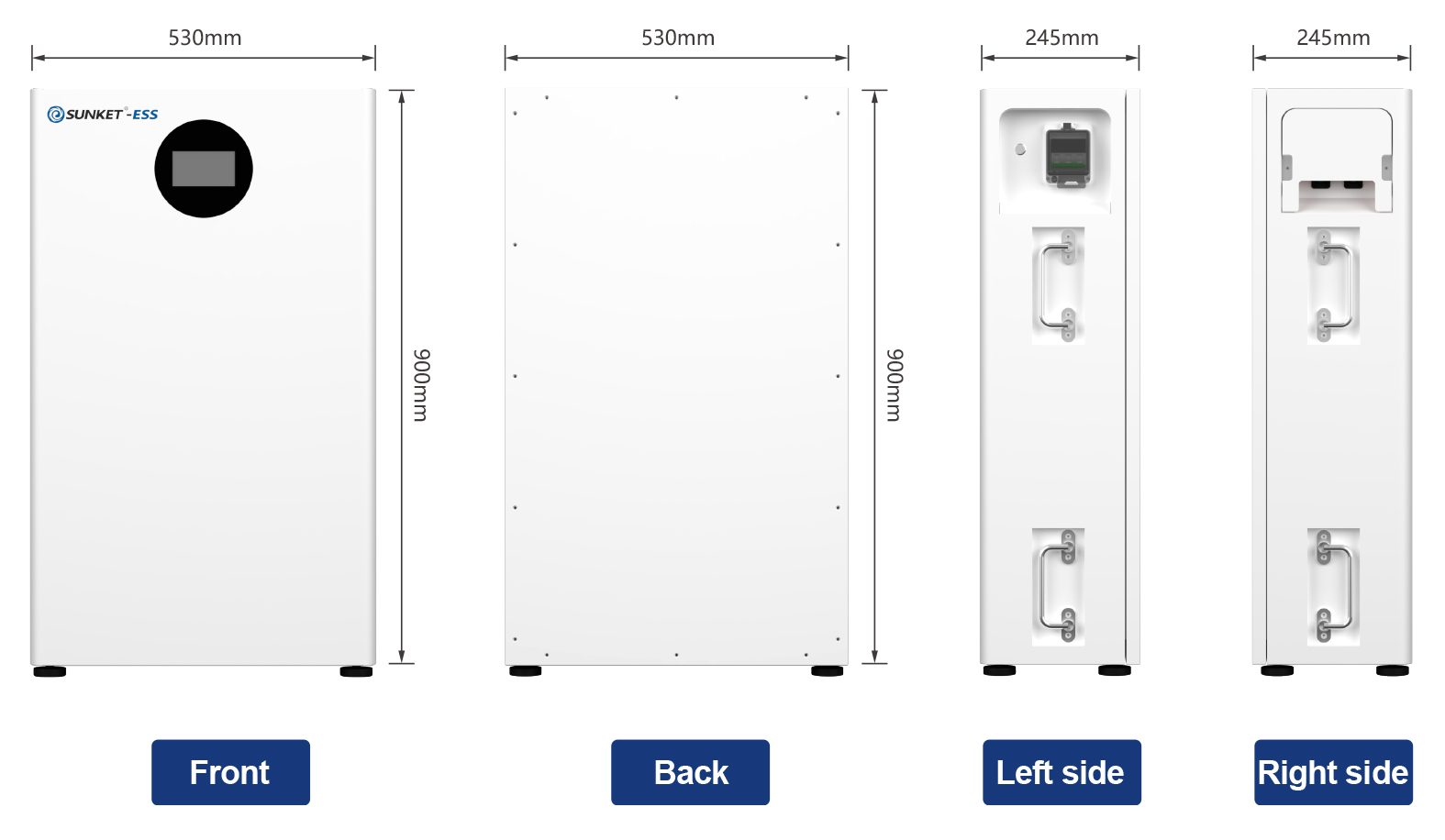

Detail 1

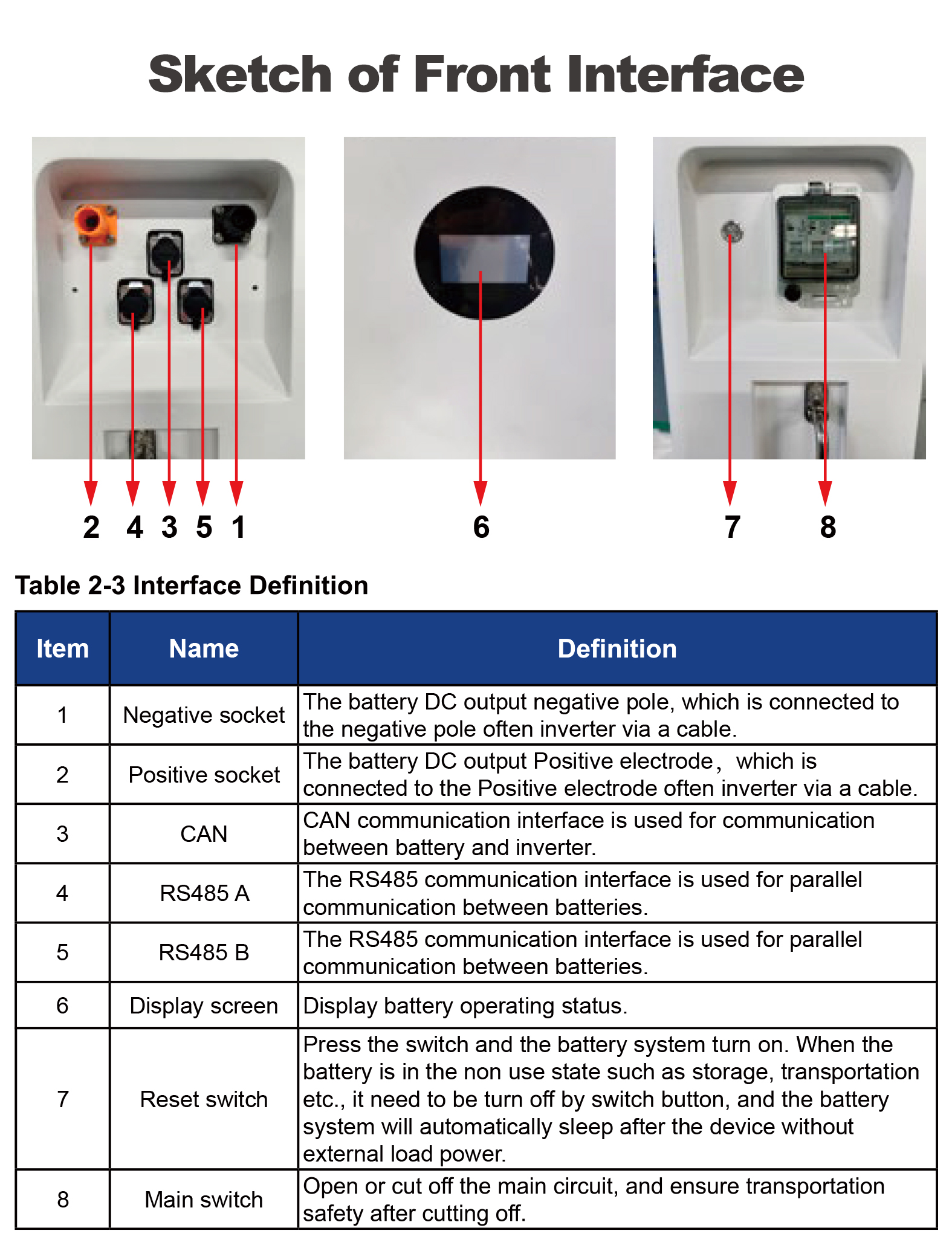

Detail 2

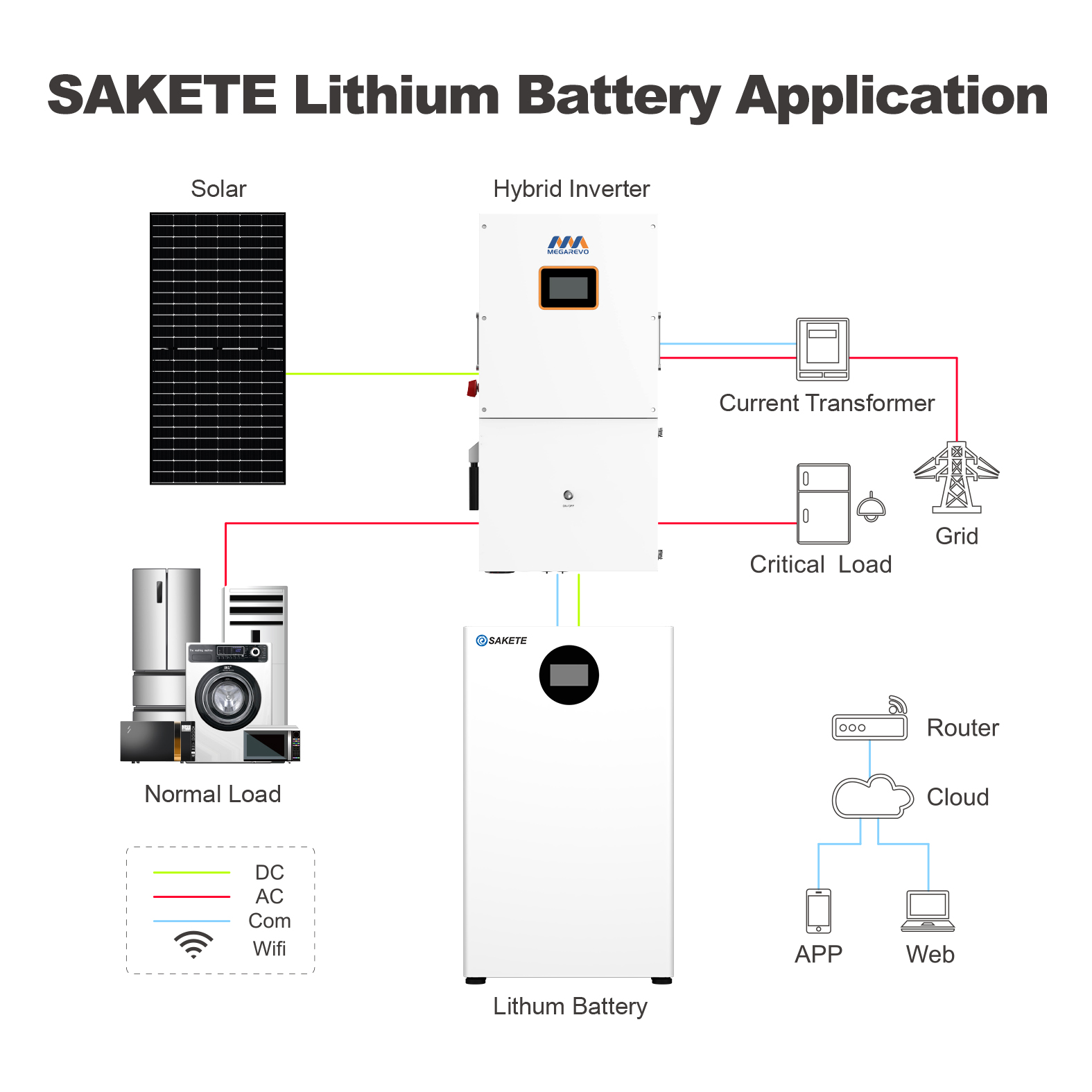

Working Principle

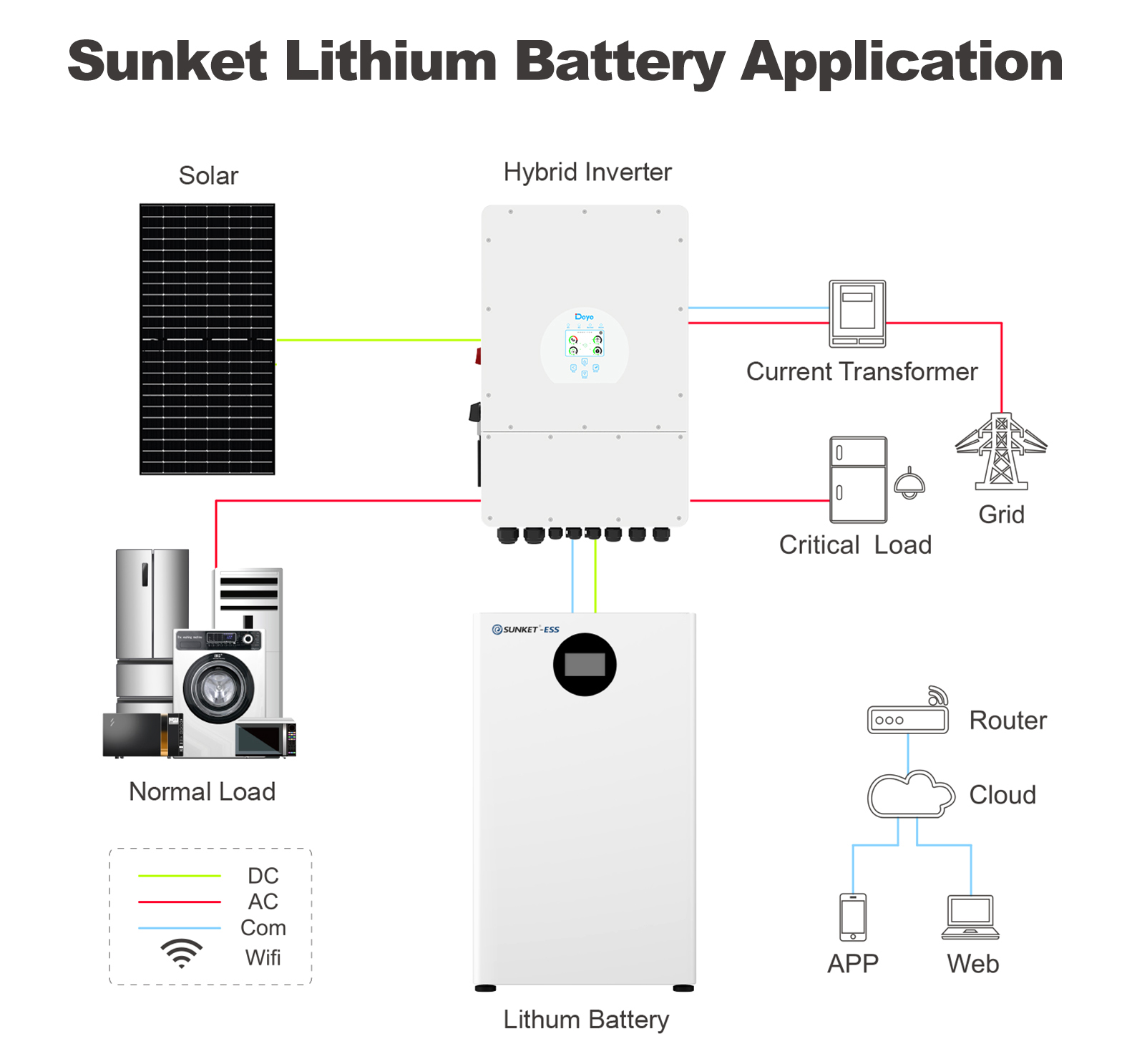

Working Principle 1

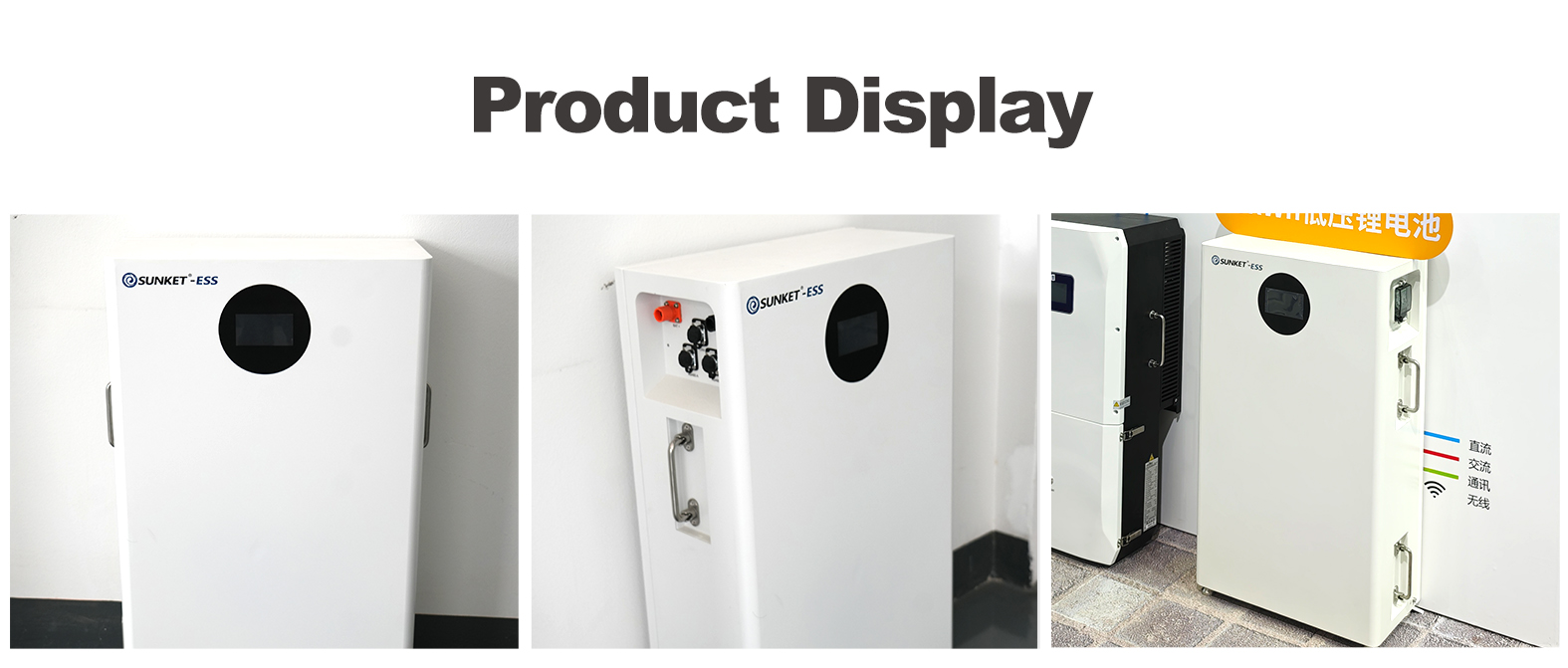

Working Principle 2
Compatible Inverter Brands
Brands 1
Brands 2
Frequently Asked Questions
What is the lifespan of the Sunket 16kWh Lithium Battery?
The battery features high-quality LiFePO4 cells with a cycle life of up to 6000 cycles and a total design life span of more than 15 years.
Can this battery be installed outdoors?
Yes, the system has an IP65 rating, making it suitable for both indoor and outdoor operating conditions.
Is the battery compatible with my existing inverter?
The battery supports CAN/RS485 communication interfaces and is compatible with a wide range of leading inverter brands in the market.
How many units can be connected in parallel?
You can connect a maximum of 4 units in parallel to expand your energy storage capacity.
What safety protections are built into the system?
The battery includes a built-in BMS (Battery Management System) with triple hardware protection against over-current, over-voltage, short circuits, and under-voltage.
What is the warranty period for this energy storage system?
This product comes with a comprehensive 10-year warranty for peace of mind.
